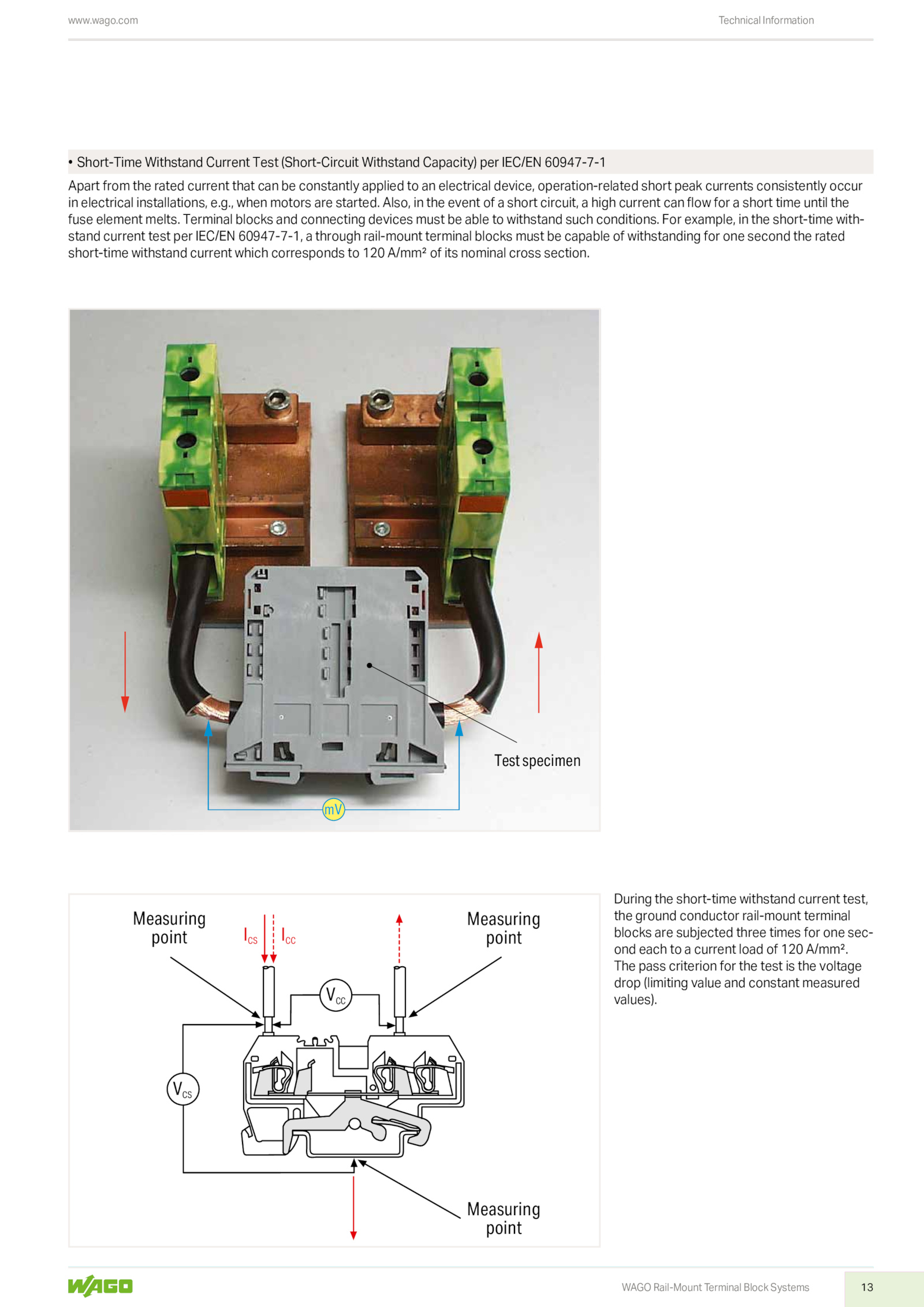

, when motors are started. Terminal blocks and connecting devices must able withstand such conditions.13 www.com mV Test specimen VCC VCS ICS ICC Measuring point Measuring point Measuring point WAGO Rail-Mount Terminal Block Systems Technical Information • Short-Time Withstand Current Test (Short-Circuit Withstand Capacity) per IEC/EN 60947-7-1 Apart from the rated current that can constantly applied electrical device, operation-related short peak currents consistently occur in electrical installations, e. For example, the short-time with- stand current test per IEC/EN 60947-7-1, through rail-mount terminal blocks must capable withstanding for one second the rated short-time withstand current which corresponds 120 A/mm² its nominal cross section. Also, the event short circuit, high current can flow for short time until the fuse element melts.g.wago. During the short-time withstand current test, the ground conductor rail-mount terminal blocks are subjected three times for one sec- ond each current load 120 A/mm². . The pass criterion for the test the voltage drop (limiting value and constant measured values)
