A/C Load
Represents the critical household loads powered through the
integration system. Supports
bidirectional flow.
RS485 Communication Used for data communication between system components.
Actual Meter (CT)
Monitors current flow for energy management and metering
purposes.)

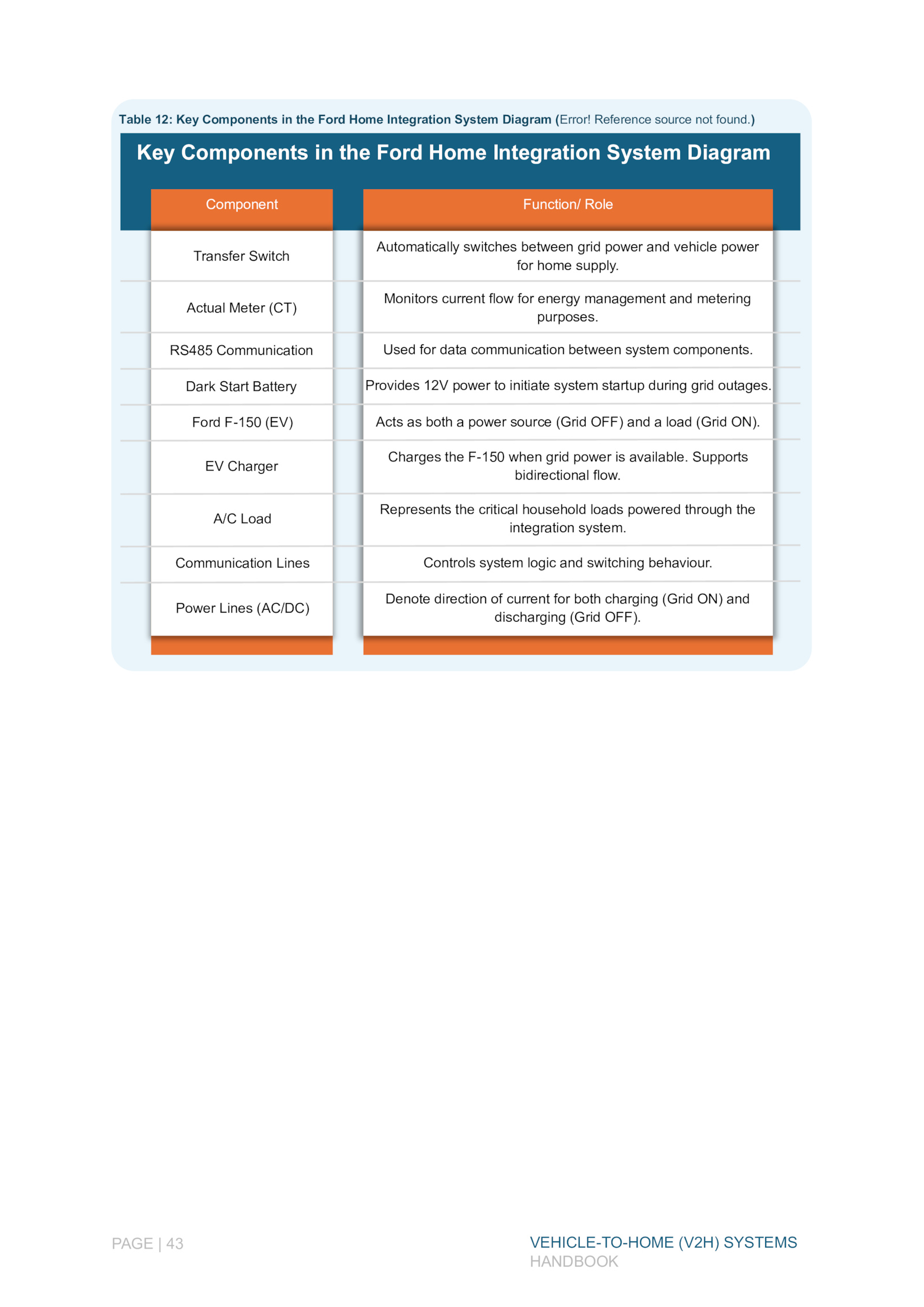

Key Components the Ford Home Integration System Diagram
Component Function/ Role
Transfer Switch
Automatically switches between grid power and vehicle power
for home supply.
Dark Start Battery Provides 12V power initiate system startup during grid outages.
Power Lines (AC/DC)
Denote direction current for both charging (Grid ON) and
discharging (Grid OFF).
EV Charger
Charges the F-150 when grid power available.
.
Ford F-150 (EV) Acts both power source (Grid OFF) and load (Grid ON).
Communication Lines Controls system logic and switching behaviour.PAGE VEHICLE-TO-HOME (V2H) SYSTEMS
HANDBOOK
Table 12: Key Components the Ford Home Integration System Diagram (Error! Reference source not found
