During power outage, the transfer switch
isolates the home from the grid and routes
power from the vehicle critical loads
through dedicated backup panel. Conduits
and wiring ensure secure electrical
connections between components, while
grounding and utility links maintain safety
and compliance. separates
high-priority and low-priority loads, with the
Load Management System (LSM)
coordinating control signals the EVSE
and energy storage controller.
.
2. backup
isolator ensures safety during grid
disconnection, while protective devices like
RCDs and MCBs safeguard the system.
In this configuration, the Ford Charge
Station Pro enables both charging and
discharging the vehicle.1 Schematic while using
vehicle storage

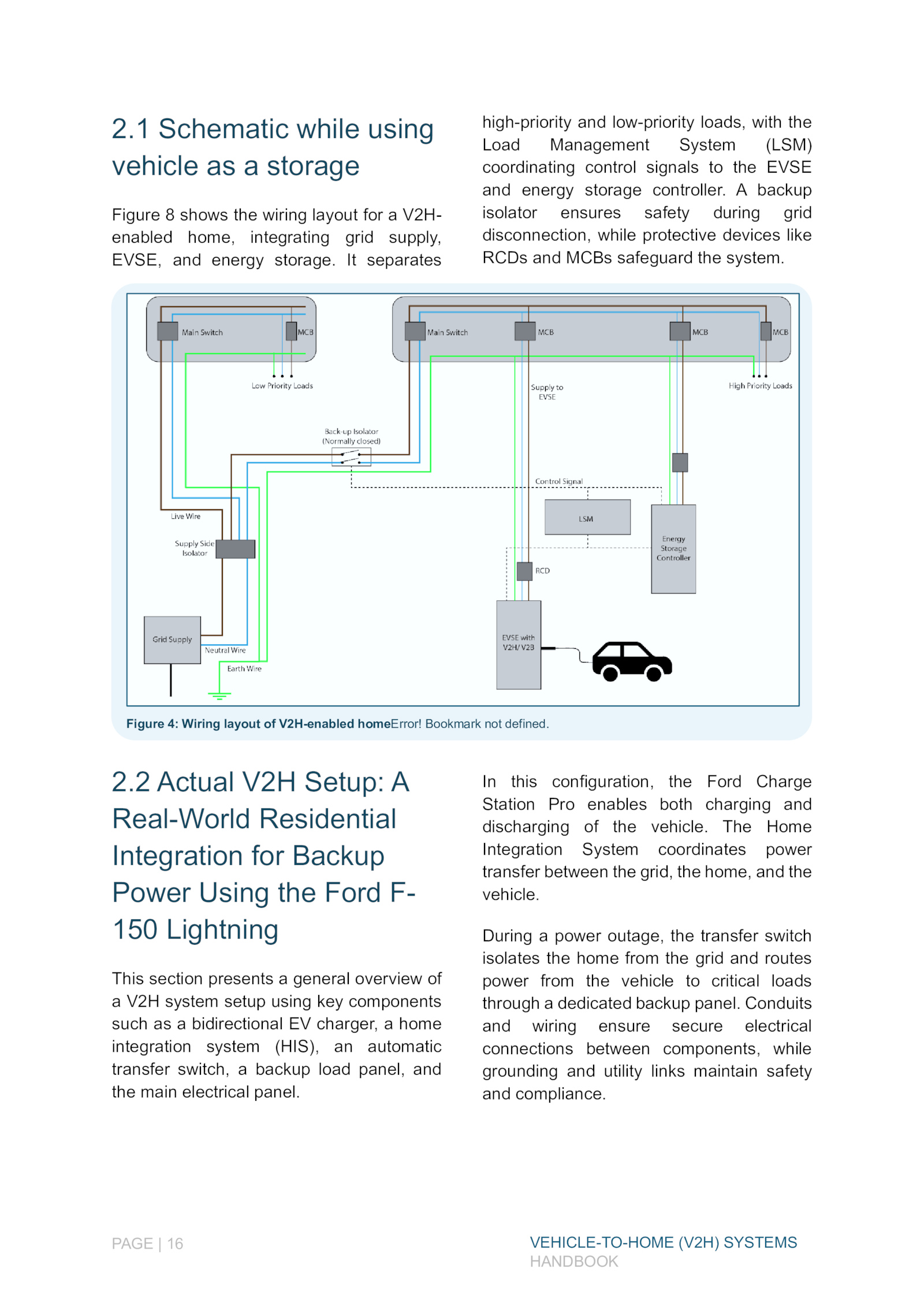

Figure shows the wiring layout for V2H-
enabled home, integrating grid supply,
EVSE, and energy storage. The Home
Integration System coordinates power
transfer between the grid, the home, and the
vehicle.
Figure Wiring layout V2H-enabled homeError! Bookmark not defined.2 Actual V2H Setup: A
Real-World Residential
Integration for Backup
Power Using the Ford F-
150 Lightning
This section presents general overview of
a V2H system setup using key components
such bidirectional charger, home
integration system (HIS), automatic
transfer switch, backup load panel, and
the main electrical panel.PAGE VEHICLE-TO-HOME (V2H) SYSTEMS
