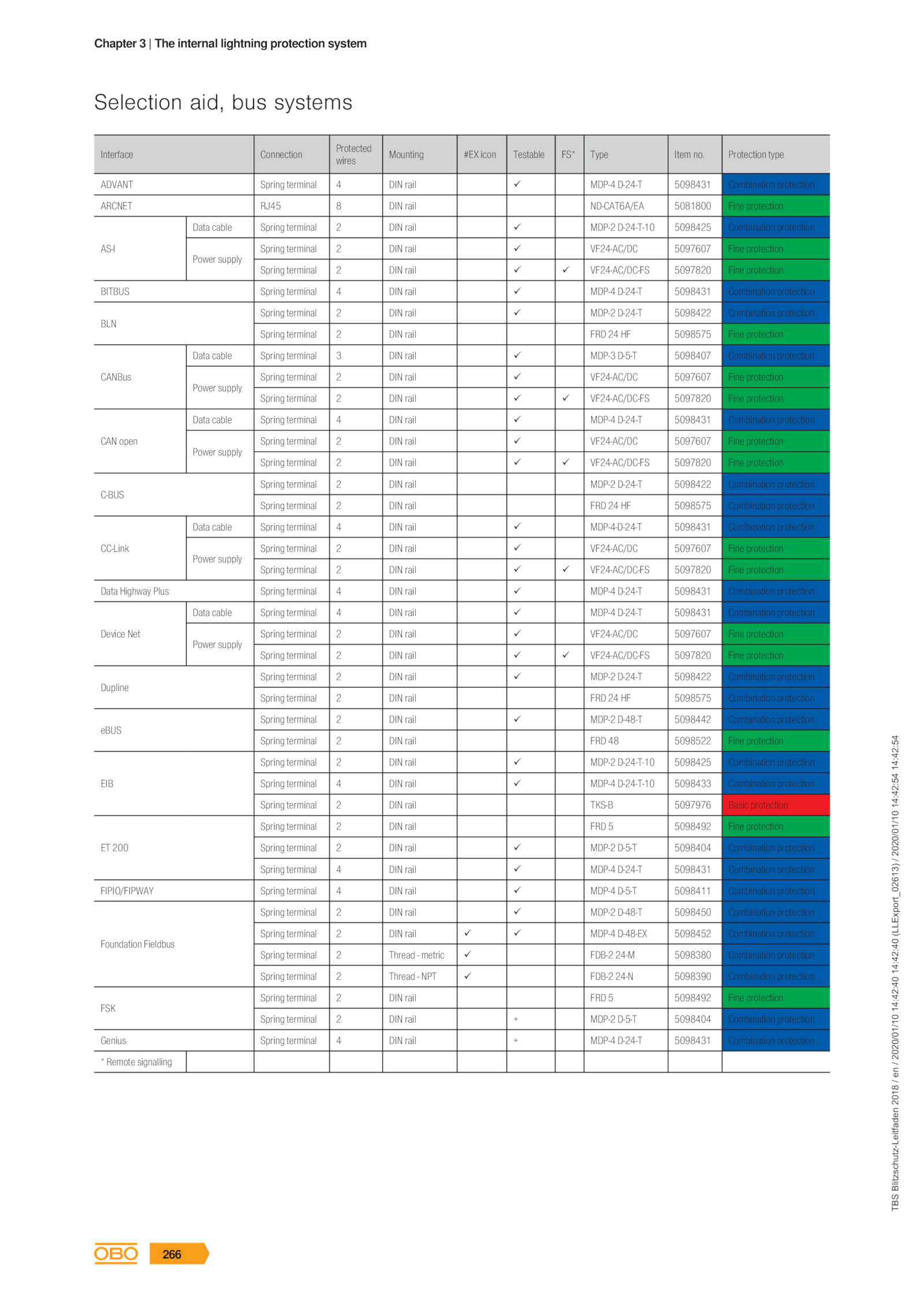

Selection aid, bus systems
Interface Connection
Protected
wires
Mounting #EX icon Testable FS* Type Item no. Protection type
ADVANT Spring terminal DIN rail MDP-4 D-24-T 5098431 Combination protection
ARCNET RJ45 DIN rail ND-CAT6A/EA 5081800 Fine protection
AS-I
Data cable Spring terminal DIN rail MDP-2 D-24-T-10 5098425 Combination protection
Power supply
Spring terminal DIN rail VF24-AC/DC 5097607 Fine protection
Spring terminal DIN rail VF24-AC/DC-FS 5097820 Fine protection
BITBUS Spring terminal DIN rail MDP-4 D-24-T 5098431 Combination protection
BLN
Spring terminal DIN rail MDP-2 D-24-T 5098422 Combination protection
Spring terminal DIN rail FRD 5098575 Fine protection
CANBus
Data cable Spring terminal DIN rail MDP-3 D-5-T 5098407 Combination protection
Power supply
Spring terminal DIN rail VF24-AC/DC 5097607 Fine protection
Spring terminal DIN rail VF24-AC/DC-FS 5097820 Fine protection
CAN open
Data cable Spring terminal DIN rail MDP-4 D-24-T 5098431 Combination protection
Power supply
Spring terminal DIN rail VF24-AC/DC 5097607 Fine protection
Spring terminal DIN rail VF24-AC/DC-FS 5097820 Fine protection
C-BUS
Spring terminal DIN rail MDP-2 D-24-T 5098422 Combination protection
Spring terminal DIN rail FRD 5098575 Combination protection
CC-Link
Data cable Spring terminal DIN rail MDP-4-D-24-T 5098431 Combination protection
Power supply
Spring terminal DIN rail VF24-AC/DC 5097607 Fine protection
Spring terminal DIN rail VF24-AC/DC-FS 5097820 Fine protection
Data Highway Plus Spring terminal DIN rail MDP-4 D-24-T 5098431 Combination protection
Device Net
Data cable Spring terminal DIN rail MDP-4 D-24-T 5098431 Combination protection
Power supply
Spring terminal DIN rail VF24-AC/DC 5097607 Fine protection
Spring terminal DIN rail VF24-AC/DC-FS 5097820 Fine protection
Dupline
Spring terminal DIN rail MDP-2 D-24-T 5098422 Combination protection
Spring terminal DIN rail FRD 5098575 Combination protection
eBUS
Spring terminal DIN rail MDP-2 D-48-T 5098442 Combination protection
Spring terminal DIN rail FRD 5098522 Fine protection
EIB
Spring terminal DIN rail MDP-2 D-24-T-10 5098425 Combination protection
Spring terminal DIN rail MDP-4 D-24-T-10 5098433 Combination protection
Spring terminal DIN rail TKS-B 5097976 Basic protection
ET 200
Spring terminal DIN rail FRD 5098492 Fine protection
Spring terminal DIN rail MDP-2 D-5-T 5098404 Combination protection
Spring terminal DIN rail MDP-4 D-24-T 5098431 Combination protection
FIPIO/FIPWAY Spring terminal DIN rail MDP-4 D-5-T 5098411 Combination protection
Foundation Fieldbus
Spring terminal DIN rail MDP-2 D-48-T 5098450 Combination protection
Spring terminal DIN rail MDP-4 D-48-EX 5098452 Combination protection
Spring terminal Thread metric FDB-2 24-M 5098380 Combination protection
Spring terminal Thread NPT FDB-2 24-N 5098390 Combination protection
FSK
Spring terminal DIN rail FRD 5098492 Fine protection
Spring terminal DIN rail MDP-2 D-5-T 5098404 Combination protection
Genius Spring terminal DIN rail MDP-4 D-24-T 5098431 Combination protection
* Remote signalling
