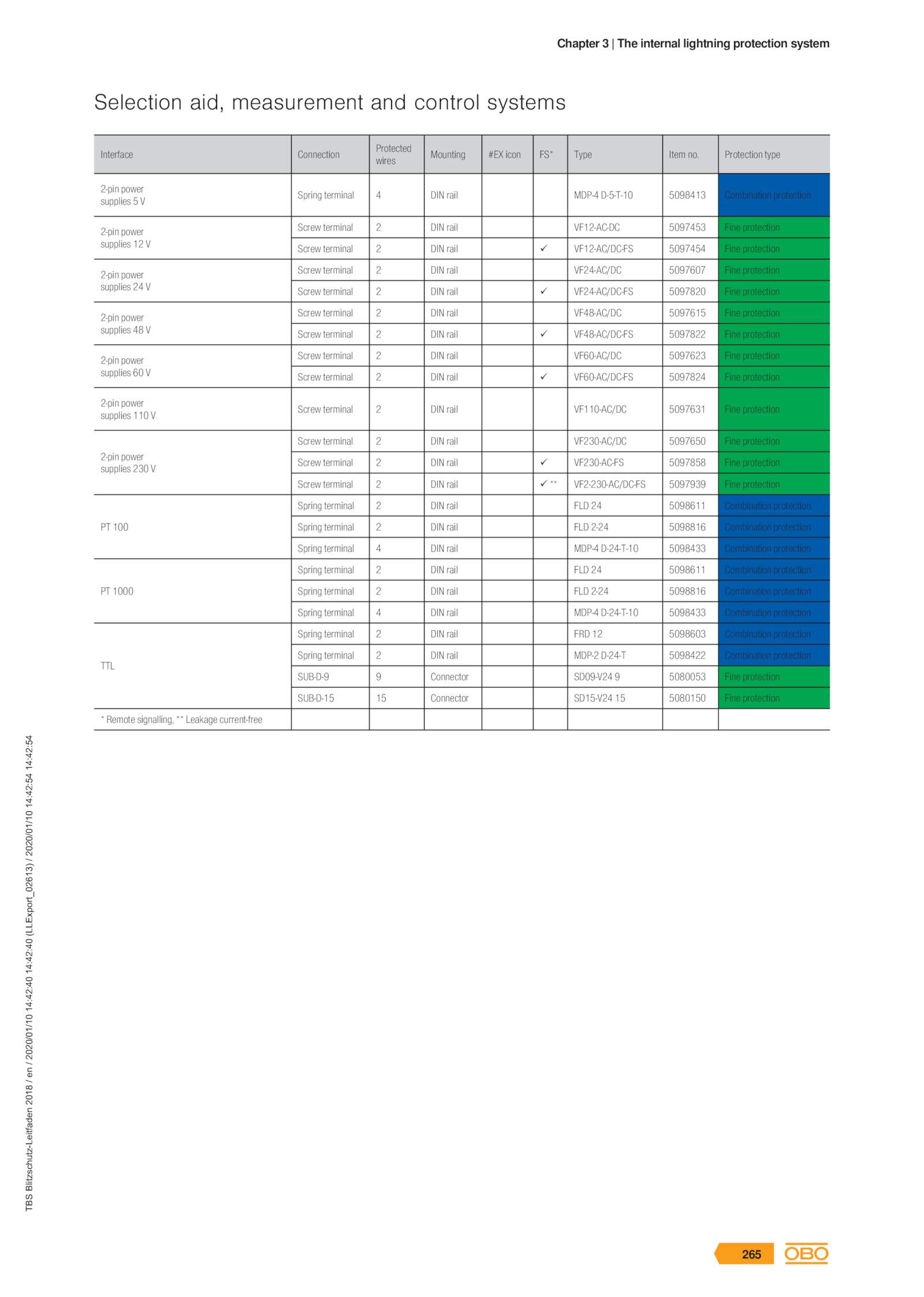

Selection aid, measurement and control systems
Interface Connection
Protected
wires
Mounting #EX icon FS* Type Item no. Protection type
2-pin power
supplies V
Spring terminal DIN rail MDP-4 D-5-T-10 5098413 Combination protection
2-pin power
supplies V
Screw terminal DIN rail VF12-AC-DC 5097453 Fine protection
Screw terminal DIN rail VF12-AC/DC-FS 5097454 Fine protection
2-pin power
supplies V
Screw terminal DIN rail VF24-AC/DC 5097607 Fine protection
Screw terminal DIN rail VF24-AC/DC-FS 5097820 Fine protection
2-pin power
supplies V
Screw terminal DIN rail VF48-AC/DC 5097615 Fine protection
Screw terminal DIN rail VF48-AC/DC-FS 5097822 Fine protection
2-pin power
supplies V
Screw terminal DIN rail VF60-AC/DC 5097623 Fine protection
Screw terminal DIN rail VF60-AC/DC-FS 5097824 Fine protection
2-pin power
supplies 110 V
Screw terminal DIN rail VF110-AC/DC 5097631 Fine protection
2-pin power
supplies 230 V
Screw terminal DIN rail VF230-AC/DC 5097650 Fine protection
Screw terminal DIN rail VF230-AC-FS 5097858 Fine protection
Screw terminal DIN rail VF2-230-AC/DC-FS 5097939 Fine protection
PT 100
Spring terminal DIN rail FLD 5098611 Combination protection
Spring terminal DIN rail FLD 2-24 5098816 Combination protection
Spring terminal DIN rail MDP-4 D-24-T-10 5098433 Combination protection
PT 1000
Spring terminal DIN rail FLD 5098611 Combination protection
Spring terminal DIN rail FLD 2-24 5098816 Combination protection
Spring terminal DIN rail MDP-4 D-24-T-10 5098433 Combination protection
TTL
Spring terminal DIN rail FRD 5098603 Combination protection
Spring terminal DIN rail MDP-2 D-24-T 5098422 Combination protection
SUB-D-9 Connector SD09-V24 5080053 Fine protection
SUB-D-15 Connector SD15-V24 5080150 Fine protection
* Remote signalling, Leakage current-free
