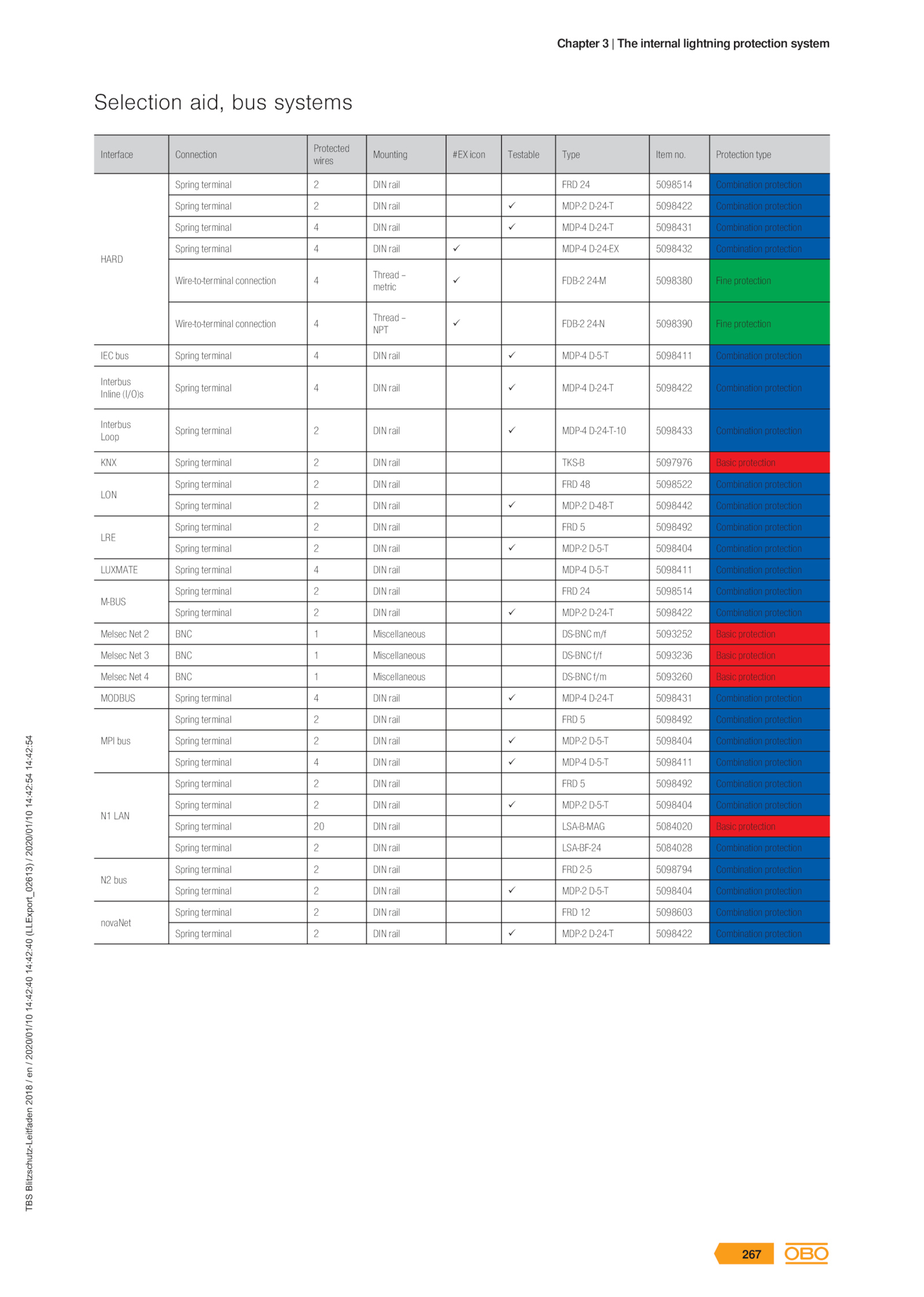

Selection aid, bus systems
Interface Connection
Protected
wires
Mounting #EX icon Testable Type Item no. Protection type
HARD
Spring terminal DIN rail FRD 5098514 Combination protection
Spring terminal DIN rail MDP-2 D-24-T 5098422 Combination protection
Spring terminal DIN rail MDP-4 D-24-T 5098431 Combination protection
Spring terminal DIN rail MDP-4 D-24-EX 5098432 Combination protection
Wire-to-terminal connection 4
Thread –
metric
FDB-2 24-M 5098380 Fine protection
Wire-to-terminal connection 4
Thread –
NPT
FDB-2 24-N 5098390 Fine protection
IEC bus Spring terminal DIN rail MDP-4 D-5-T 5098411 Combination protection
Interbus
Inline (I/O)s
Spring terminal DIN rail MDP-4 D-24-T 5098422 Combination protection
Interbus
Loop
Spring terminal DIN rail MDP-4 D-24-T-10 5098433 Combination protection
KNX Spring terminal DIN rail TKS-B 5097976 Basic protection
LON
Spring terminal DIN rail FRD 5098522 Combination protection
Spring terminal DIN rail MDP-2 D-48-T 5098442 Combination protection
LRE
Spring terminal DIN rail FRD 5098492 Combination protection
Spring terminal DIN rail MDP-2 D-5-T 5098404 Combination protection
LUXMATE Spring terminal DIN rail MDP-4 D-5-T 5098411 Combination protection
M-BUS
Spring terminal DIN rail FRD 5098514 Combination protection
Spring terminal DIN rail MDP-2 D-24-T 5098422 Combination protection
Melsec Net BNC Miscellaneous DS-BNC m/f 5093252 Basic protection
Melsec Net BNC Miscellaneous DS-BNC f/f 5093236 Basic protection
Melsec Net BNC Miscellaneous DS-BNC f/m 5093260 Basic protection
MODBUS Spring terminal DIN rail MDP-4 D-24-T 5098431 Combination protection
MPI bus
Spring terminal DIN rail FRD 5098492 Combination protection
Spring terminal DIN rail MDP-2 D-5-T 5098404 Combination protection
Spring terminal DIN rail MDP-4 D-5-T 5098411 Combination protection
N1 LAN
Spring terminal DIN rail FRD 5098492 Combination protection
Spring terminal DIN rail MDP-2 D-5-T 5098404 Combination protection
Spring terminal DIN rail LSA-B-MAG 5084020 Basic protection
Spring terminal DIN rail LSA-BF-24 5084028 Combination protection
N2 bus
Spring terminal DIN rail FRD 2-5 5098794 Combination protection
Spring terminal DIN rail MDP-2 D-5-T 5098404 Combination protection
novaNet
Spring terminal DIN rail FRD 5098603 Combination protection
Spring terminal DIN rail MDP-2 D-24-T 5098422 Combination protection
