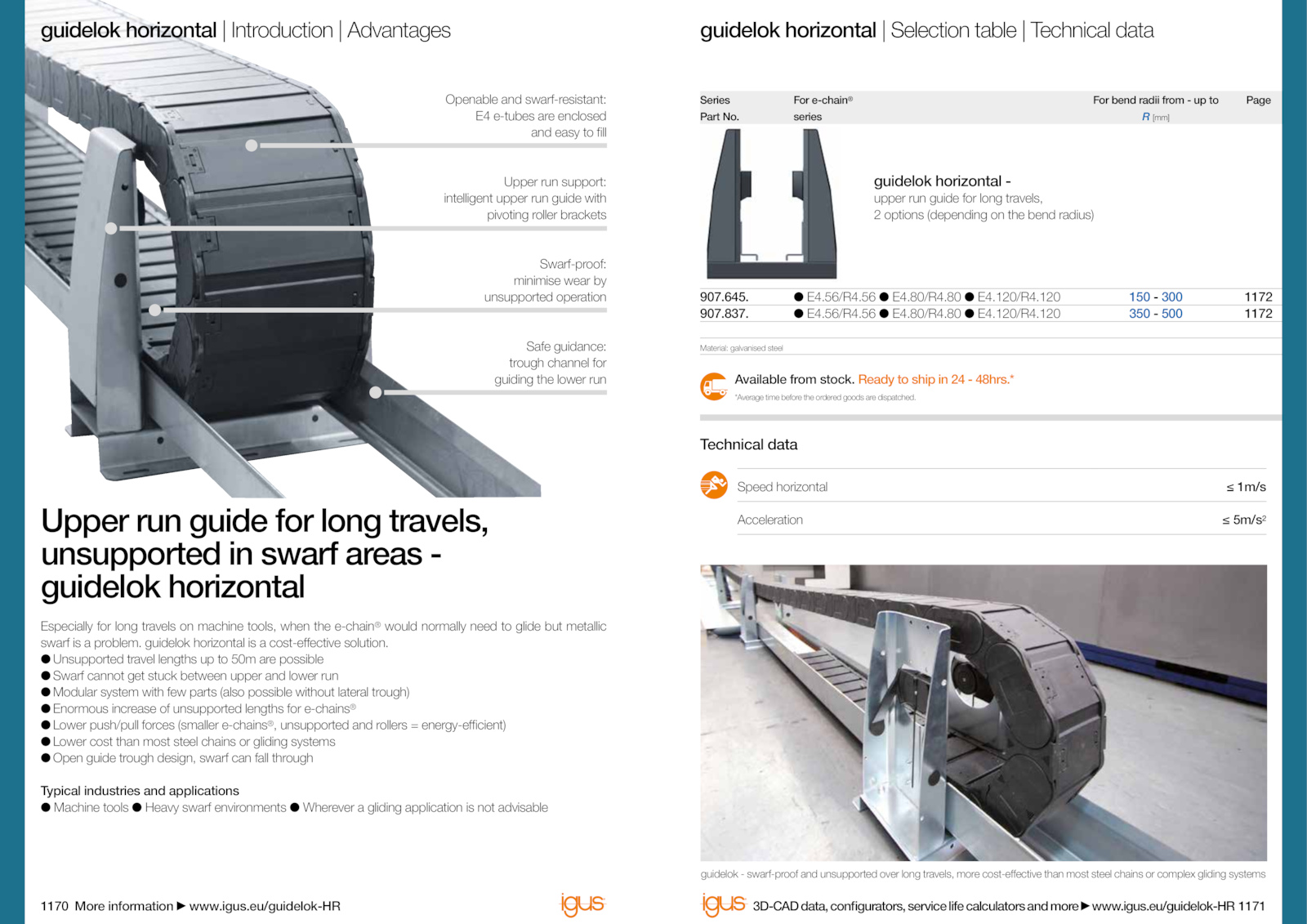

guidelok horizontal Introduction Advantages
Upper run support:
intelligent upper run guide with
pivoting roller brackets
Openable and swarf-resistant:
E4 e-tubes are enclosed
and easy fill
Upper run guide for long travels,
unsupported swarf areas -
guidelok horizontal
Especially for long travels machine tools, when the e-chain® would normally need glide but metallic
swarf problem.eu/guidelok-HR
Speed horizontal 1m/s
Acceleration 5m/s2
Available from stock.56 E4.igus. E4.56/R4.igus.*
*Average time before the ordered goods are dispatched.80 E4.56/R4.56 E4.[mm]
907.837.80/R4.645.
Technical data
guidelok swarf-proof and unsupported over long travels, more cost-effective than most steel chains complex gliding systems
Series
Part No.80 E4. guidelok horizontal cost-effective solution.120 350 500 1172
1170 1171
More information www.120/R4.
For e-chain®
series
For bend radii from Page
guidelok horizontal -
upper run guide for long travels,
2 options (depending the bend radius)
Material: galvanised steel
.120 150 300 1172
907.80/R4.
● Unsupported travel lengths 50m are possible
● Swarf cannot get stuck between upper and lower run
● Modular system with few parts (also possible without lateral trough)
● Enormous increase unsupported lengths for e-chains®
● Lower push/pull forces (smaller e-chains®, unsupported and rollers energy-efficient)
● Lower cost than most steel chains gliding systems
● Open guide trough design, swarf can fall through
Typical industries and applications
● Machine tools Heavy swarf environments Wherever gliding application not advisable
Swarf-proof:
minimise wear by
unsupported operation
Safe guidance:
trough channel for
guiding the lower run
