Find video online
www.igus.eu/e-rib
.
If necessary, cut off thicker end
sectionandanyexcesslengthand
place the two mounting brackets
on the side plates.eu/e-rib
Tests from the igus® laboratory: The igus® e-rib (pictured the right) stabilises the corrugated hose significantly sideways
movement during acceleration deceleration
The e-rib stabilises the corrugated hose that can only move one direction.
Any excess length can easily be
cut off.eu/e-rib

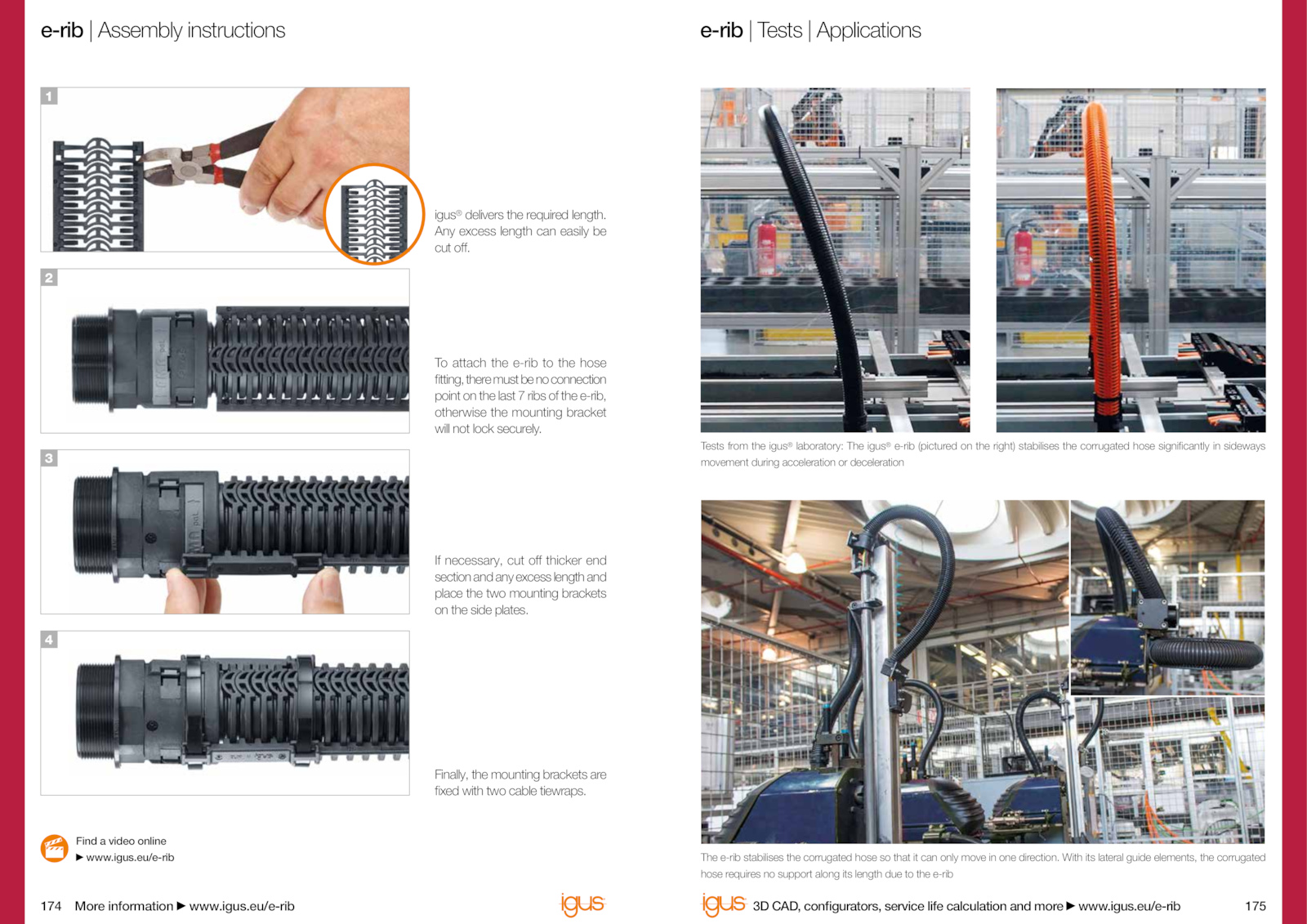

e-rib Assembly instructions e-rib Tests Applications
3D CAD, configurators, service life calculation and more www.
More information www. With its lateral guide elements, the corrugated
hose requires support along its length due the e-rib
igus® delivers the required length.
To attach the e-rib the hose
fitting,theremustbenoconnection
point the last ribs the e-rib,
otherwise the mounting bracket
will not lock securely.
Finally, the mounting brackets are
fixed with two cable tiewraps.igus.igus
