No friction between
upper run and
lower run
The upper run and lower run the flizz® e-chain® are separated from each
other, which means less friction and less energy used when the e-chain®
moves
Winglets hold the e-chain® securely the guidance channel
Plastic springs cause the e-chain® roll along gently the flizz® channel,
as result noise significantly reduced
Integrated strain relief the guide carriage for secure fixation the cables
Universal connection possible due three T-slots
Attachment the e-chain® roller carriage the moving end
Reverse travel: double filling two independent travels possible
3D-CAD data, configurators, service life calculators and more www. Long travels need
larger, stronger e-chains®
Today micro flizz®: Small e-chains® self-guiding the guide
channel.eu/microflizz

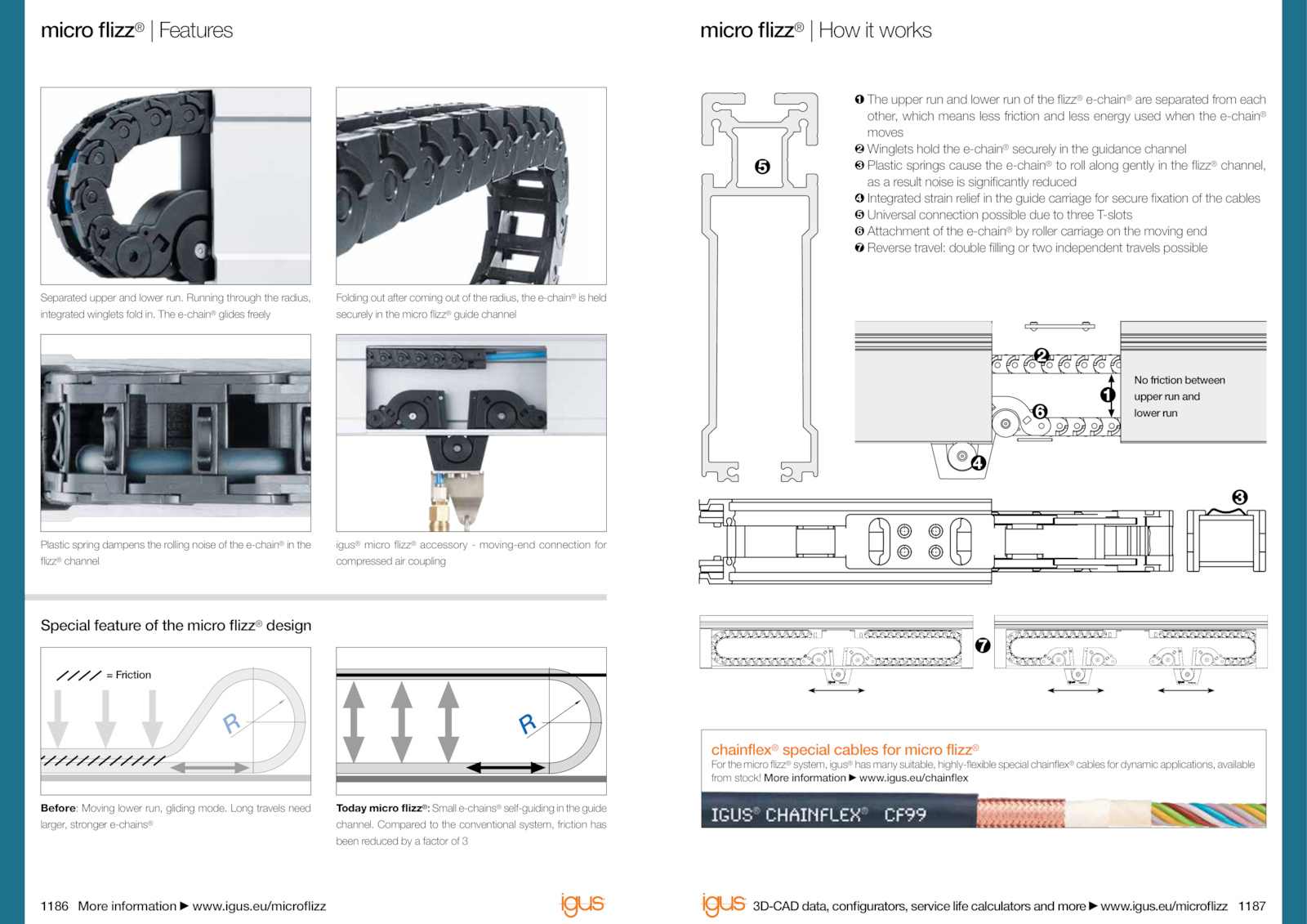

micro flizz® How works
chainflex® special cables for micro flizz®
For the micro flizz® system, igus® has many suitable, highly-flexible special chainflex® cables for dynamic applications, available
from stock! More information www.eu/microflizz
= Friction
micro flizz® Features
Separated upper and lower run. Running through the radius,
integrated winglets fold in. Compared the conventional system, friction has
been reduced factor 3
Special feature the micro flizz® design
.1186 1187
R R
R
R R
More information www. The e-chain® glides freely
Folding out after coming out the radius, the e-chain® held
securely the micro flizz® guide channel
Plastic spring dampens the rolling noise the e-chain® the
flizz® channel
igus® micro flizz® accessory moving-end connection for
compressed air coupling
Before: Moving lower run, gliding mode
