RSE.
● Simple, linear retraction without sags,
fibre rods, guide rollers
● For series TRC·TRE·TRCF with ø-index
40-100mm
● Special linear guide with small bend
radii
● 490mm retraction length
● Space-saving and cost-effective
● Maintenance-free drylin® linear unit
Compact
retraction
system -
triflex® RSE and
RSEC linear
Special linear guide with
no small bend radii
Simple, linear retraction without
sags, fibre rods, guide rollers
Up 490mm retraction length
with triflex® RSE linear
Maintenance-free igus®
drylin® linear unit
Custom connection possibilities
using adapter consoles
For TRC·TRE·TRCF series
with index 40-100mm
(please order matching
e-chain® separately)
Cost-effective
Compact design,
no loops

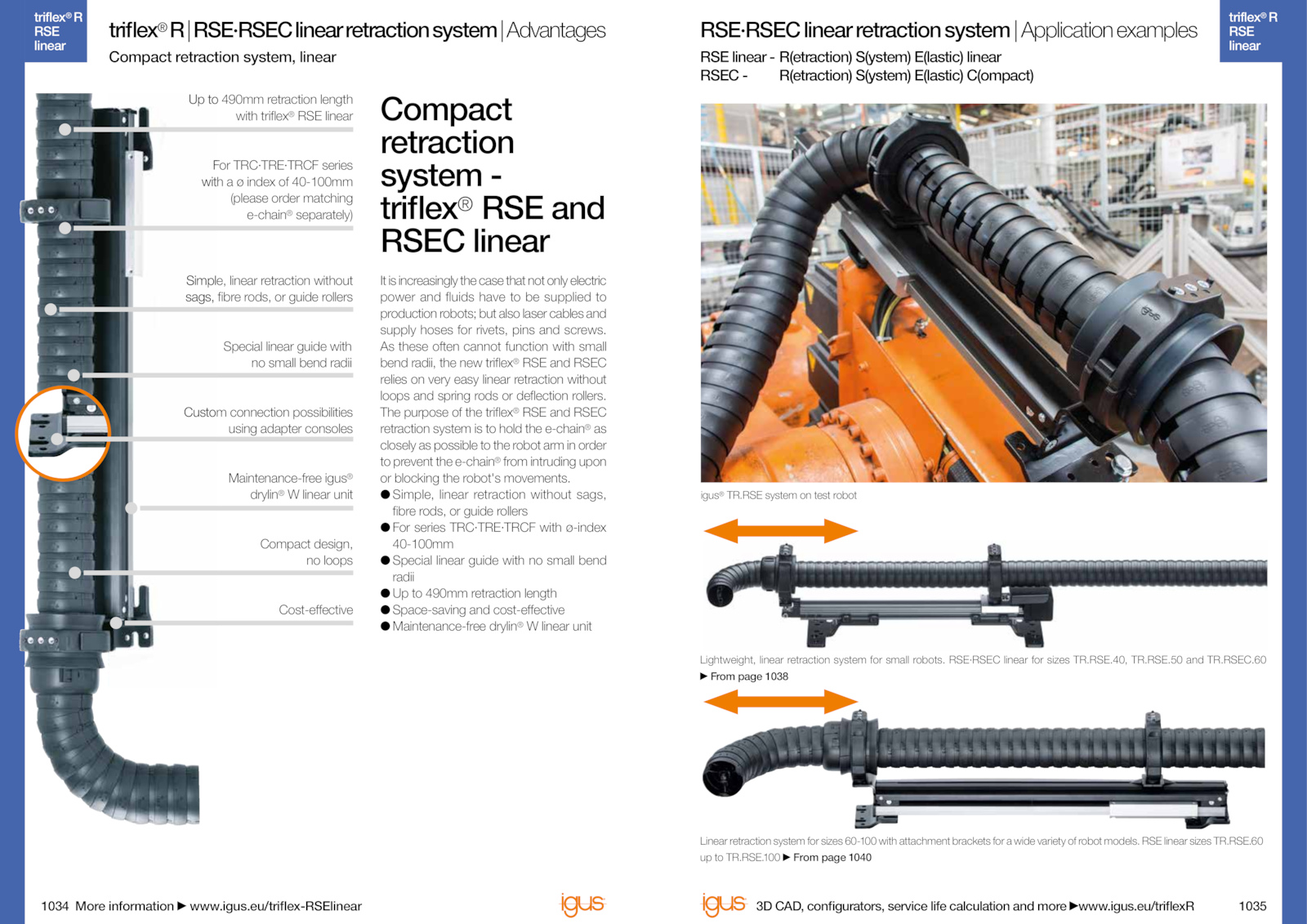

igus® TR.RSEC. RSE linear sizes TR.eu/triflexR
triflex®R|RSE·RSEClinearretractionsystem|Advantages
Compact retraction system, linear
RSE·RSEClinearretractionsystem|Applicationexamples
RSE linear R(etraction) S(ystem) E(lastic) linear
RSEC R(etraction) S(ystem) E(lastic) C(ompact)
Itisincreasinglythecasethatnotonlyelectric
power and fluids have supplied to
production robots; but also laser cables and
supply hoses for rivets, pins and screws.60
up TR.1034 1035
triflex® R
RSE
linear
triflex® R
RSE
linear
More information www.eu/triflex-RSElinear CAD, configurators, service life calculation and more www.
As these often cannot function with small
bend radii, the new triflex® RSE and RSEC
relies very easy linear retraction without
loops and spring rods deflection rollers.igus.
The purpose the triflex® RSE and RSEC
retraction system hold the e-chain® as
closely possible the robot arm order
to prevent the e-chain® from intruding upon
or blocking the robot's movements.igus. RSE·RSEC linear for sizes TR.50 and TR.RSE system test robot
Lightweight, linear retraction system for small robots.40, TR.100 From page 1040
.60
From page 1038
Linear retraction system for sizes 60-100 with attachment brackets for wide variety robot models.RSE.RSE.RSE
