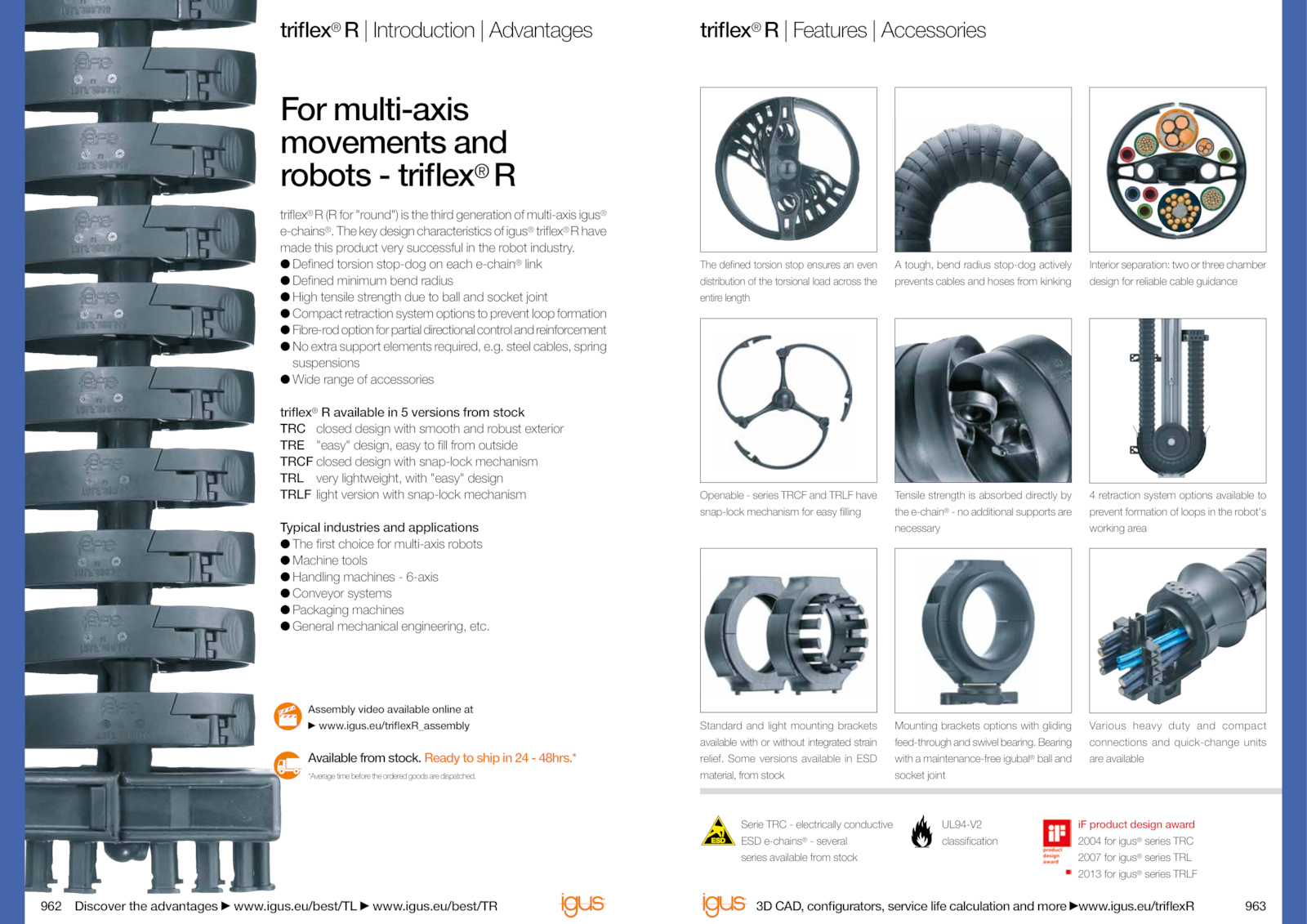

For multi-axis
movements and
robots triflex® R
A tough, bend radius stop-dog actively
prevents cables and hoses from kinking
The defined torsion stop ensures even
distribution the torsional load across the
entire length
Interior separation: two three chamber
design for reliable cable guidance
3D CAD, configurators, service life calculation and more www.
Assembly video available online at
www. The key design characteristics igus® triflex® have
made this product very successful the robot industry.igus.eu/best/TL www.
● Defined torsion stop-dog each e-chain® link
● Defined minimum bend radius
● High tensile strength due ball and socket joint
● Compact retraction system options prevent loop formation
● Fibre-rodoptionforpartialdirectionalcontrolandreinforcement
● extra support elements required, e.962 963
Available from stock.eu/best/TR
triflex® for "round") the third generation multi-axis igus®
e-chains®.*
*Average time before the ordered goods are dispatched. Some versions available ESD
material, from stock
Various heavy duty and compact
connections and quick-change units
are available
Mounting brackets options with gliding
feed-through and swivel bearing.eu/triflexR_assembly
Discover the advantages www.g.eu/triflexR
Tensile strength absorbed directly by
the e-chain® additional supports are
necessary
Openable series TRCF and TRLF have
snap-lock mechanism for easy filling
Standard and light mounting brackets
available with without integrated strain
relief. steel cables, spring
suspensions
● Wide range accessories
triflex® available versions from stock
TRC closed design with smooth and robust exterior
TRE "easy" design, easy fill from outside
TRCF closed design with snap-lock mechanism
TRL very lightweight, with "easy" design
TRLF light version with snap-lock mechanism
Typical industries and applications
● The first choice for multi-axis robots
● Machine tools
● Handling machines 6-axis
● Conveyor systems
● Packaging machines
● General mechanical engineering, etc. Bearing
with maintenance-free igubal® ball and
socket joint
4 retraction system options available to
prevent formation loops the robot's
working area
Serie TRC electrically conductive
ESD e-chains® several
series available from stock
UL94-V2
classification
iF product design award
2004 for igus® series TRC
2007 for igus® series TRL
2013 for igus® series TRLF
triflex® Introduction Advantages triflex® Features Accessories
