≤m
≤ [m/s]
1172
1178
1188
80 81
Product description
and benefits
Suitable industries
and applications
Travel
length
Speed Price
index
Page
guidelok horizontal upper run guide, unsupported swarf areas
Upper run guide
● Unsupported travel lengths 50m are possible
● Swarf cannot get stuck between upper and lower run
● Modular system with few parts (also possible without lateral trough)
● Enormous increase unsupported lengths for e-chains®
● Lower push/pull forces (smaller e-chains®, unsupported and rollers energy-efficient)
● Lower cost than most steel chains gliding systems
● Open guide trough design, swarf can fall through
● Machine tools 1
● Heavy swarf environments
● Wherever gliding application not recommended
basic flizz® cost-effective, enclosed solution for long travels
Enclosed guide
● Low-maintenance system for travel lengths 100m
● Protection against weather and dirt exposure
● Cost-effective, fully enclosed complete system
● Standardised and modular design
● Easy installation using bracket with different mounting options
● Cable lengths 50% shorter than festoons, low-profile installation
● Cables are guided with defined bend radius tensile forces are absorbed the e-chain®
● Cables cannot tangle get damaged
● slip ring contact (as with cable reels)
● Cables hoses can easily retrofitted required
● Reduce power costs directly driven the scraper
● Wastewater and sewage treatment plants 100 10
● Longitudinal scrapers
● Sand traps
● Grease traps
● Wastewater treatment plants
● Electroplating facilities
● Cranes
● Plant construction
● River locks
micro flizz® compact, enclosed solution for long travels
e-chains® aluminium profiles
● Maintenance-free, compact, quiet and cost-effective complete
system the alternative busbar systems
● Easy clean
● particle pollution due abrasion
● Quiet, lubrication-free, and easy install
● Operating speeds 6m/s high accelerations
● Data rates 10Gbit/s.eu
.eu/the-chain CAD, configurators, service life calculation and more www.eu/finder www. Safely guides FOC and bus cables
● Travel lengths 100m
● Can installed horizontally and vertically
● Low space requirement
● sizes available
● Storage and retrieval units 100 6
● Indoor cranes
● Industrial gates
● Workplace equipment
● Wastewater and sewage treatment plants
● Camera systems
● Sliding doors
● Operator panels
● Measuring systems
● Studio equipment
● Material handling

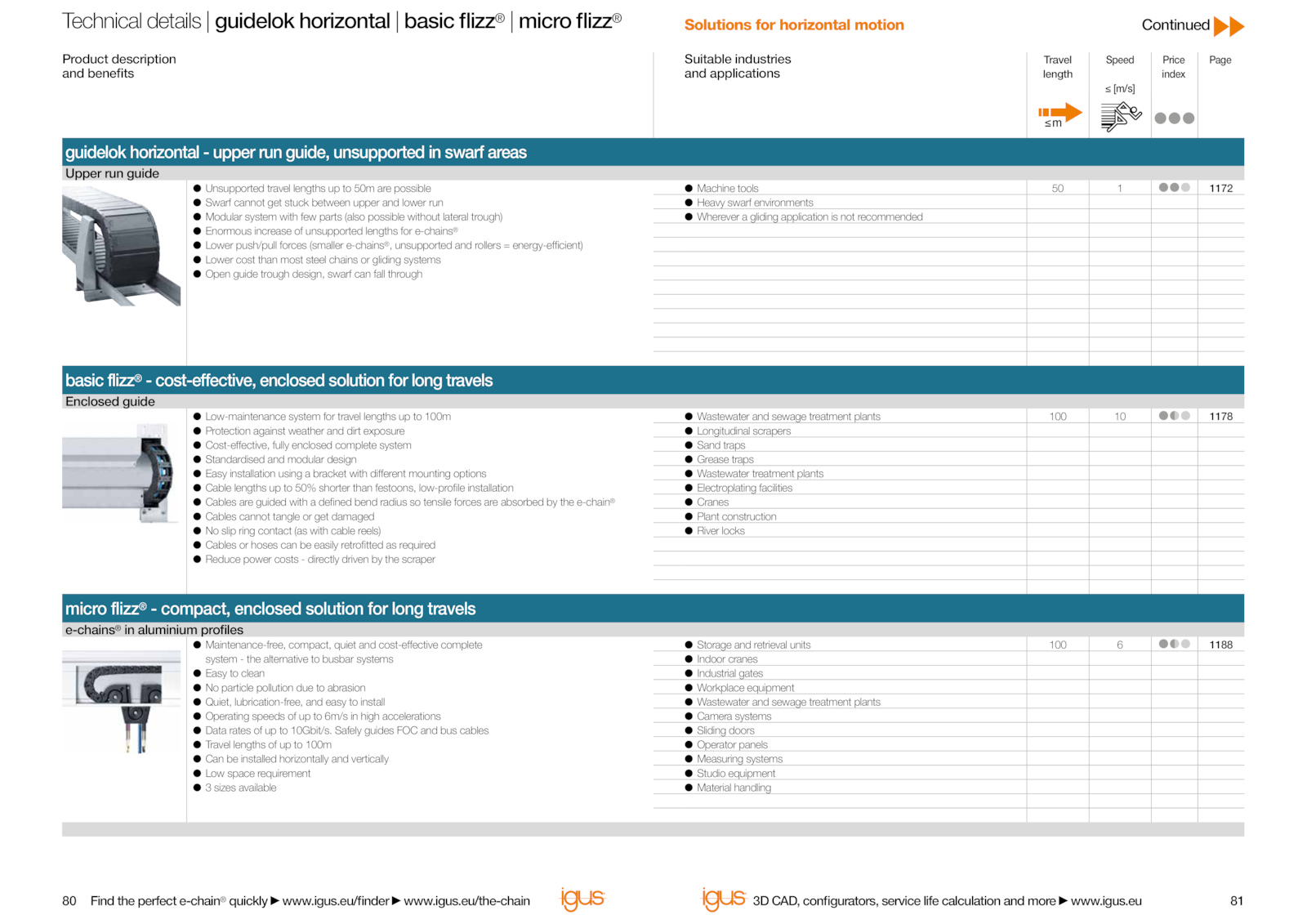

Technical details guidelok horizontal basic flizz® micro flizz®
Solutions for horizontal motion Continued
Find the perfect e-chain® quickly www.igus.igus.igus
