igus.774 775
hi [mm] [mm] [mm] [mm] [mm]
YE.
108
YEHD. Ready ship 72hrs.
Steel plastic does not have either-or
decision.56 100 500 788
More information www.igus.igus.
No rivets, screws.108 series new size with 108mm inner height
● plastic-steel hybrid e-chains®:
tough, vibration-proof, compact and easy assemble
● The hybrid energy chain the best mix lightweight
plastic and tough steel with large inner heights
Upon request more information www.*
*Average time before the ordered goods are dispatched. order reach the highest possible
unsupported length with the lowest possible
weight, so-called hybrid e-chains® are ideal,
combining the best properties steel and
plastic.eu/YE
Free white paper: energy supply systems
for machines with inclined axes
● Read this white paper learn about the benefits the hybrid chain
for aerial work platforms and other machinery and applications
● Describes requirements for telescopic work platforms and cherry pickers
Download whitepaper www.
**Unsupported lengths depending the angle inclination see corresponding graphs the series pages
Available from stock.igus.42 100 782
YE.eu/YE
.eu/YE

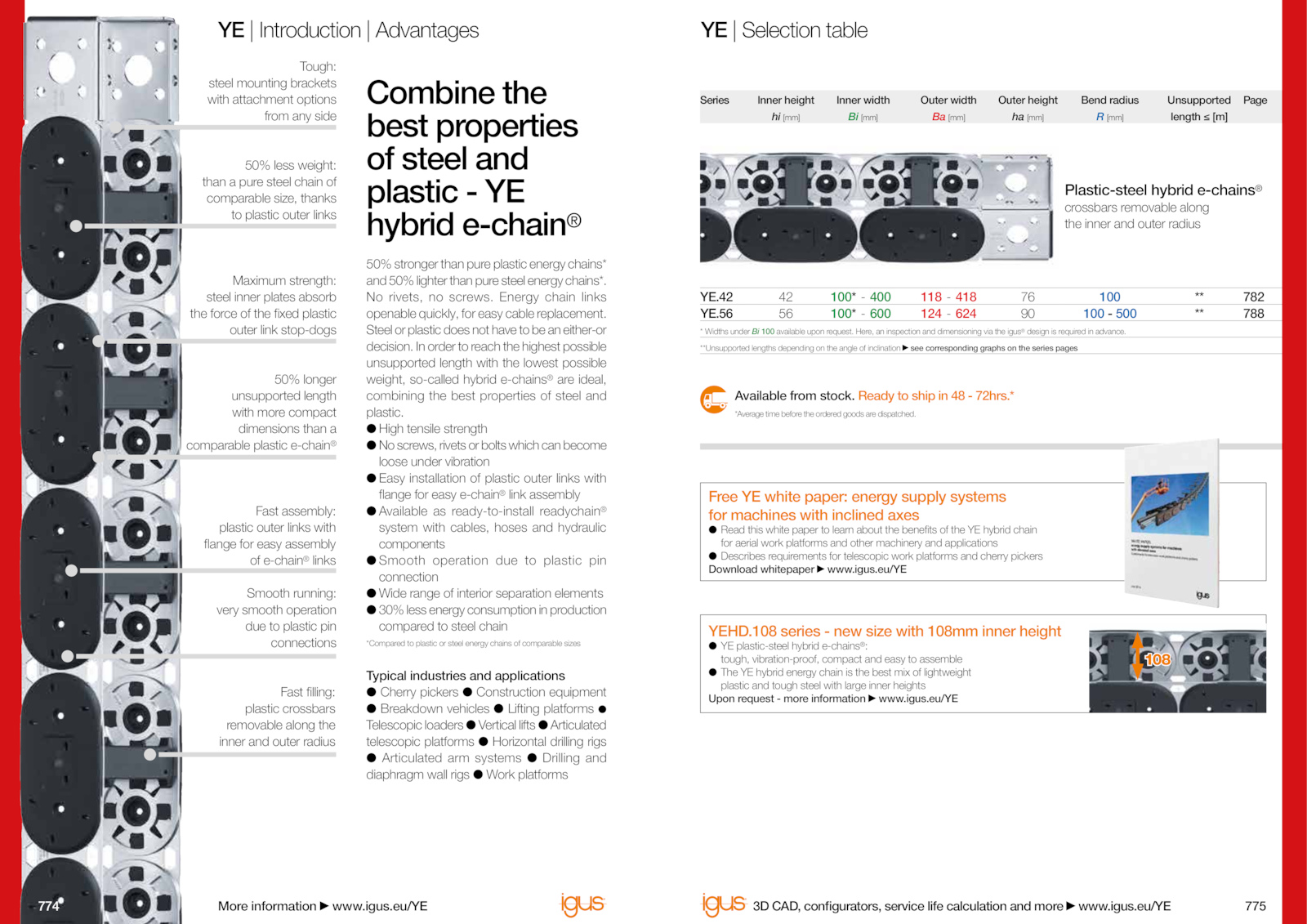

YE Introduction Advantages
Combine the
best properties
of steel and
plastic YE
hybrid e-chain®
Maximum strength:
steel inner plates absorb
the force the fixed plastic
outer link stop-dogs
50% longer
unsupported length
with more compact
dimensions than a
comparable plastic e-chain®
Fast filling:
plastic crossbars
removable along the
inner and outer radius
Tough:
steel mounting brackets
with attachment options
from any side
Smooth running:
very smooth operation
due plastic pin
connections
Fast assembly:
plastic outer links with
flange for easy assembly
of e-chain® links
50% less weight:
than pure steel chain of
comparable size, thanks
to plastic outer links
3D CAD, configurators, service life calculation and more www.
● High tensile strength
● Noscrews,rivetsorboltswhichcanbecome
loose under vibration
● Easy installation plastic outer links with
flange for easy e-chain® link assembly
● Available ready-to-install readychain®
system with cables, hoses and hydraulic
components
● Smooth operation due plastic pin
connection
● Wide range interior separation elements
● 30% less energy consumption production
compared steel chain
*Compared plastic steel energy chains comparable sizes
Typical industries and applications
● Cherry pickers Construction equipment
● Breakdown vehicles Lifting platforms ●
Telescopic loaders Vertical lifts Articulated
telescopic platforms Horizontal drilling rigs
● Articulated arm systems Drilling and
diaphragm wall rigs Work platforms
YE Selection table
Series Inner height Inner width Outer width Outer height Bend radius Unsupported
length [m]
Page
Plastic-steel hybrid e-chains®
crossbars removable along
the inner and outer radius
42 100* 400 118 418 **
56 100* 600 124 624 **
* Widths under 100 available upon request. Here, inspection and dimensioning via the igus® design required advance. Energy chain links
openable quickly, for easy cable replacement.eu/YE
50% stronger than pure plastic energy chains*
and 50% lighter than pure steel energy chains*
