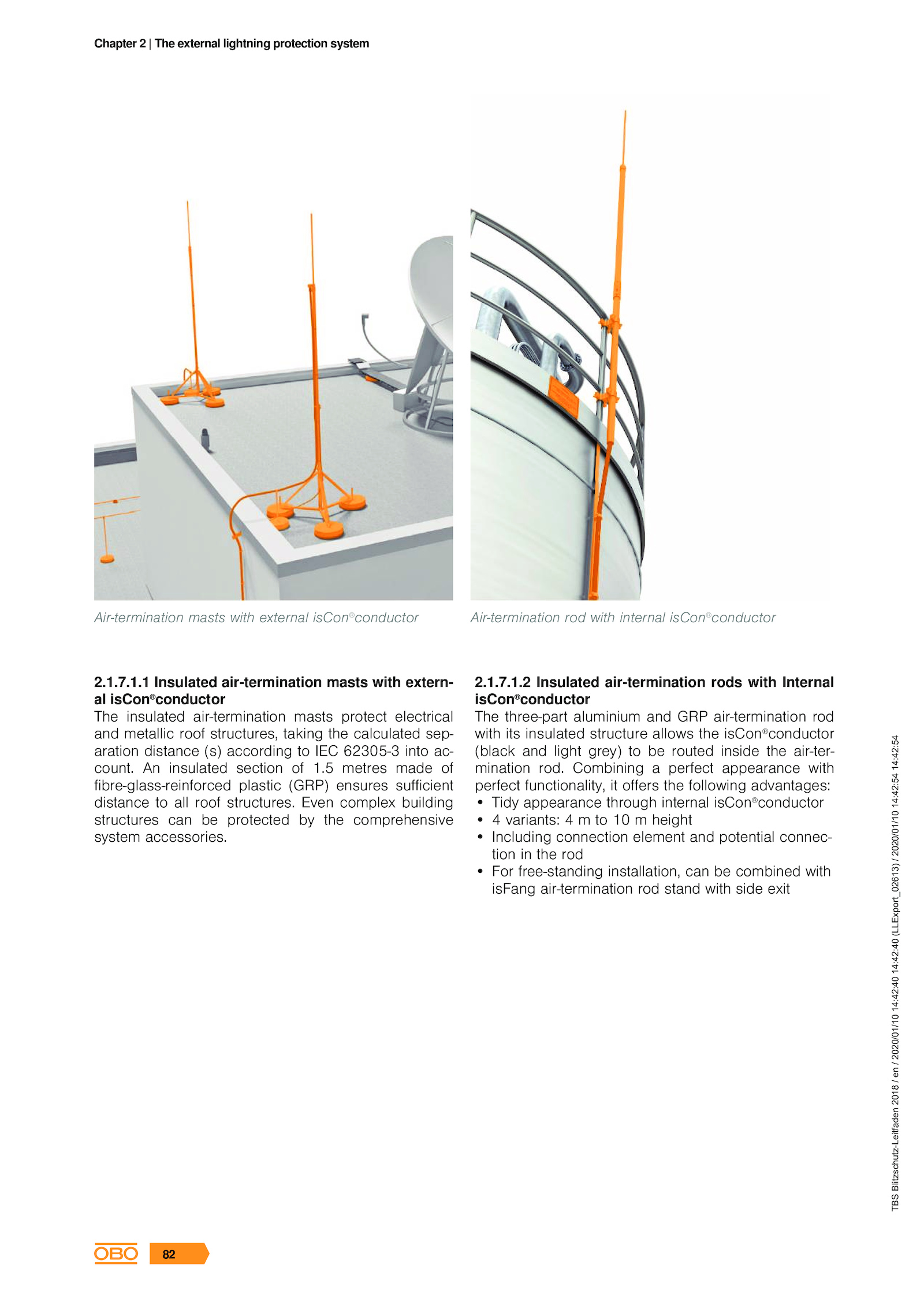

1. Combining perfect appearance with perfect functionality, offers the following advantages: • Tidy appearance through internal isCon® conductor • variants: height • Including connection element and potential connec- tion the rod • For free-standing installation, can combined with isFang air-termination rod stand with side exit TBS Blitzschutz-Leitfaden 2018 / en / 2020/01/10 14:42:40 14:42:40 (LLExport_02613) / 2020/01/10 14:42:54 14:42:54 82 Chapter The external lightning protection system . Even complex building structures can protected the comprehensive system accessories.7.7. 2.1.Air-termination masts with external isCon® conductor Air-termination rod with internal isCon® conductor 2.2 Insulated air-termination rods with Internal isCon® conductor The three-part aluminium and GRP air-termination rod with its insulated structure allows the isCon® conductor (black and light grey) routed inside the air-ter- mination rod.1 Insulated air-termination masts with extern- al isCon® conductor The insulated air-termination masts protect electrical and metallic roof structures, taking the calculated sep- aration distance (s) according IEC 62305-3 into ac- count.1. insulated section 1.5 metres made of fibre-glass-reinforced plastic (GRP) ensures sufficient distance all roof structures.1
