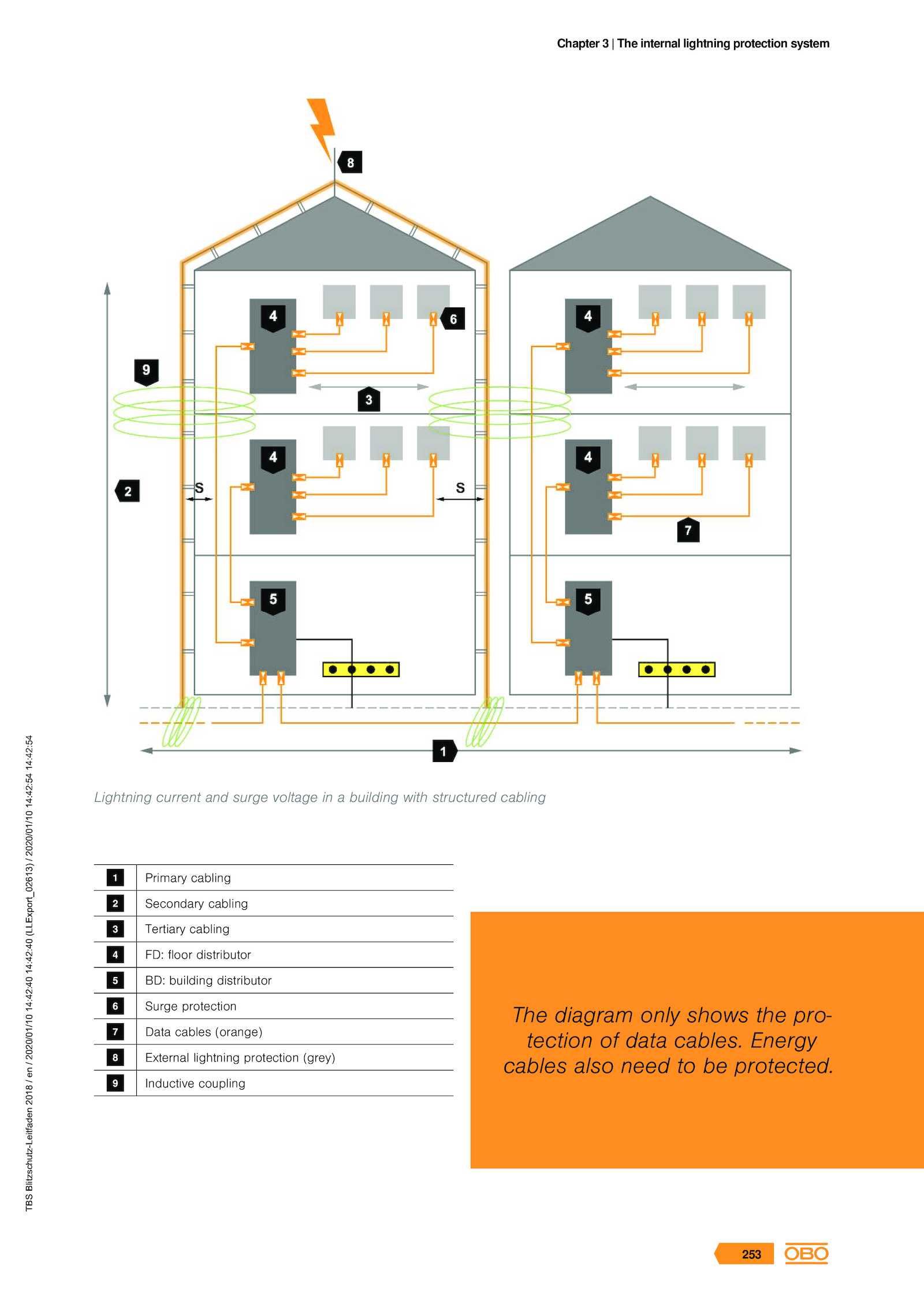

Lightning current and surge voltage building with structured cabling
Primary cabling
Secondary cabling
Tertiary cabling
FD: floor distributor
BD: building distributor
Surge protection
Data cables (orange)
External lightning protection (grey)
Inductive coupling
The diagram only shows the pro-
tection data cables. Energy
cables also need protected
