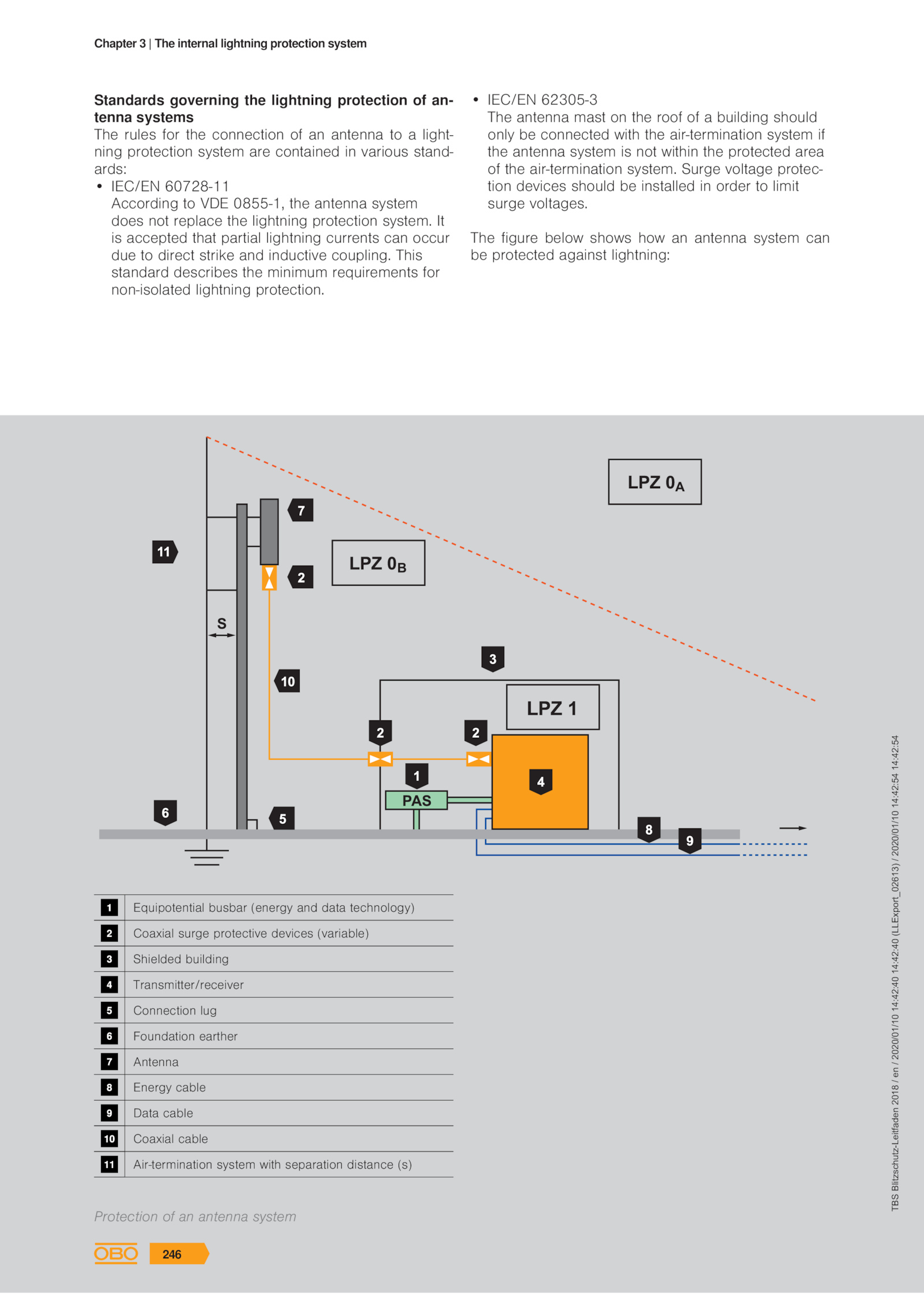

It is accepted that partial lightning currents can occur due direct strike and inductive coupling. The figure below shows how antenna system can be protected against lightning: Equipotential busbar (energy and data technology) Coaxial surge protective devices (variable) Shielded building Transmitter/receiver Connection lug Foundation earther Antenna Energy cable Data cable Coaxial cable Air-termination system with separation distance (s) Protection antenna system TBS Blitzschutz-Leitfaden 2018 / en / 2020/01/10 14:42:40 14:42:40 (LLExport_02613) / 2020/01/10 14:42:54 14:42:54 246 Chapter The internal lightning protection system . This standard describes the minimum requirements for non-isolated lightning protection. Surge voltage protec- tion devices should installed order limit surge voltages.Standards governing the lightning protection an- tenna systems The rules for the connection antenna light- ning protection system are contained various stand- ards: • IEC/EN 60728-11 According VDE 0855-1, the antenna system does not replace the lightning protection system. • IEC/EN 62305-3 The antenna mast the roof building should only connected with the air-termination system if the antenna system not within the protected area of the air-termination system
