3. The voltage protection level can increase so
dramatically that the voltage resistance the terminal
device exceeded and the device damaged des-
pite the presence surge protection. Complete shield
action against capacitive and inductive coupling can
only effective when the shield included with low
impedance both sides the equipotential bonding.
3.2. Long cable lengths should avoided. The
best solution the local equipotential bonding.
Shields are also extremely important.
Device protected/telecom line
Surge protective device (energy technology)
Gas discharge arrestor (indirect shielding)
Gas discharge arrestor
Connection equipotential bonding
Equipotential busbar
Telecommunications line
Electric cable
Direct connection equipotential bonding (preferred)
Conductive shield the data cable
Phase
Neutral conductor
Protective conductor

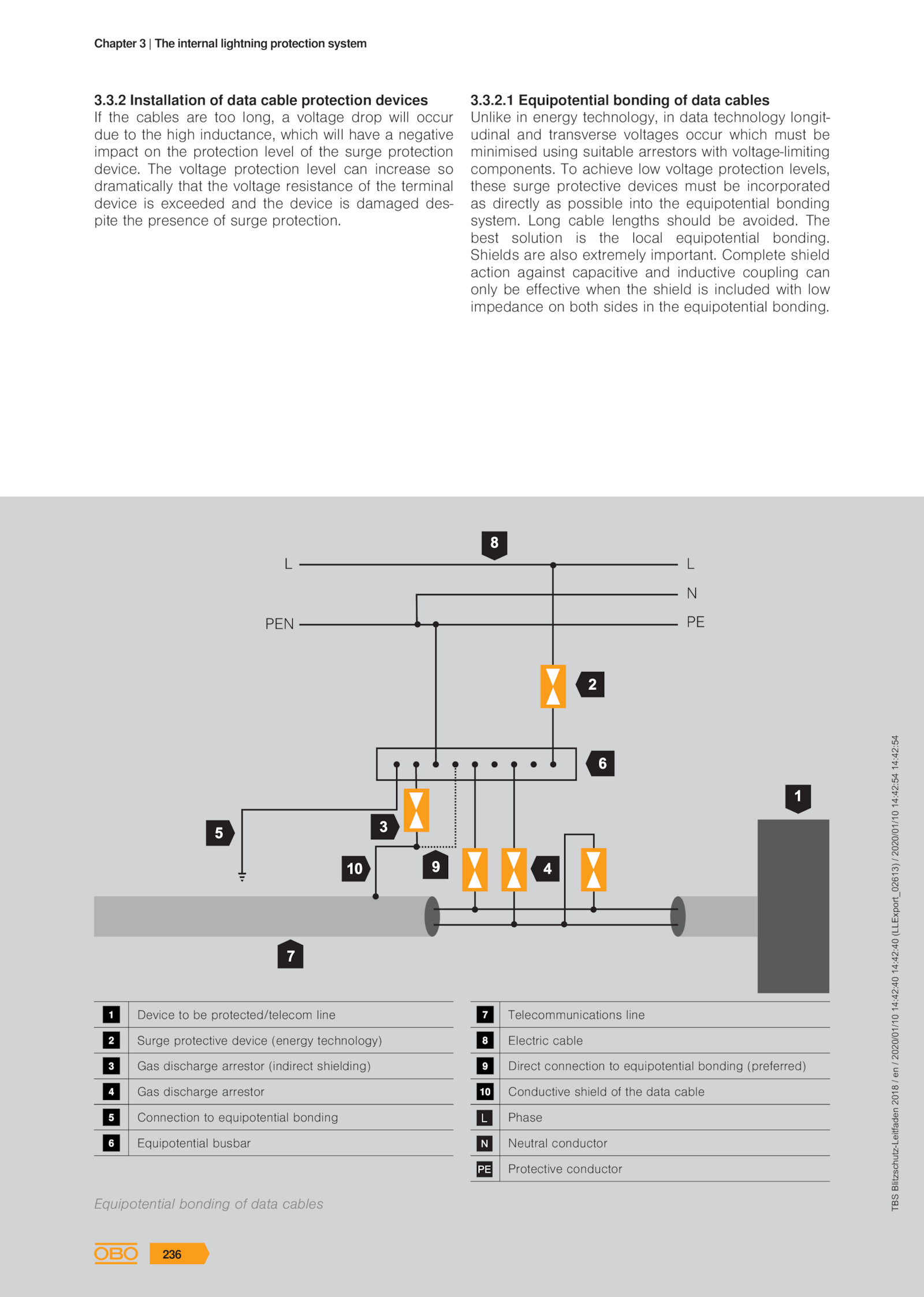

Equipotential bonding data cables
