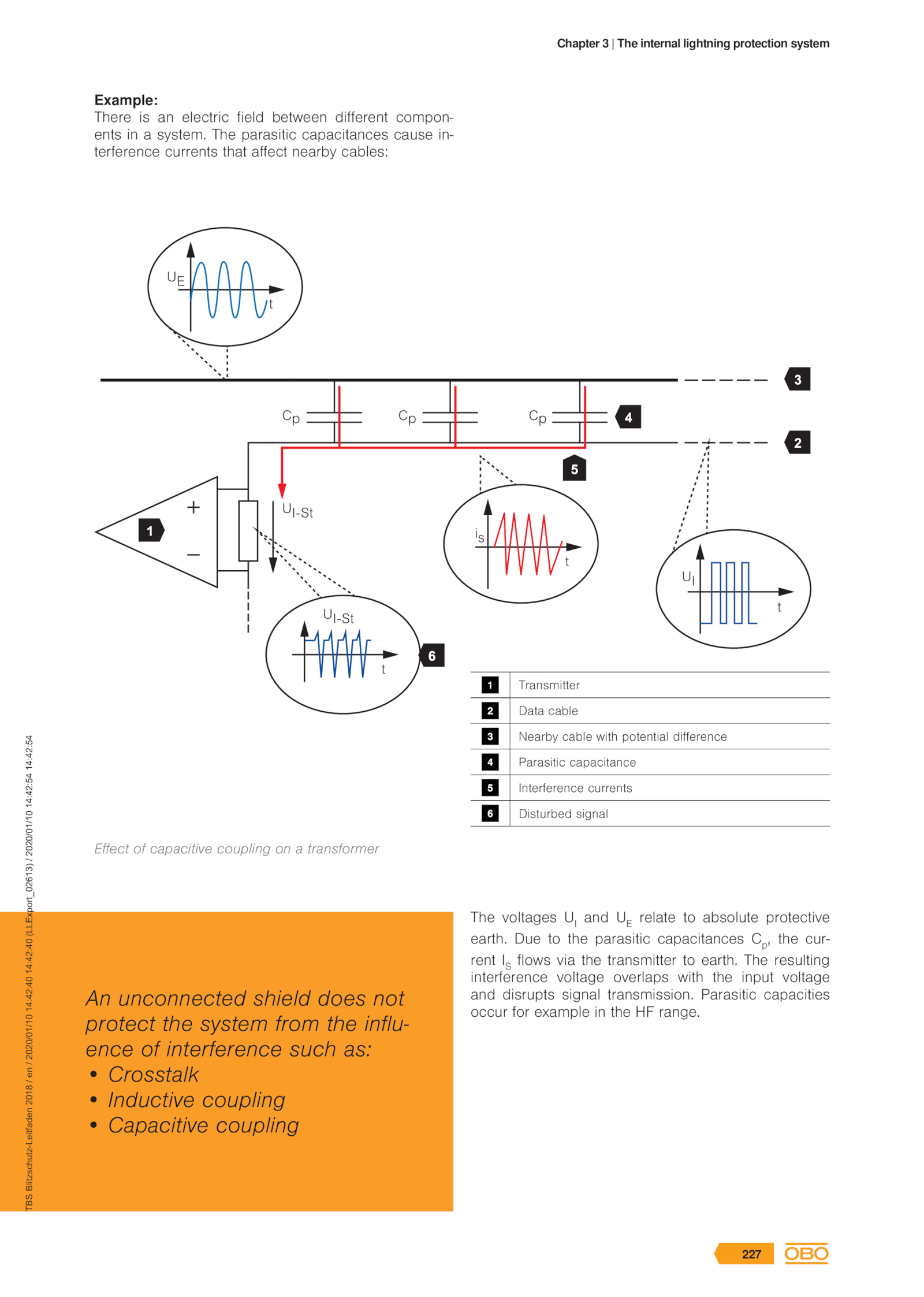

Due the parasitic capacitances Cp, the cur- rent flows via the transmitter earth.TBS Blitzschutz-Leitfaden 2018 / en / 2020/01/10 14:42:40 14:42:40 (LLExport_02613) / 2020/01/10 14:42:54 14:42:54 Example: There electric field between different compon- ents system. The resulting interference voltage overlaps with the input voltage and disrupts signal transmission. The parasitic capacitances cause in- terference currents that affect nearby cables: Transmitter Data cable Nearby cable with potential difference Parasitic capacitance Interference currents Disturbed signal Effect capacitive coupling transformer An unconnected shield does not protect the system from the influ- ence interference such as: • Crosstalk • Inductive coupling • Capacitive coupling The voltages and relate absolute protective earth. Parasitic capacities occur for example the range. TBS Blitzschutz-Leitfaden 2018 / en / 2020/01/10 14:42:40 14:42:40 (LLExport_02613) / 2020/01/10 14:42:54 14:42:54 227 Chapter The internal lightning protection system
