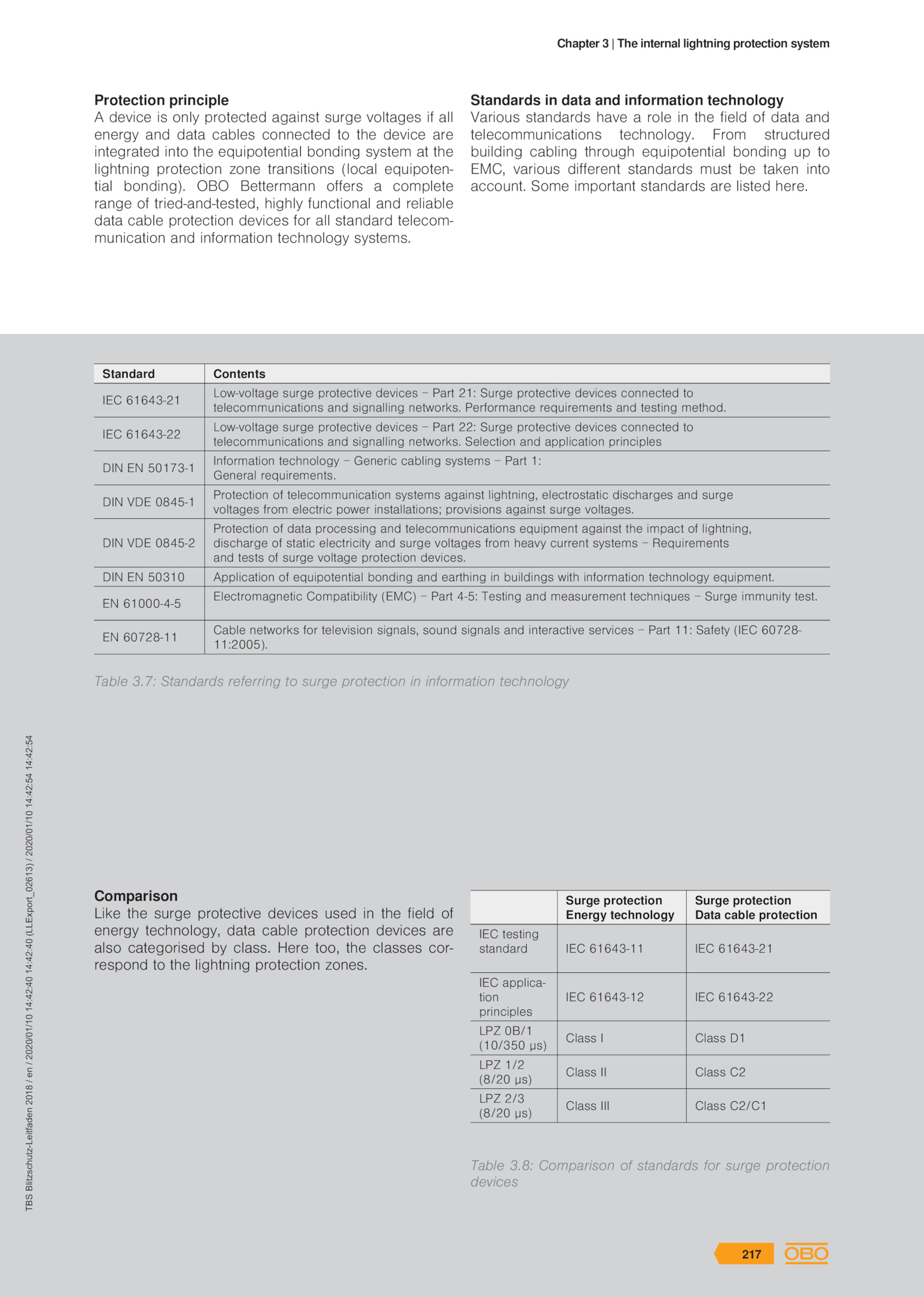

Selection and application principles DIN 50173-1 Information technology Generic cabling systems Part 1: General requirements. From structured building cabling through equipotential bonding to EMC, various different standards must taken into account.TBS Blitzschutz-Leitfaden 2018 / en / 2020/01/10 14:42:40 14:42:40 (LLExport_02613) / 2020/01/10 14:42:54 14:42:54 Protection principle A device only protected against surge voltages all energy and data cables connected the device are integrated into the equipotential bonding system the lightning protection zone transitions (local equipoten- tial bonding). Standard Contents IEC 61643-21 Low-voltage surge protective devices Part 21: Surge protective devices connected to telecommunications and signalling networks. IEC 61643-22 Low-voltage surge protective devices Part 22: Surge protective devices connected to telecommunications and signalling networks. EN 61000-4-5 Electromagnetic Compatibility (EMC) Part 4-5: Testing and measurement techniques Surge immunity test. EN 60728-11 Cable networks for television signals, sound signals and interactive services Part 11: Safety (IEC 60728- 11:2005). OBO Bettermann offers complete range tried-and-tested, highly functional and reliable data cable protection devices for all standard telecom- munication and information technology systems. Some important standards are listed here.7: Standards referring surge protection information technology Comparison Like the surge protective devices used the field of energy technology, data cable protection devices are also categorised class. Here too, the classes cor- respond the lightning protection zones. Performance requirements and testing method. Standards data and information technology Various standards have role the field data and telecommunications technology.8: Comparison standards for surge protection devices TBS Blitzschutz-Leitfaden 2018 / en / 2020/01/10 14:42:40 14:42:40 (LLExport_02613) / 2020/01/10 14:42:54 14:42:54 217 Chapter The internal lightning protection system . Table 3. Surge protection Energy technology Surge protection Data cable protection IEC testing standard IEC 61643-11 IEC 61643-21 IEC applica- tion principles IEC 61643-12 IEC 61643-22 LPZ 0B/1 (10/350 μs) Class Class D1 LPZ 1/2 (8/20 μs) Class Class C2 LPZ 2/3 (8/20 μs) Class III Class C2/C1 Table 3. DIN 50310 Application equipotential bonding and earthing buildings with information technology equipment. DIN VDE 0845-2 Protection data processing and telecommunications equipment against the impact lightning, discharge static electricity and surge voltages from heavy current systems Requirements and tests surge voltage protection devices. DIN VDE 0845-1 Protection telecommunication systems against lightning, electrostatic discharges and surge voltages from electric power installations; provisions against surge voltages
