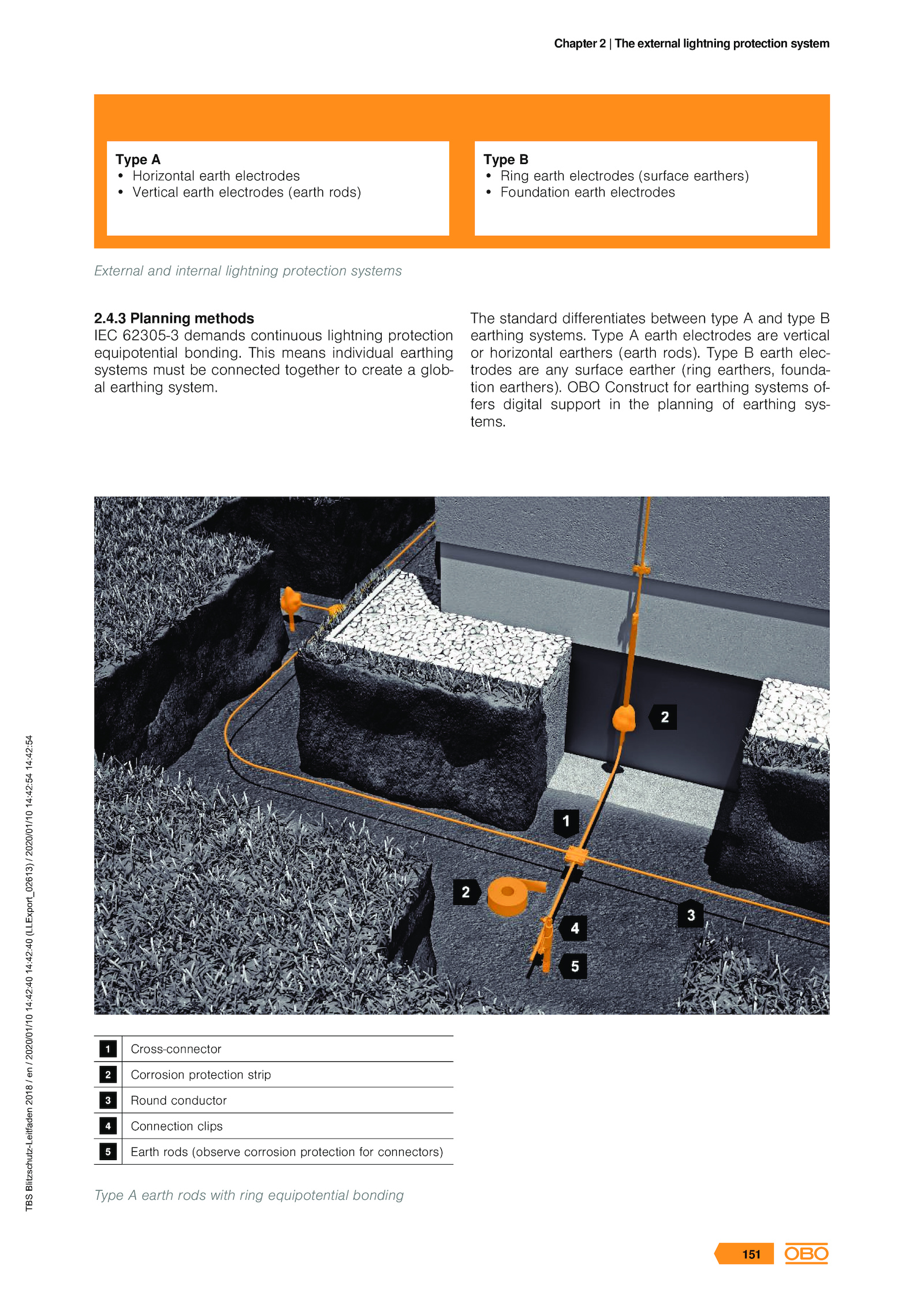

Type A
• Horizontal earth electrodes
• Vertical earth electrodes (earth rods)
Type B
• Ring earth electrodes (surface earthers)
• Foundation earth electrodes
External and internal lightning protection systems
2.
Cross-connector
Corrosion protection strip
Round conductor
Connection clips
Earth rods (observe corrosion protection for connectors)
Type earth rods with ring equipotential bonding
