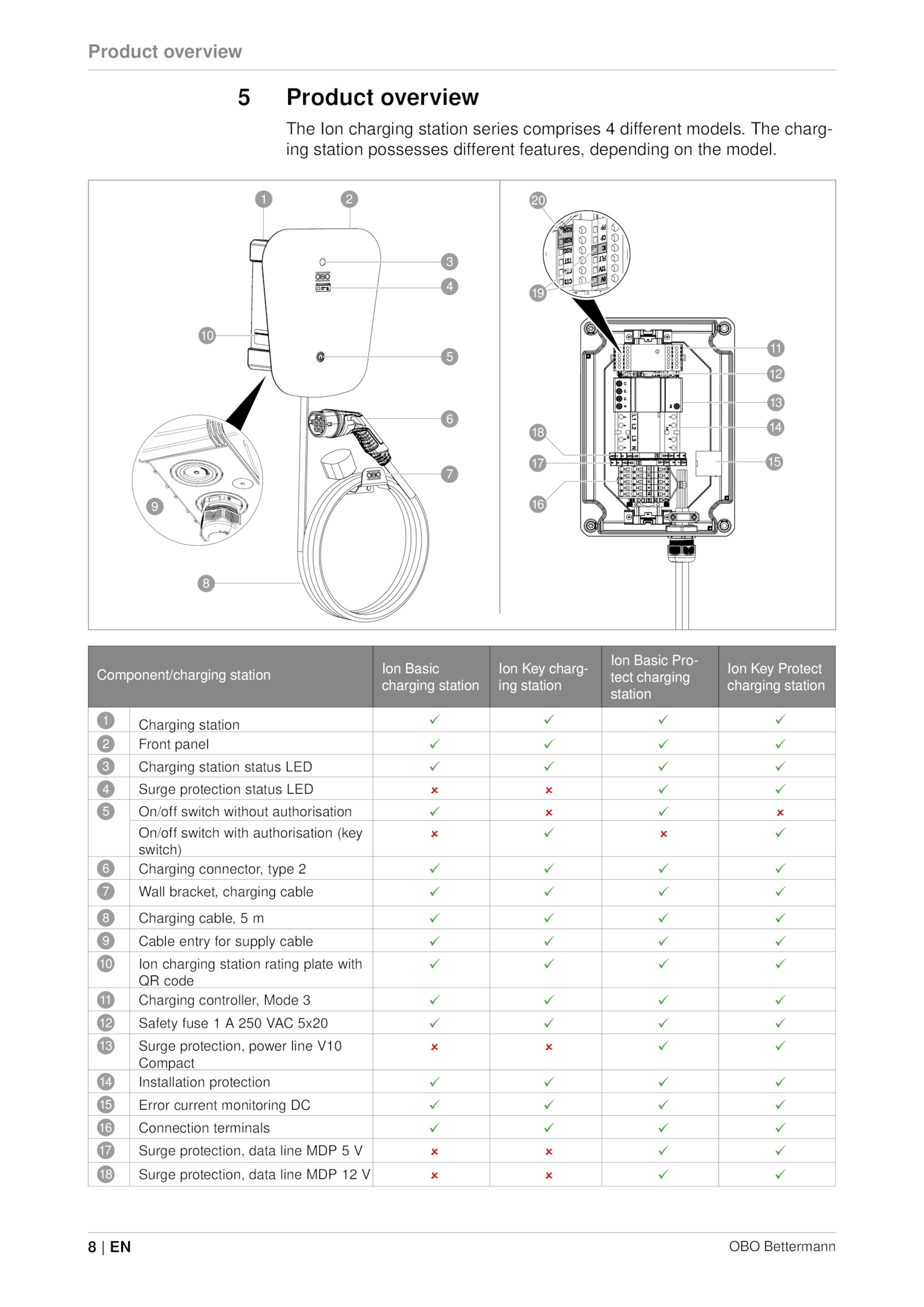

The charg-
ing station possesses different features, depending the model.
1 2
6
8
9
11
13
12
14
4
3
5
7
10
15
16
17
18
19
20
Component/charging station Ion Basic
charging station
Ion Key charg-
ing station
Ion Basic Pro-
tect charging
station
Ion Key Protect
charging station
1 Charging station
2 Front panel
3 Charging station status LED
4 Surge protection status LED
5 On/off switch without authorisation
On/off switch with authorisation (key
switch)
6 Charging connector, type
7 Wall bracket, charging cable
8 Charging cable,
9 Cable entry for supply cable
10 Ion charging station rating plate with
QR code
11 Charging controller, Mode
12 Safety fuse 250 VAC 5x20
13 Surge protection, power line V10
Compact
14 Installation protection
15 Error current monitoring
16 Connection terminals
17 Surge protection, data line MDP
18 Surge protection, data line MDP.OBO Bettermann
Product overview
5 Product overview
The Ion charging station series comprises different models
