If your application requires more, BB’s application
engineering services can add special features the
standard product such additional cabinet for
customer specific devices ensure exact suitability
for the application.

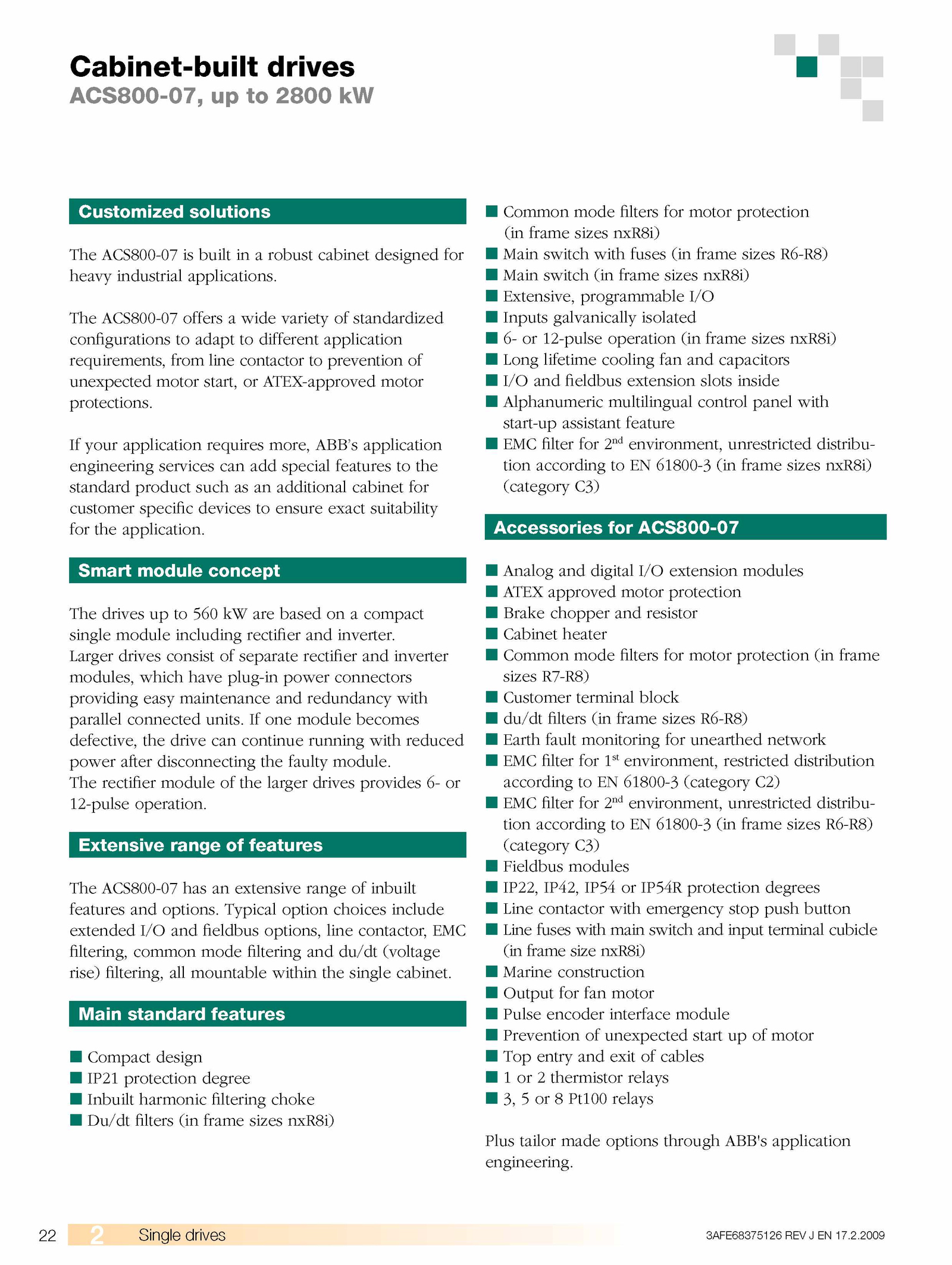

Smart module concept
The drives 560 are based compact
single module including rectifier and inverter.
Extensive range features
The ACS800-07 has extensive range inbuilt
features and options.Cabinet-built drives
ACS800-07, 2800 kW
Customized solutions
The ACS800-07 built robust cabinet designed for
heavy industrial applications.
Main standard features
■ Compact design
■ IP21 protection degree
■ Inbuilt harm onic filtering choke
■ Du/dt filters (in frame sizes nxR8i)
■ Common ode filters for motor protection
(in frame sizes nxR8i)
■ Main switch with fuses (in frame sizes R6-R8)
■ Main switch (in frame sizes nxR8i)
■ Extensive, programmable I/O
■ Inputs galvanically isolated
■ 12-pulse operation (in frame sizes nxR8i)
■ Long lifetime cooling fan and capacitors
■ I/O and fieldbus extension slots inside
■ Alphanumeric multilingual control panel with
start-up assistant feature
■ EMC filter for 2nd environment, unrestricted distribu
tion according 61800-3 (in frame sizes nxR8i)
(category C3)
Accessories for ACS800-07
■ Analog and digital I/O extension modules
■ ATEX approved motor protection
■ Brake chopper and resistor
■ Cabinet heater
■ Common ode filters for motor protection (in frame
sizes R7-R8)
■ Customer terminal block
■ du/dt filters (in frame sizes R6-R8)
■ Earth fault monitoring for unearthed network
■ EMC filter for 1st environment, restricted distribution
according 61800-3 (category C2)
■ EMC filter for 2nd environment, unrestricted distribu
tion according 61800-3 (in frame sizes R6-R8)
(category C3)
■ Fieldbus modules
■ IP22, IP42, IP54 IP54R protection degrees
■ Line contactor with ergency stop push button
■ Line fuses with main switch and input terminal cubicle
(in frame size nxR8i)
■ Marine construction
■ Output for fan motor
■ Pulse encoder interface module
■ Prevention unexpected start motor
■ Top entry and exit cables
■ thermistor relays
■ Pt100 relays
Plus tailor made options through ABB's application
engineering.
The rectifier module the larger drives provides or
1 -pulse operation.
Larger drives consist separate rectifier and inverter
modules, hich have plug-in pow connectors
providing easy aintenance and redundancy with
parallel connected units.
The ACS800-07 offers wide variety standardized
configurations adapt different application
requirements, from line contactor prevention of
unexpected motor start, ATEX-approved motor
protections. Typical option choices include
extended I/O and fieldbus options, line contactor, EMC
filtering, com ode filtering and du/dt (voltage
rise) filtering, all ountable within the single cabinet.2. one module becom es
defective, the drive can continue running with reduced
pow after disconnecting the faulty module
