Currently available fieldbus adapters
plus code
• PROFIBUS-DP +K454
• DeviceNet +K451
• CANopen +K457
• ControlNet +K462
• Modbus +K458
• Ethernet +K466
ABB 3ADW 000192R 0401 S800 Technical catalog.
Reduced installation and engineering effort
Cabling
Substituting the large amount conventional drive
control cabling with single twisted pair reduces costs
and increases system reliability. This achieved with dedicated
gateway concept between the fieldbus systems and
ABB drives.
Manufacturing flexibility
Drive control
The drive control word (16 bit) provides wide variety
of functions from start, stop and reset ramp genera
tor control. result the wide range field-
bus gateways, your choice automation system is
independent from your decision use first-class ABB
drives., can selected
for cyclic data transfer providing fast data for operators
and the manufacturing process.
The fieldbus gateway module can easily mounted
inside the drive.
Drive diagnostics
Accurate and reliable diagnostic information can be
obtained via the drive alarm, limit and fault words,
reducing the drive downtime and therefore also the
downtime the manufacturing process.
Design
The use fieldbus control reduces engineering time at
installation due the modular structure the hard
ware and software.Fieldbus control

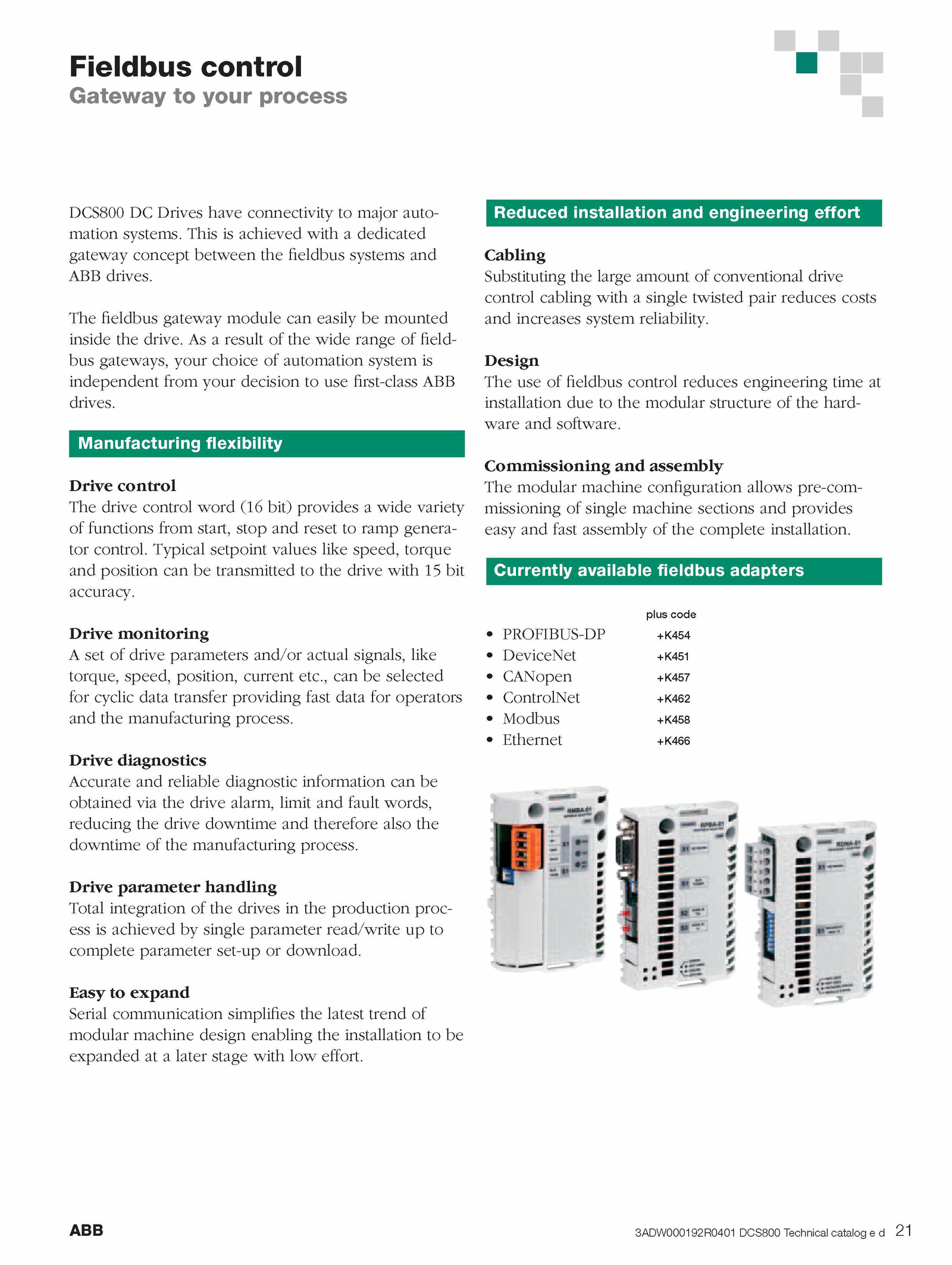

Gateway your process
DCS800 Drives have connectivity major auto
mation systems. Typical setpoint values like speed, torque
and position can transmitted the drive with bit
accuracy.
Commissioning and assembly
The modular machine configuration allows pre-com
missioning single machine sections and provides
easy and fast assembly the complete installation.
Drive monitoring
A set drive parameters and/or actual signals, like
torque, speed, position, current etc.
Drive parameter handling
Total integration the drives the production proc
ess achieved single parameter read/write to
complete parameter set-up download.
Easy expand
Serial communication simplifies the latest trend of
modular machine design enabling the installation be
expanded later stage with low effort
