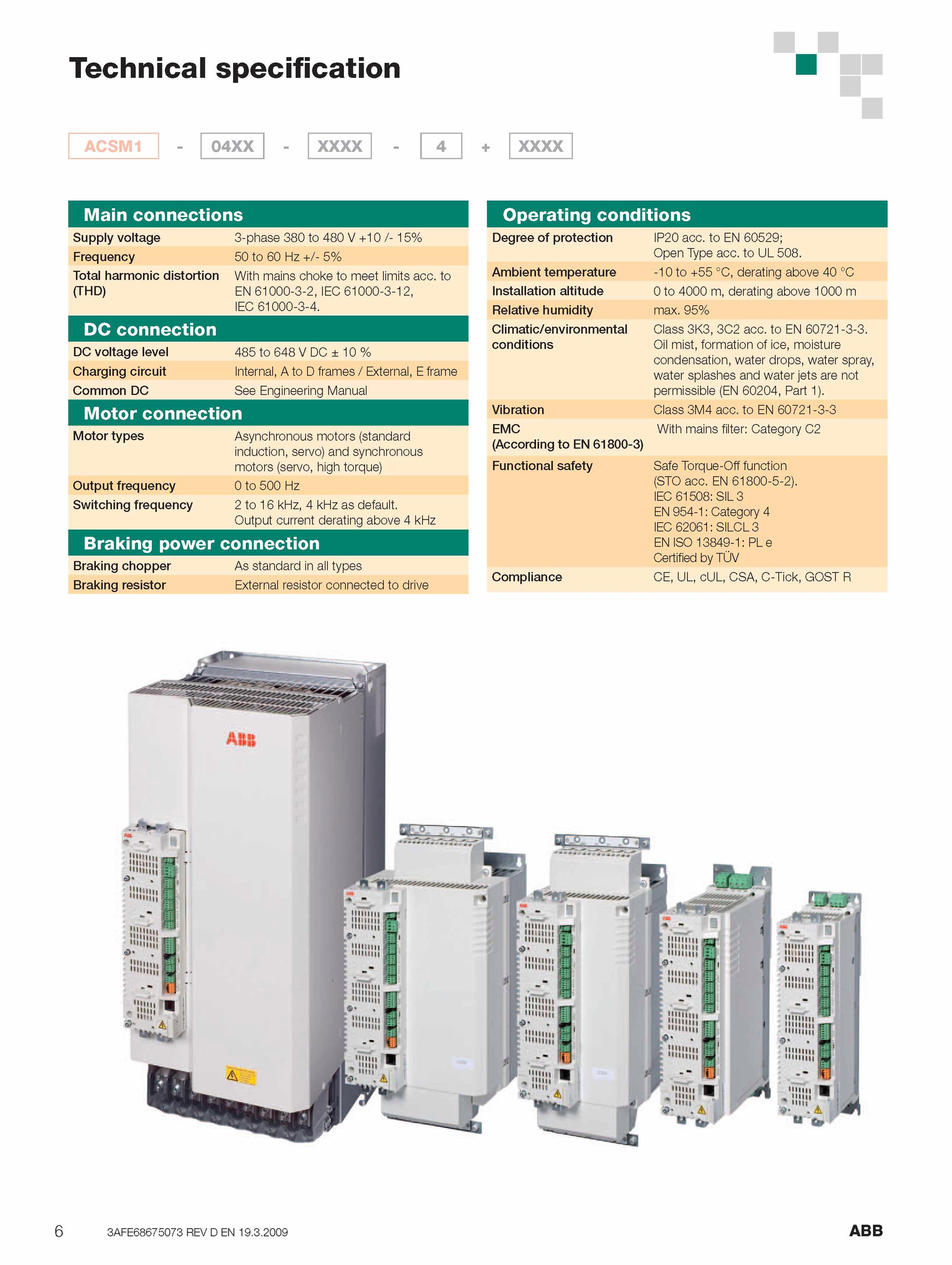

Technical specification
ACSM1 04XX XXXX XXXX
Main connections
Supply voltage 3-phase 380 480 +10 15%
Frequency 5%
Total harmonic distortion
(THD)
W ith mains choke meet limits acc. to
EN 61000-3-2, IEC 61000-3-12,
IEC 61000-3-4. 61800-5-2).
Vibration Class acc.
DC connection
DC voltage level 485 648 %
Charging circuit Internal, frames External, frame
Com mon See Engineering Manual
Motor connection
M types Asynchronous otors (standard
Induction, servo) and synchronous
m otors (servo, high torque)
O utput frequency 500 Hz
Switching frequency kHz, kHz default.2009 ABB
. 95%
Clim atic/environm ental
conditions
Class 3K3, 3C2 acc. 60721-3-3. 60529;
Open Type acc.
Am bient tem perature -10 +55 °C, derating above °C
Installation altitude 4000 derating above 1000 m
Relative humidity max.
IEC 61508: SIL 3
EN 954-1: Category 4
IEC 62061: SILCL 3
EN ISO 13849-1: e
Certified TUV
Com pliance CE, UL, cUL, CSA, C-Tick, GOST R
6 3AFE68675073 REV 19.
Oil mist, form ation ice, moisture
condensation, ater drops, ater spray,
w ater splashes and ater jets are not
permissible (EN 60204, Part 1). 60721-3-3
EMC
(According 61800-3)
W ith mains filter: Category C2
Functional safety Safe Torque-Off function
(STO acc. 508.
O utput current derating above kHz
Braking power connection
Braking chopper standard all types
Braking resistor External resistor connected drive
Operating conditions
Degree protection IP20 acc.3
