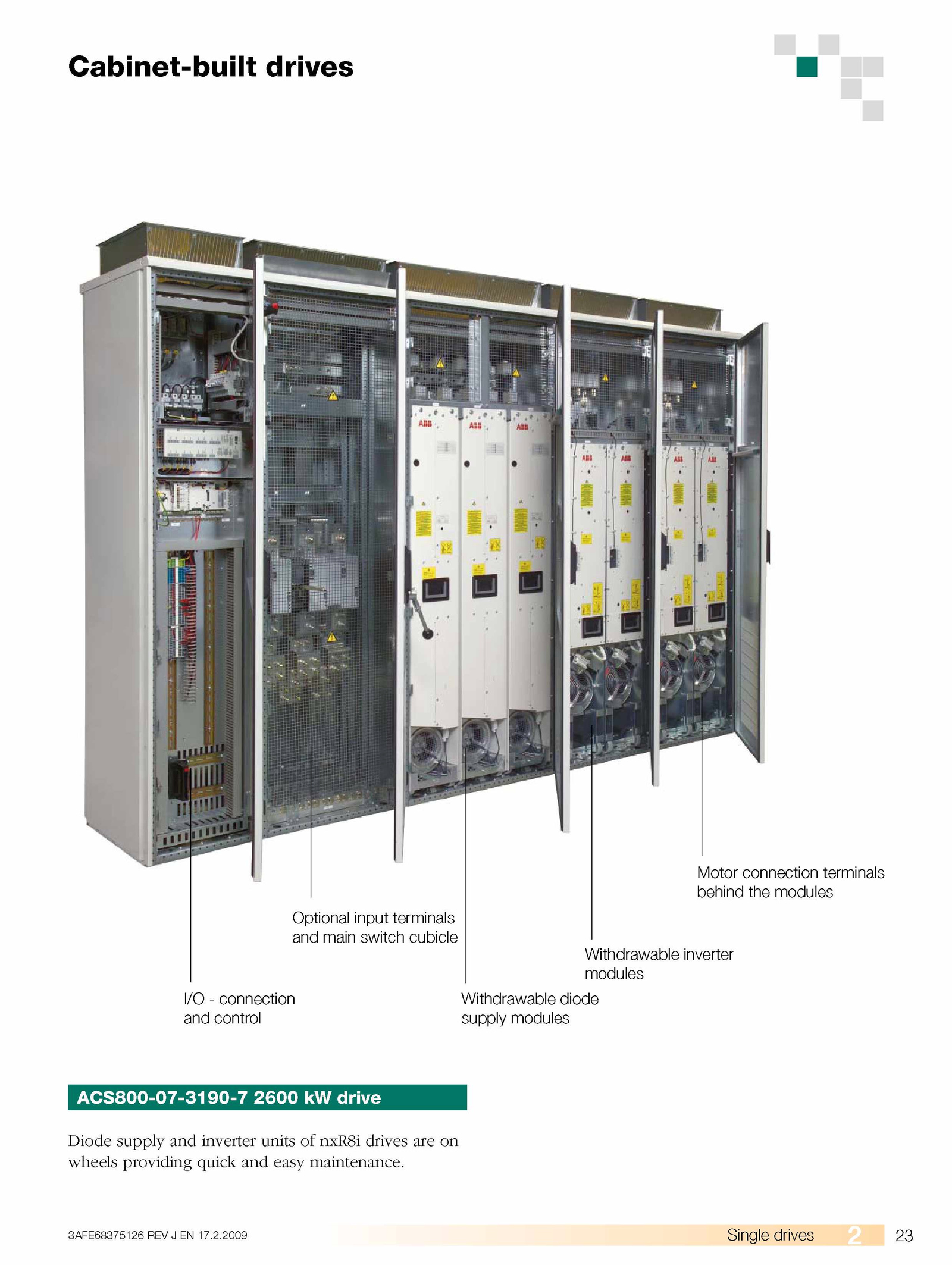

3A 68375126 REV 17.Cabinet-built drives
Motor connection terminals
behind the modules
Optional input terminals
and main switch cubicle
I/O connection
and control
Withdrawable inverter
modules
Withdrawable diode
supply modules
ACS800-07-3190-7 2600 drive
Diode supply and inverter units nxR8i drives are on
wheels providing quick and easy aintenance.2
