F3: Coil calibration Automatic determination of
the coil's operating times, end switch position and
motor drive overrun
F4: Coil linearization Manual alignment the
potentiometer information the regulator with
position indicator (in the P-coil
1 P-coil data
Figure 59: Enter the coil’s
Imin, Imax
Screen 1/3
F2: I_min coil’s smallest value A
F3: I_max coil’s biggest value A
Figure 60: Enter end switch
type
Screen 2/3
F2: End switch End switch information wired as
normally open contact normally closed contact
F3: Soft end switch

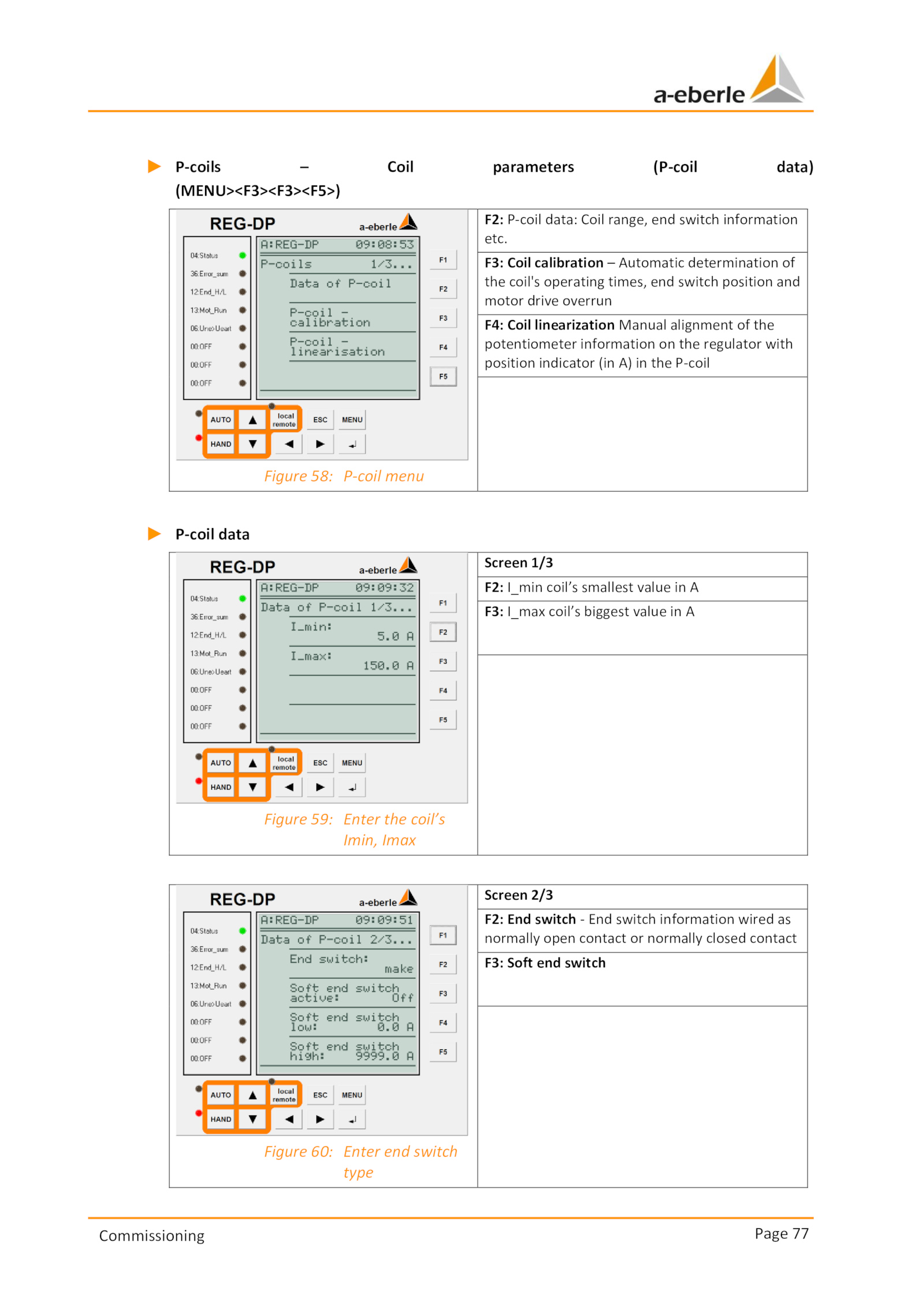

.Page 77
Commissioning
1 P-coils Coil parameters (P-coil data)
(MENU><F3><F3><F5>)
Figure 58: P-coil menu
F2: P-coil data: Coil range, end switch information
etc
