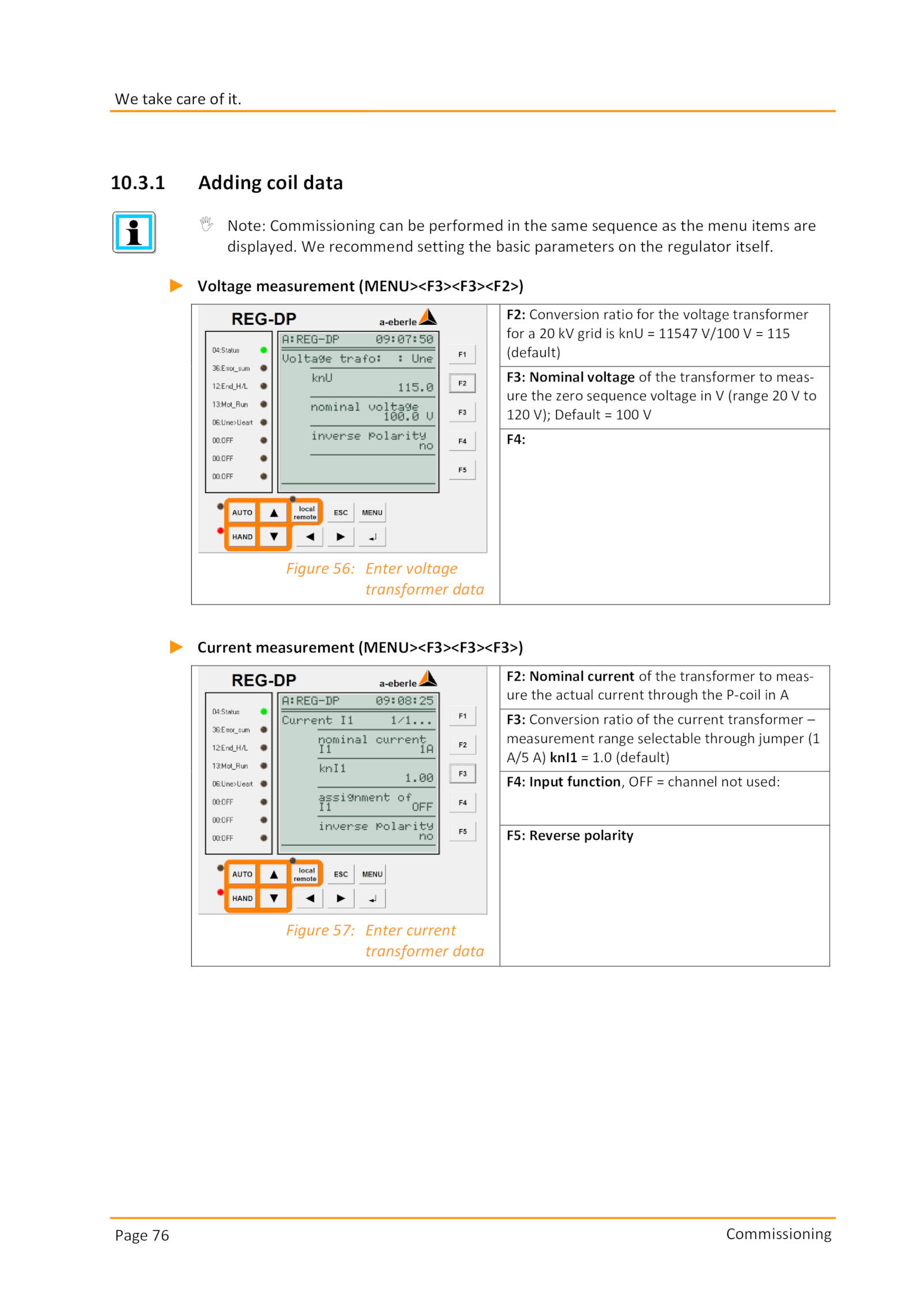

1 Voltage measurement (MENU><F3><F3><F2>)
Figure 56: Enter voltage
transformer data
F2: Conversion ratio for the voltage transformer
for grid knU 11547 V/100 115
(default)
F3: Nominal voltage the transformer meas-
ure the zero sequence voltage (range to
120 V); Default 100 V
F4:
1 Current measurement (MENU><F3><F3><F3>)
Figure 57: Enter current
transformer data
F2: Nominal current the transformer meas-
ure the actual current through the P-coil A
F3: Conversion ratio the current transformer –
measurement range selectable through jumper (1
A/5 knI1 1. recommend setting the basic parameters the regulator itself.
10.0 (default)
F4: Input function, OFF channel not used:
F5: Reverse polarity
.1 Adding coil data
Note: Commissioning can performed the same sequence the menu items are
displayed.3
