Operating Instructions for the Petersen-Coil Regulator

Vydal: EBERLE Controls GmbH

Strana 60 z 272

Jak získat tento dokument?






Poznámky redaktora

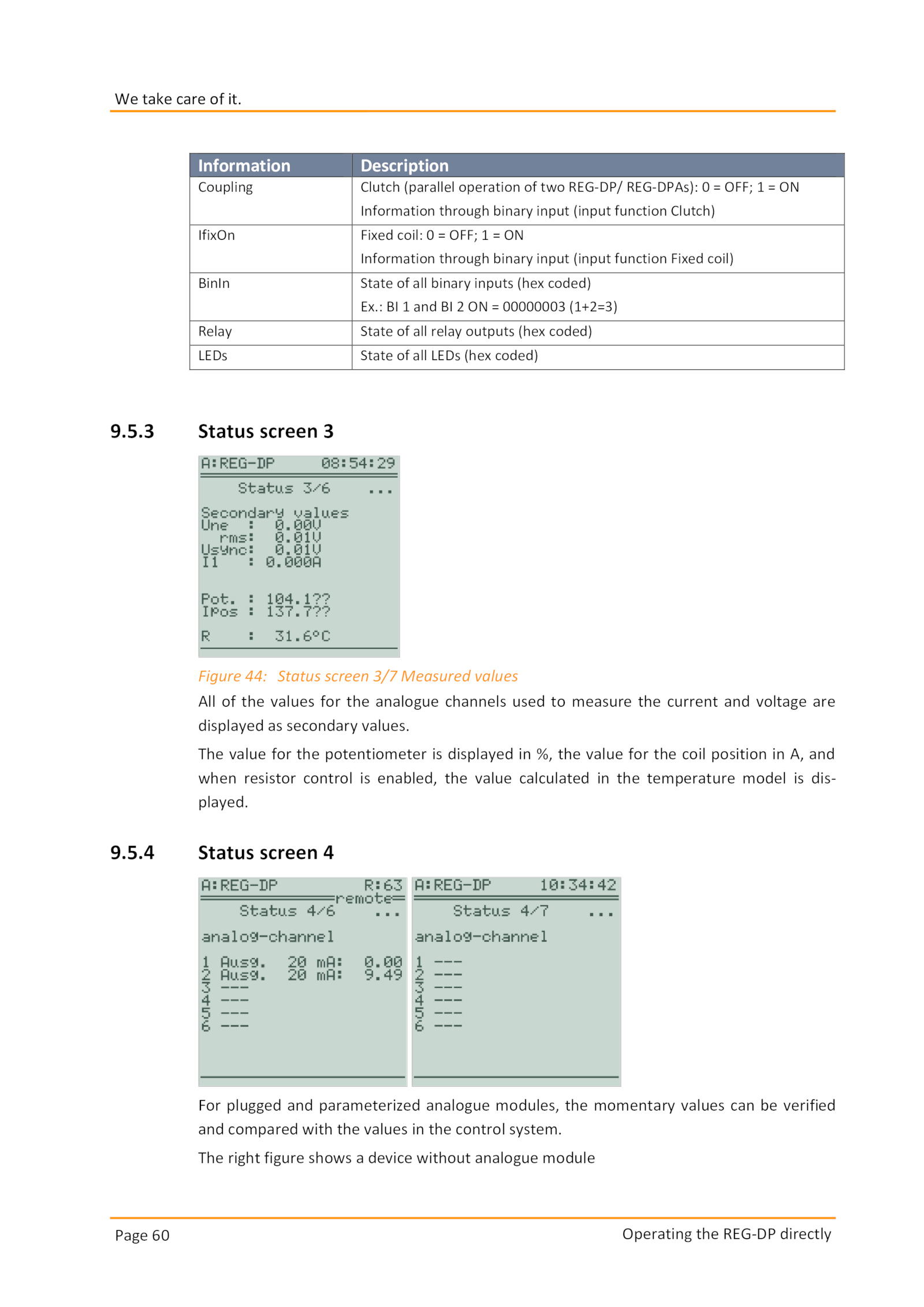

Information Description Coupling Clutch (parallel operation two REG-DP/ REG-DPAs): OFF; ON Information through binary input (input function Clutch) IfixOn Fixed coil: OFF; ON Information through binary input (input function Fixed coil) BinIn State all binary inputs (hex coded) Ex.Page Operating the REG-DP directly We take care it.5. The value for the potentiometer displayed the value for the coil position and when resistor control enabled, the value calculated the temperature model dis- played.5.3 Status screen 3 Figure 44: Status screen 3/7 Measured values All the values for the analogue channels used measure the current and voltage are displayed secondary values. The right figure shows device without analogue module . 9.4 Status screen 4 For plugged and parameterized analogue modules, the momentary values can verified and compared with the values the control system.: and 00000003 (1+2=3) Relay State all relay outputs (hex coded) LEDs State all LEDs (hex coded) 9
