Commissioning the HPCI

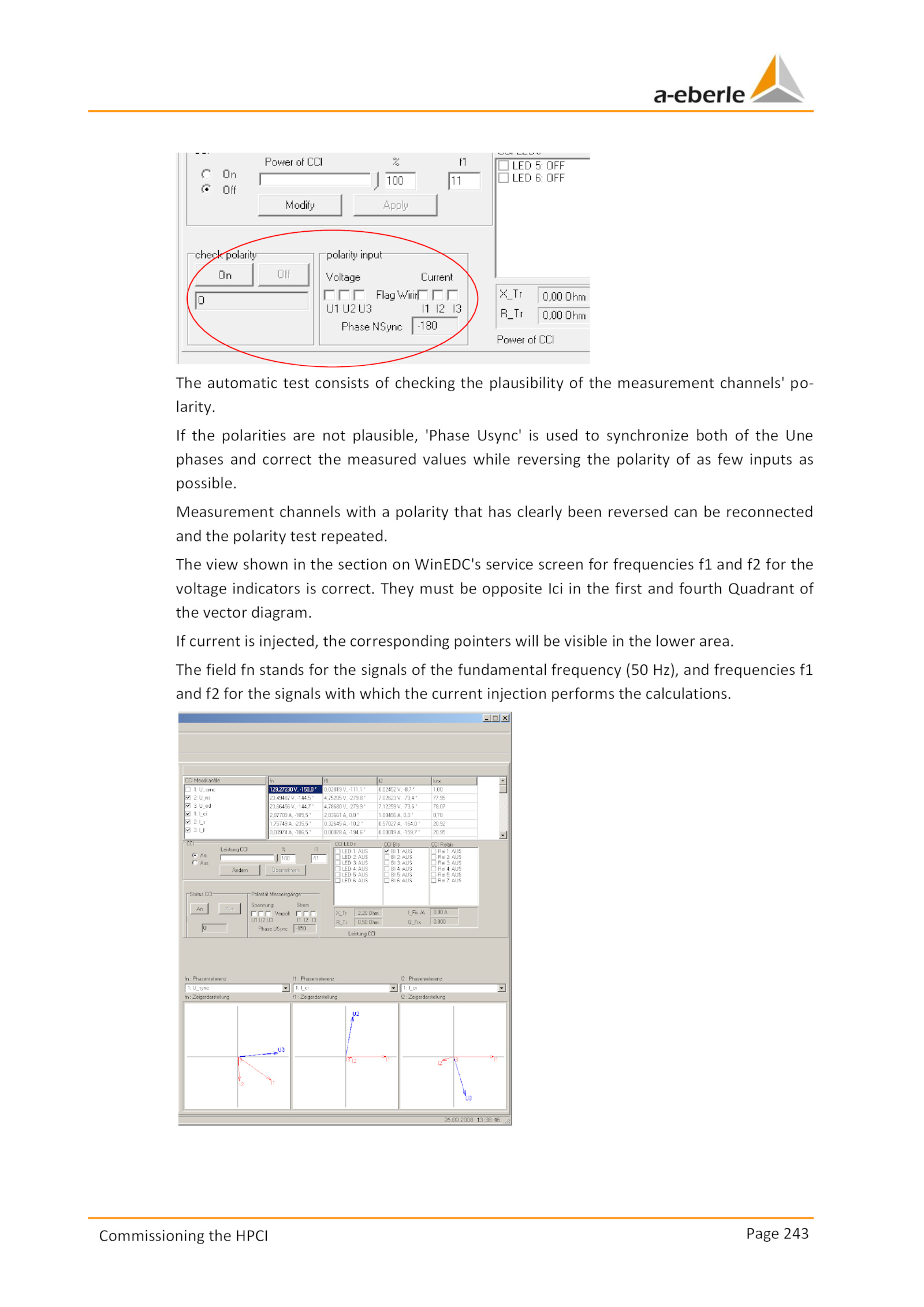

The automatic test consists checking the plausibility the measurement channels' po-
larity.
The view shown the section WinEDC's service screen for frequencies and for the
voltage indicators correct.
Measurement channels with polarity that has clearly been reversed can reconnected
and the polarity test repeated.
.
If current injected, the corresponding pointers will visible the lower area.
If the polarities are not plausible, 'Phase Usync' used synchronize both the Une
phases and correct the measured values while reversing the polarity few inputs as
possible.
The field stands for the signals the fundamental frequency (50 Hz), and frequencies f1
and for the signals with which the current injection performs the calculations. They must opposite Ici the first and fourth Quadrant of
the vector diagram
