Operating Instructions for the Petersen-Coil Regulator

Vydal: EBERLE Controls GmbH

Strana 204 z 272

Jak získat tento dokument?






Poznámky redaktora

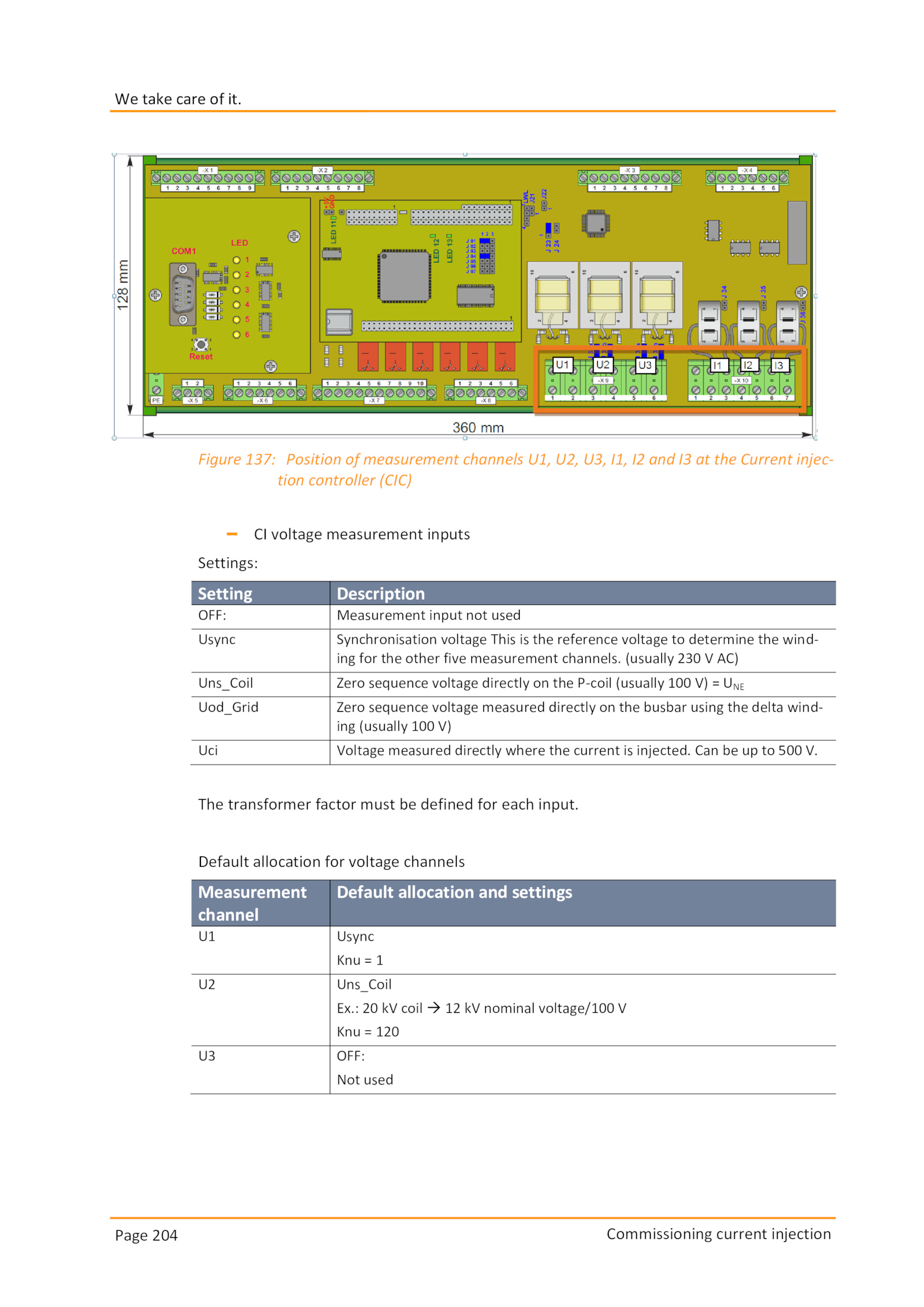

The transformer factor must defined for each input.Page 204 Commissioning current injection We take care it. Figure 137: Position measurement channels U1, U2, U3, I1, and the Current injec- tion controller (CIC) – voltage measurement inputs Settings: Setting Description OFF: Measurement input not used Usync Synchronisation voltage This the reference voltage determine the wind- ing for the other five measurement channels. Default allocation for voltage channels Measurement channel Default allocation and settings U1 Usync Knu 1 U2 Uns_Coil Ex. Can 500 V. (usually 230 AC) Uns_Coil Zero sequence voltage directly the P-coil (usually 100 UNE Uod_Grid Zero sequence voltage measured directly the busbar using the delta wind- ing (usually 100 V) Uci Voltage measured directly where the current injected.: coil nominal voltage/100 V Knu 120 U3 OFF: Not used
