Operating Instructions for the Petersen-Coil Regulator

Vydal: EBERLE Controls GmbH

Strana 118 z 272

Jak získat tento dokument?






Poznámky redaktora

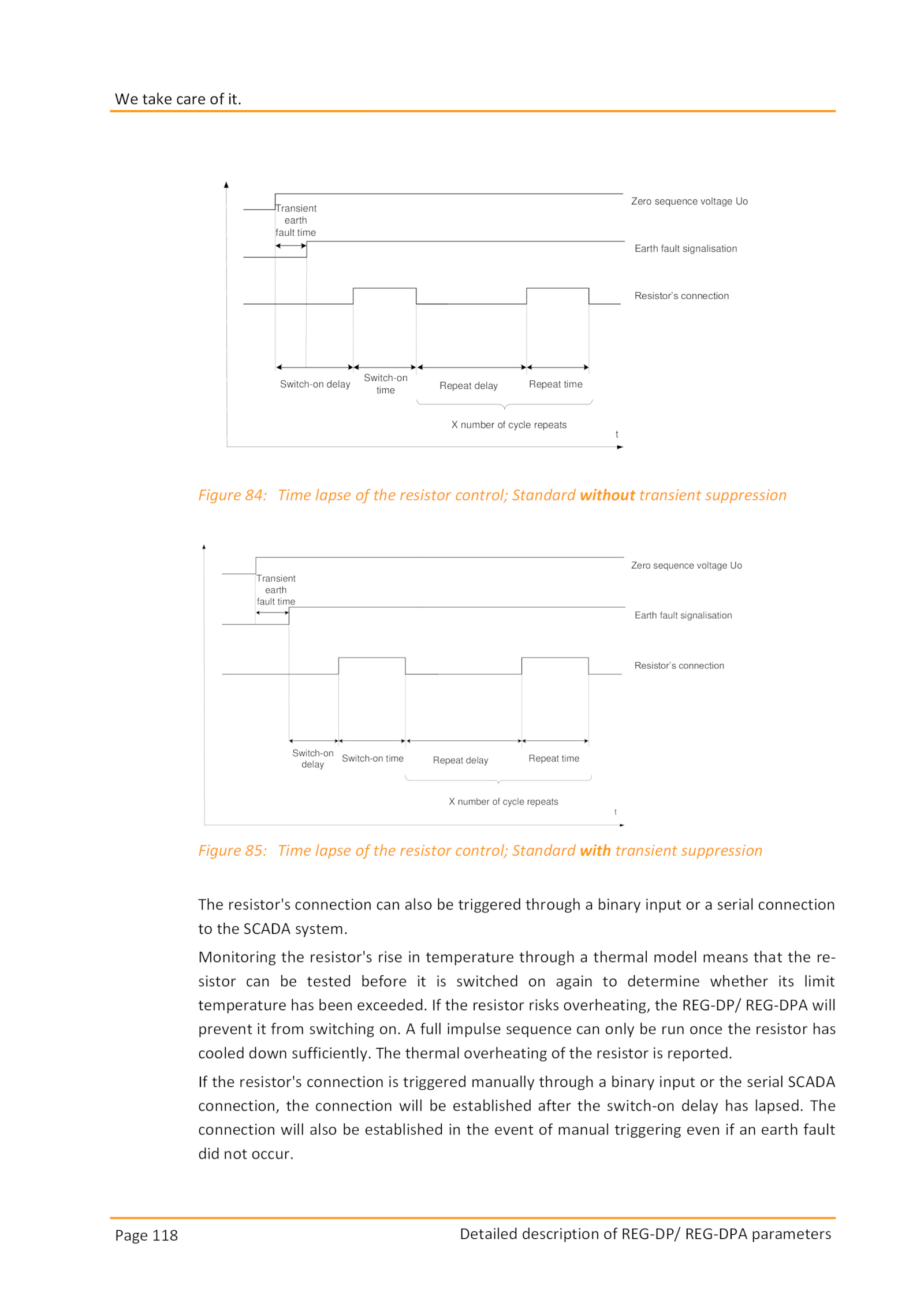

Monitoring the resistor's rise temperature through thermal model means that the re- sistor can tested before switched again determine whether its limit temperature has been exceeded. The connection will also established the event manual triggering even earth fault did not occur. . The thermal overheating the resistor reported. If the resistor's connection triggered manually through binary input the serial SCADA connection, the connection will established after the switch-on delay has lapsed. the resistor risks overheating, the REG-DP/ REG-DPA will prevent from switching on. full impulse sequence can only run once the resistor has cooled down sufficiently.Page 118 Detailed description REG-DP/ REG-DPA parameters We take care it. Zero sequence voltage Uo Earth fault signalisation Resistor’s connection Switch-on delay Switch-on time Transient earth fault time t Repeat time Repeat delay X number cycle repeats Figure 84: Time lapse the resistor control; Standard without transient suppression Zero sequence voltage Uo Earth fault signalisation Resistor’s connection Switch-on delay Switch-on time Transient earth fault time t Repeat time Repeat delay X number cycle repeats Figure 85: Time lapse the resistor control; Standard with transient suppression The resistor's connection can also triggered through binary input serial connection to the SCADA system
