Operating Instructions for the Petersen-Coil Regulator

Vydal: EBERLE Controls GmbH

Strana 117 z 272

Jak získat tento dokument?






Poznámky redaktora

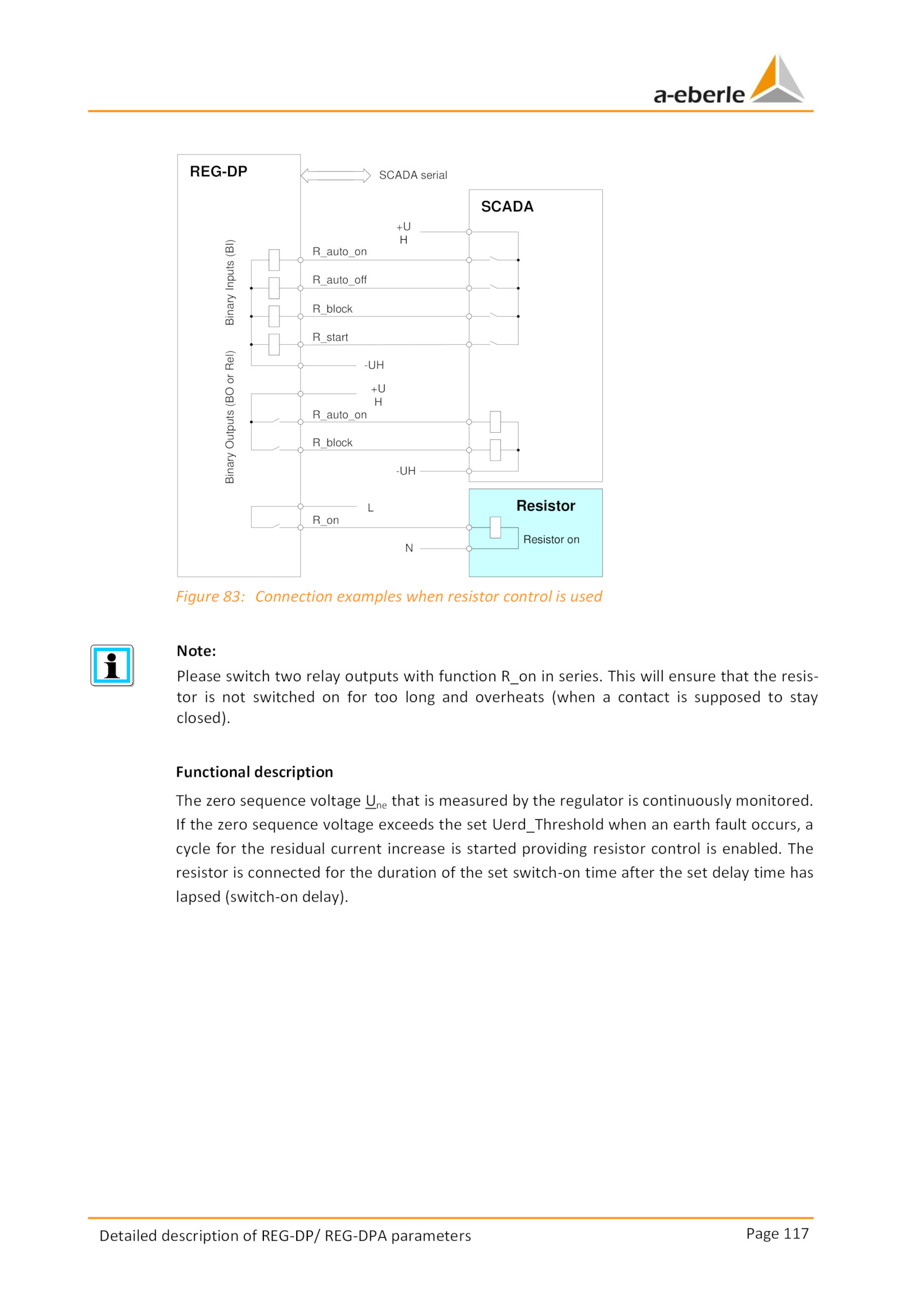

This will ensure that the resis- tor not switched for too long and overheats (when contact supposed stay closed). Functional description The zero sequence voltage Une that measured the regulator continuously monitored. If the zero sequence voltage exceeds the set Uerd_Threshold when earth fault occurs, a cycle for the residual current increase started providing resistor control enabled. The resistor connected for the duration the set switch-on time after the set delay time has lapsed (switch-on delay).Page 117 Detailed description REG-DP/ REG-DPA parameters L N Resistor on R_on +U H -UH R_block R_auto_on +U H -UH R_start R_block R_auto_off R_auto_on SCADA serial SCADA REG-DP Resistor Binary Inputs (BI) Binary Outputs (BO or Rel) Figure 83: Connection examples when resistor control used Note: Please switch two relay outputs with function R_on series.
