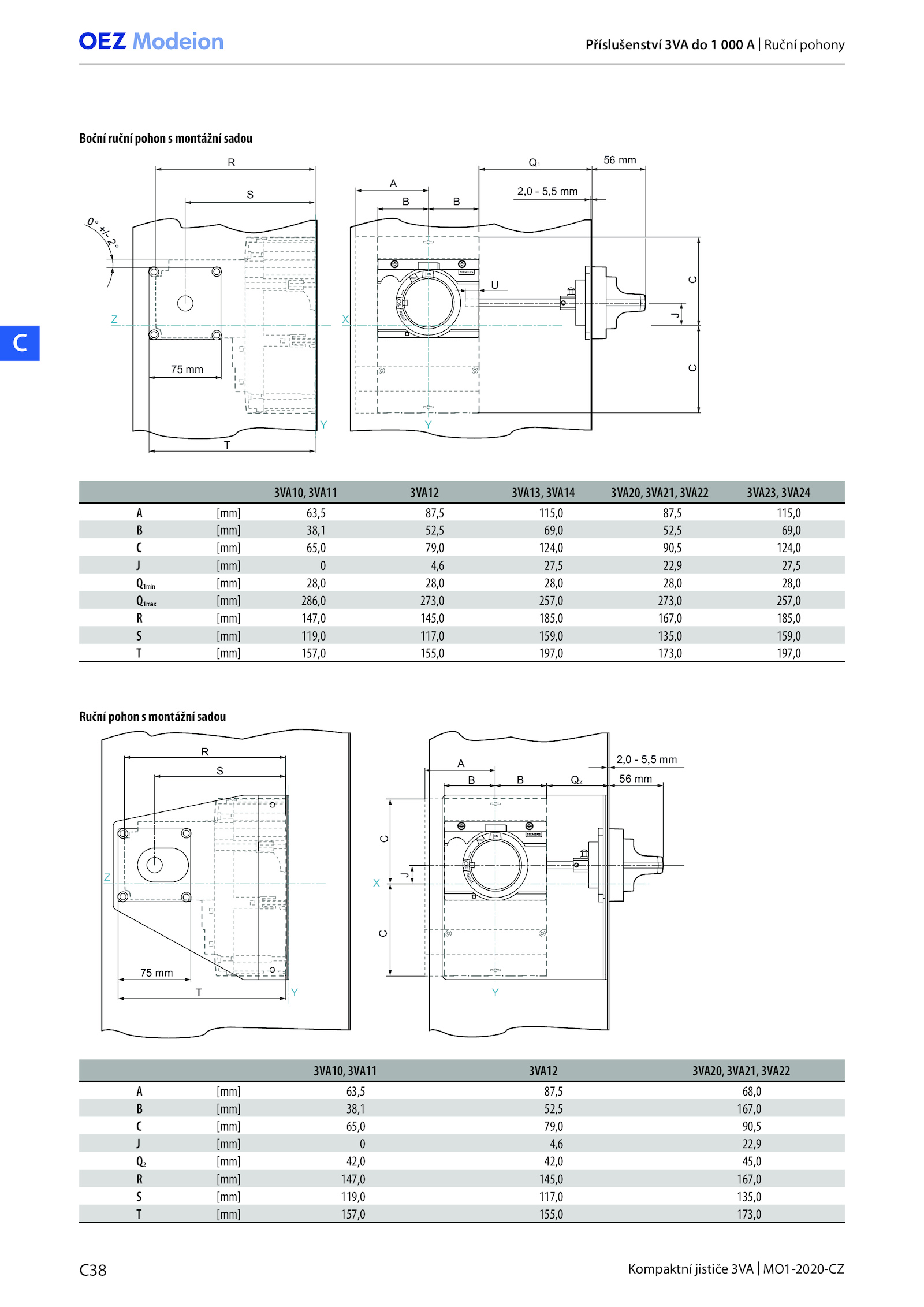

C38 Kompaktní jističe 3VA MO1-2020-CZ
C
Boční ruční pohon montážní sadou
Ruční pohon montážní sadou
OFF
TRIP
ON
R
E
S
E
T
0° +
/
-
2
°
S
R
T
75 mm
Q1 mm
C
2,0 5,5 mm
U
J
B B
A
C
Z X
Y
Y
OFF
TRIP
ON
R
E
S
E
T
S
R
T
75 mm
A
56 mm
2,0 5,5 mm
C
B
B Q2
C
J
X
Y
Z
Y
3VA10, 3VA11 3VA12 3VA13, 3VA14 3VA20, 3VA21, 3VA22 3VA23, 3VA24
A [mm] 63,5 87,5 115,0 87,5 115,0
B [mm] 38,1 52,5 69,0 52,5 69,0
C [mm] 65,0 79,0 124,0 90,5 124,0
J [mm] 4,6 27,5 22,9 27,5
Q1min [mm] 28,0 28,0 28,0 28,0 28,0
Q1max [mm] 286,0 273,0 257,0 273,0 257,0
R [mm] 147,0 145,0 185,0 167,0 185,0
S [mm] 119,0 117,0 159,0 135,0 159,0
T [mm] 157,0 155,0 197,0 173,0 197,0
3VA10, 3VA11 3VA12 3VA20, 3VA21, 3VA22
A [mm] 63,5 87,5 68,0
B [mm] 38,1 52,5 167,0
C [mm] 65,0 79,0 90,5
J [mm] 4,6 22,9
Q2 [mm] 42,0 42,0 45,0
R [mm] 147,0 145,0 167,0
S [mm] 119,0 117,0 135,0
T [mm] 157,0 155,0 173,0
Příslušenství 3VA 000 Ruční pohony
