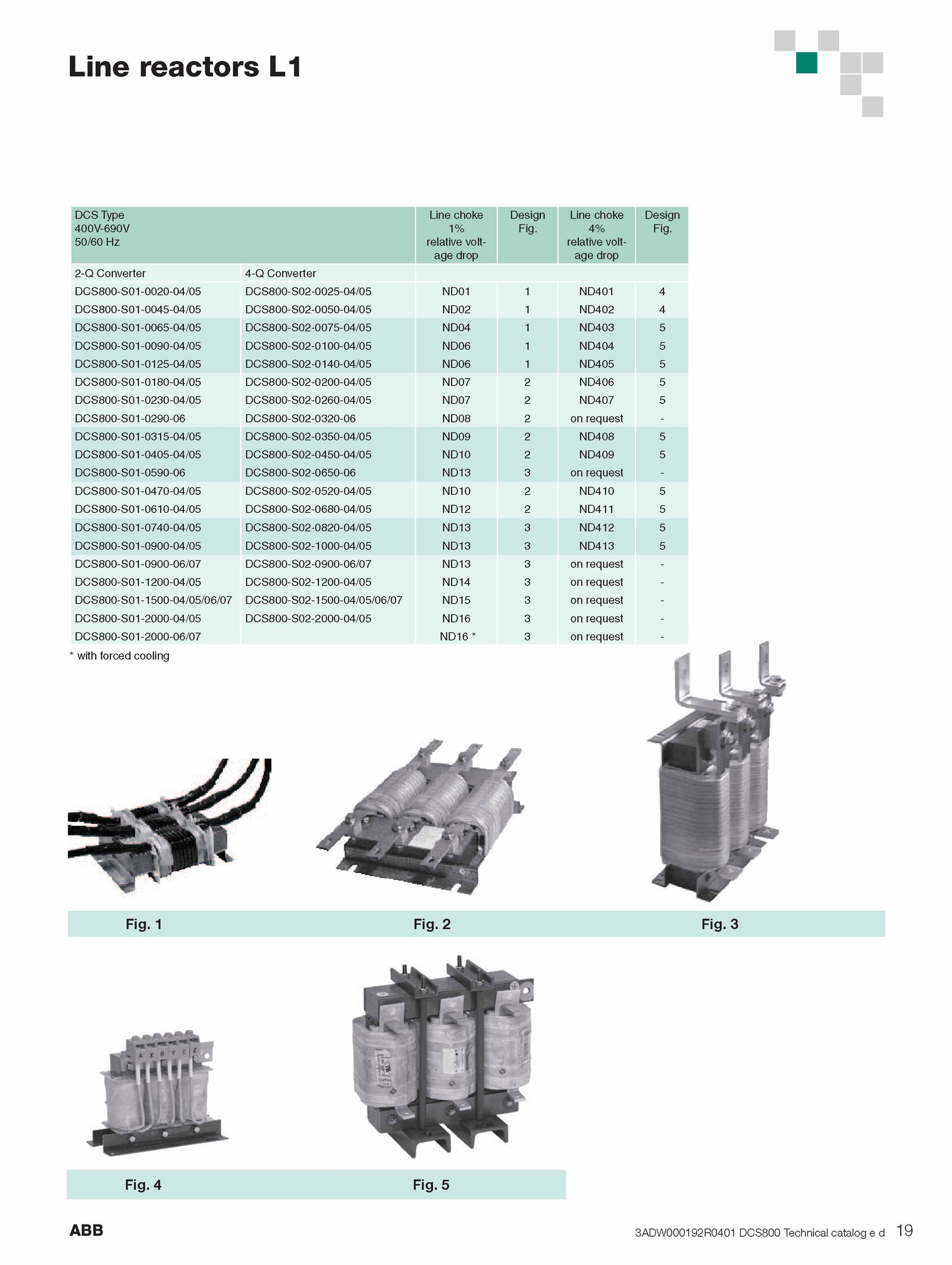

Fig.Line reactors L1 DCSType 400V-690V 50/60Hz Linechoke 1% relativevolt age drop Design Fig. 2-QConverter 4-QConverter DCS800-S01-0020-04/05 DCS800-S02-0025-04/05 ND01 ND401 4 DCS800-S01-0045-04/05 DCS800-S02-0050-04/05 ND02 ND402 4 DCS800-S01-0065-04/05 DCS800-S02-0075-04/05 ND04 ND403 5 DCS800-S01-0090-04/05 DCS800-S02-0100-04/05 ND06 ND404 5 DCS800-S01-0125-04/05 DCS800-S02-0140-04/05 ND06 ND405 5 DCS800-S01-0180-04/05 DCS800-S02-0200-04/05 ND07 ND406 5 DCS800-S01-0230-04/05 DCS800-S02-0260-04/05 ND07 ND407 5 DCS800-S01-0290-06 DCS800-S02-0320-06 ND08 onrequest - DCS800-S01-0315-04/05 DCS800-S02-0350-04/05 ND09 ND408 5 DCS800-S01-0405-04/05 DCS800-S02-0450-04/05 ND10 ND409 5 DCS800-S01-0590-06 DCS800-S02-0650-06 ND13 onrequest - DCS800-S01-0470-04/05 DCS800-S02-0520-04/05 ND10 ND410 5 DCS800-S01-0610-04/05 DCS800-S02-0680-04/05 ND12 ND411 5 DCS800-S01-0740-04/05 DCS800-S02-0820-04/05 ND13 ND412 5 DCS800-S01-0900-04/05 DCS800-S02-1000-04/05 ND13 ND413 5 DCS800-S01-0900-06/07 DCS800-S02-0900-06/07 ND13 onrequest - DCS800-S01-1200-04/05 DCS800-S02-1200-04/05 ND14 onrequest - DCS800-S01-1500-04/05/06/07 DCS800-S02-1500-04/05/06/07 ND15 onrequest - DCS800-S01-2000-04/05 DCS800-S02-2000-04/05 ND16 onrequest - DCS800-S01-2000-06/07 ND16* onrequest - Fig. Linechoke 4% relativevolt age drop Design Fig. 3 ABB 3ADW 000192R 0401 S800 Technical catalog. Fig
