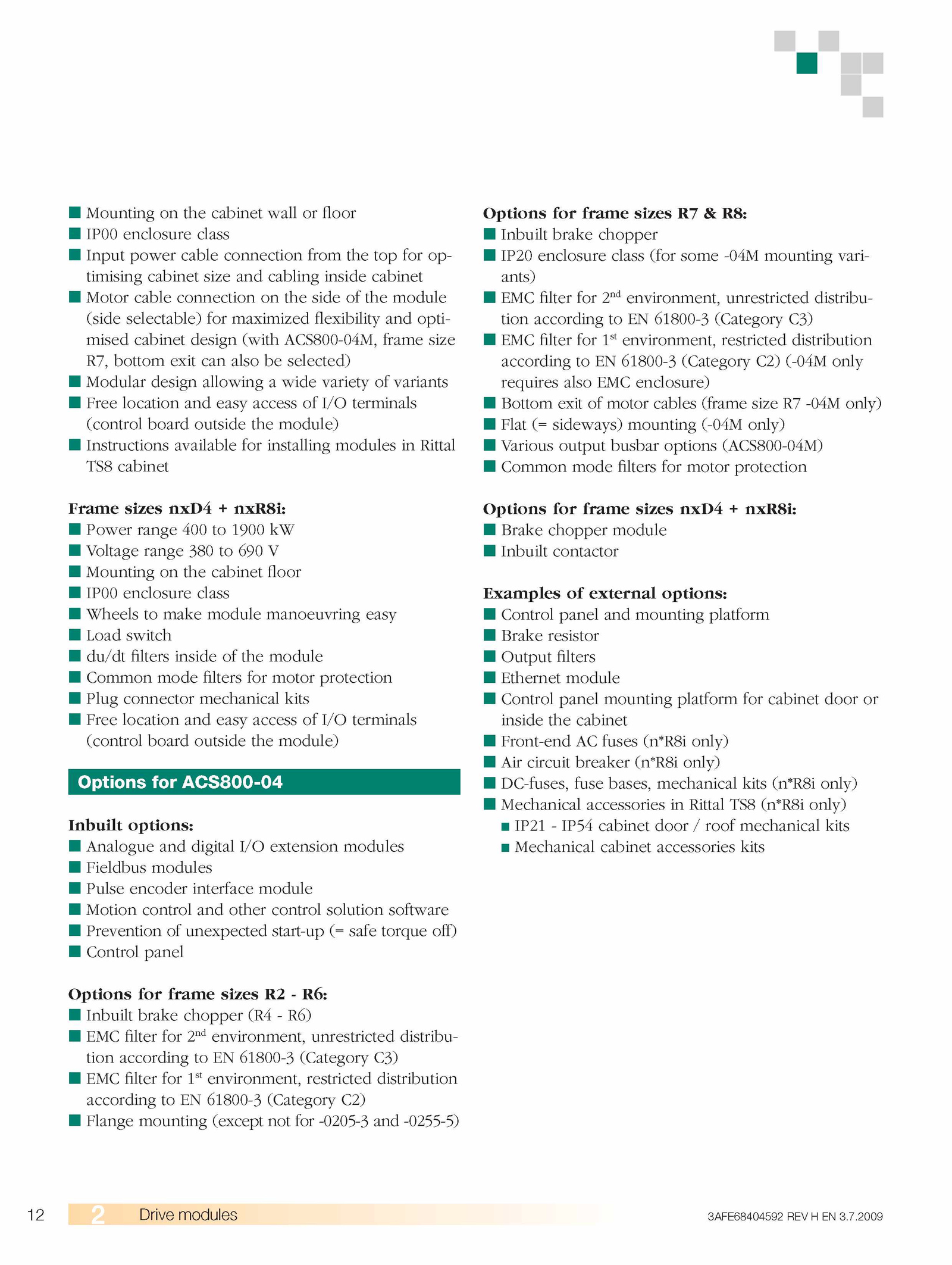

2009 .Mounting the cabinet wall floor ■ IP00 enclosure class ■ Input pow cable connection from the top for op timising cabinet size and cabling inside cabinet ■ Motor cable connection the side the module (side selectable) for maximized flexibility and opti mised cabinet design (with ACS800-04M, frame size R7, bottom exit can also selected) ■ Modular design allowing wide variety variants ■ Free location and easy access I/O terminals (control board outside the module) ■ Instructions available for installing modules Rittal TS8 cabinet Frame sizes nxD4 nxR8i: ■ Power range 400 1900 kW ■ Voltage range 380 690 V ■ Mounting the cabinet floor ■ IP00 enclosure class ■ heels make module manoeuvring easy ■ Load switch ■ du/dt filters inside the module ■ Common ode filters for motor protection ■ Plug connector echanical kits ■ Free location and easy access I/O terminals (control board outside the module) Options for ACS800-04 Inbuilt options: ■ Analogue and digital I/O extension modules ■ Fieldbus modules ■ Pulse encoder interface module ■ Motion control and other control solution software ■ Prevention unexpected start-up safe torque off) ■ Control panel Options for frame sizes R6: ■ Inbuilt brake chopper (R4 R6) ■ EMC filter for 2nd environment, unrestricted distribu tion according 61800-3 (Category C3) ■ EMC filter for 1st environment, restricted distribution according 61800-3 (Category C2) ■ Flange mounting (except not for -0205-3 and -0255-5) Options for frame sizes R8: ■ Inbuilt brake chopper ■ IP20 enclosure class (for som -04M mounting vari ants) ■ EMC filter for 2nd environment, unrestricted distribu tion according 61800-3 (Category C3) ■ EMC filter for 1st environment, restricted distribution according 61800-3 (Category C2) (-04M only requires also EMC enclosure) ■ Bottom exit motor cables (frame size -04M only) ■ Flat sideways) mounting (-04M only) ■ Various output busbar options (ACS800-04M) ■ Common ode filters for motor protection Options for frame sizes nxD4 nxR8i: ■ Brake chopper module ■ Inbuilt contactor Examples external options: ■ Control panel and mounting platform ■ Brake resistor ■ Output filters ■ Ethernet module ■ Control panel mounting platform for cabinet door or inside the cabinet ■ Front-end fuses (n*R8i only) ■ Air circuit breaker (n*R8i only) ■ DC-fuses, fuse bases, echanical kits (n*R8i only) ■ echanical accessories Rittal TS8 (n*R8i only) ■ IP21 IP54 cabinet door roof echanical kits ■ echanical cabinet accessories kits 12 Drive modules FE68404592 REV 3.7
