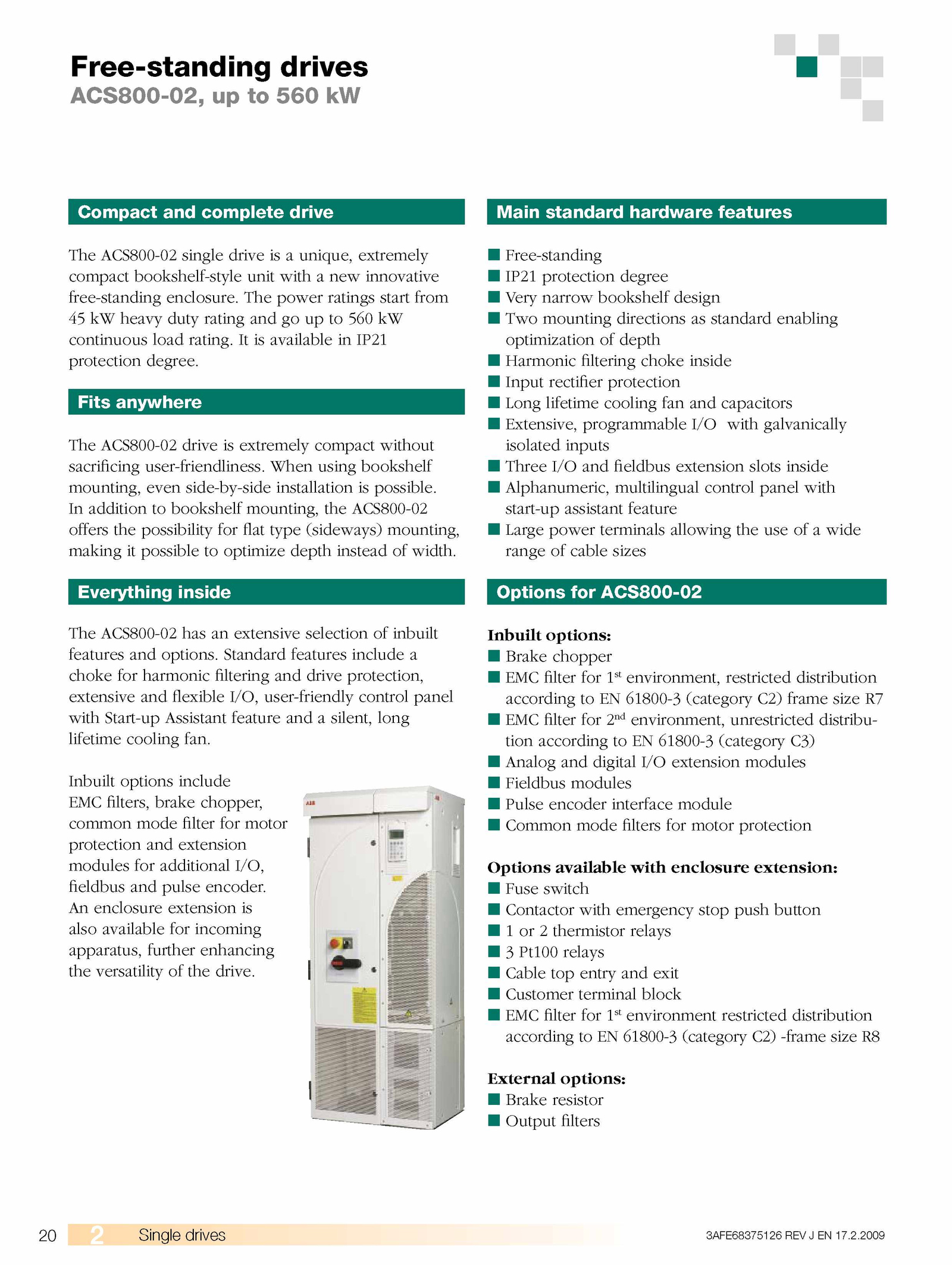

fieldbus and pulse encoder.Free-standing drives
ACS800-02, 560 kW
Compact and complete drive
The ACS800-02 single drive unique, extremely
com pact bookshelf-style unit with new innovative
free-standing enclosure. available IP21
protection degree. hen using bookshelf
mounting, even side-by-side installation possible. Standard features include a
choke for harmonic filtering and drive protection,
extensive and flexible I/O, user-friendly control panel
with Start-up Assistant feature and silent, long
lifetime cooling fan.
Main standard hardware features
■ Free-standing
■ IP21 protection degree
■ Very narrow bookshelf design
■ Two mounting directions standard enabling
optimization depth
■ Harmonic filtering choke inside
■ Input rectifier protection
■ Long lifetime cooling fan and capacitors
■ Extensive, programmable I/O with galvanically
isolated inputs
■ Three I/O and fieldbus extension slots inside
■ Alphanumeric, multilingual control panel with
start-up assistant feature
■ Large pow terminals allowing the use wide
range cable sizes
Options for ACS800-02
Inbuilt options:
■ Brake chopper
■ EMC filter for 1st environment, restricted distribution
according 61800-3 (category C2) frame size R7
■ EMC filter for 2nd environment, unrestricted distribu
tion according 61800-3 (category C3)
■ Analog and digital I/O extension modules
■ Fieldbus modules
■ Pulse encoder interface module
■ Common ode filters for motor protection
Options available with enclosure extension:
■ Fuse switch
■ Contactor with ergency stop push button
■ thermistor relays
■ Pt100 relays
■ Cable top entry and exit
■ Customer terminal block
■ EMC filter for 1st environment restricted distribution
according 61800-3 (category C2) -frame size R8
External options:
■ Brake resistor
■ Output filters
20 Single drives 68375126 REV 17.
An enclosure extension is
also available for incoming
apparatus, further enhancing
the versatility the drive.
In addition bookshelf mounting, the ACS800-02
offers the possibility for flat type (sideways) mounting,
making possible optimize depth instead width. The pow ratings start from
45 heavy duty rating and 560 kW
continuous load rating.
Fits anywhere
The ACS800-02 drive extremely com pact without
sacrificing user-friendliness.2.
Everything inside
The ACS800-02 has extensive selection inbuilt
features and options
