The default values ake DriveSize simple use, and
the user provided with ample options for drive
selection.tools

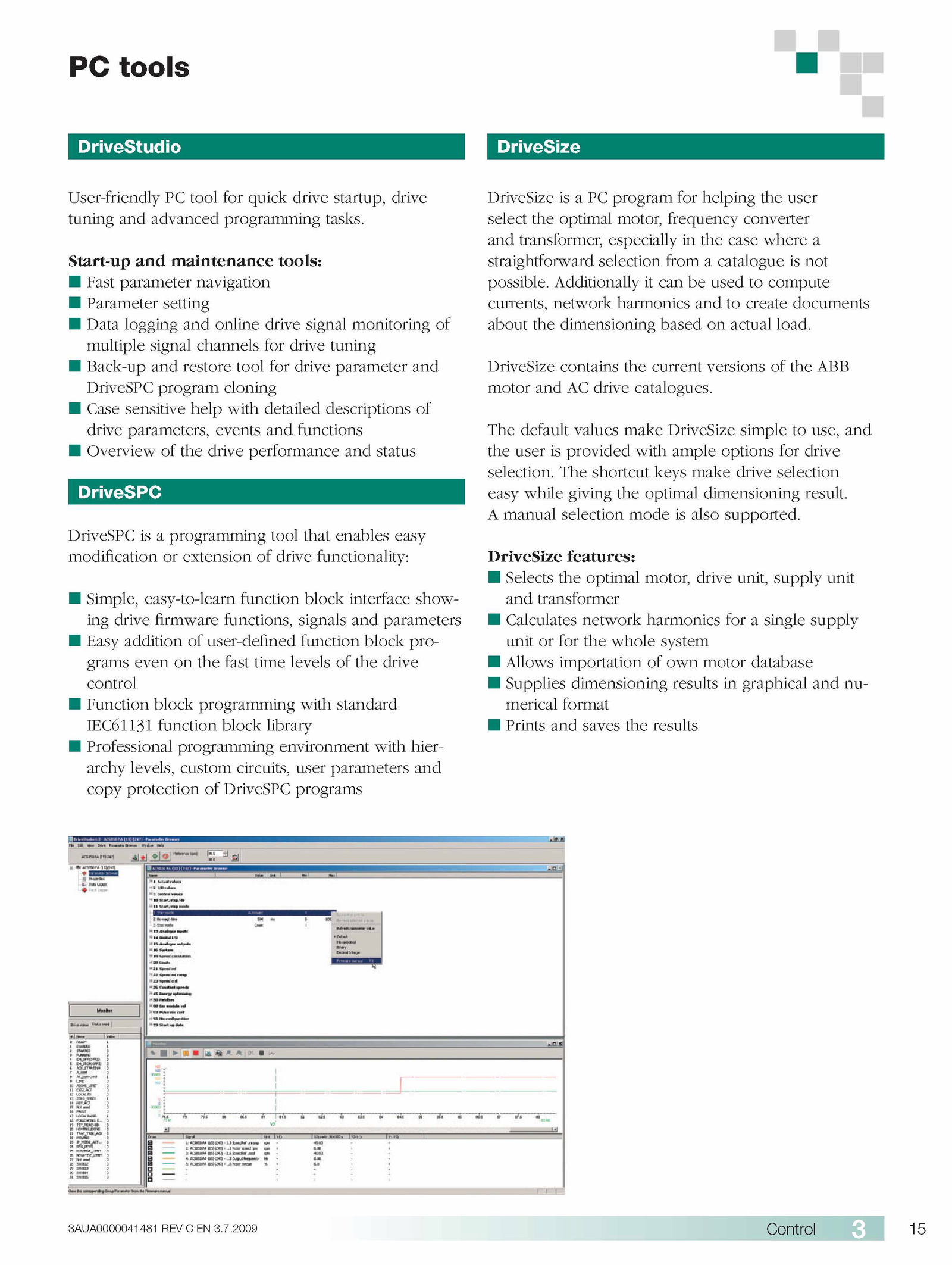

DriveStudio
User-friendly tool for quick drive startup, drive
tuning and advanced programming tasks. The shortcut keys ake drive selection
easy while giving the optimal dimensioning result.
Start-up and maintenance tools:
■ Fast parameter navigation
■ Parameter setting
■ Data logging and online drive signal monitoring of
multiple signal channels for drive tuning
■ Back-up and restore tool for drive parameter and
DriveSPC program cloning
■ Case sensitive help with detailed descriptions of
drive parameters, events and functions
■ Overview the drive perform ance and status
DriveSPC
DriveSPC programming tool that enables easy
modification extension drive functionality:
■ Simple, easy-to-learn function block interface show
ing drive firmware functions, signals and parameters
■ Easy addition user-defined function block pro
grams even the fast time levels the drive
control
■ Function block programming with standard
IEC61131 function block library
■ Professional programming environment with hier
archy levels, custom circuits, user parameters and
copy protection DriveSPC programs
DriveSize
DriveSize program for helping the user
select the optimal motor, frequency converter
and transformer, especially the case where a
straightforward selection from catalogue not
possible. Additionally can used compute
currents, network harmonics and create documents
about the dimensioning based actual load.
A manual selection ode also supported.
DriveSize features:
■ Selects the optimal motor, drive unit, supply unit
and transformer
■ Calculates network harmonics for single supply
unit for the hole system
■ Allows importation motor database
■ Supplies dimensioning results graphical and nu
m erical format
■ Prints and saves the results
.
DriveSize contains the current versions the ABB
m otor and drive catalogues
