0 mm
Assembly instructions
optional reducing sleeves
(depending the package and the corresponding sensor)
Model JMA-Thickness -08 -12 -20 -27
Shock (DIN 60068-2-27) 15g XYZ axis, 1000 shocks each
Vibration (DIN 60068-2-6) 500 XYZ axis, cycles each
Adjustment mechanism Screw setting mechanism via M3x0.5 mm
Allen wrench 3.5
Sensor mounting
Radial clamping
for mm
Radial clamping
for mm
Radial clamping
for mm
Radial clamping
for mm
Compatibility
confocalDT:
IFS2403 series
confocalDT:
IFS2404-2
IFS2407-0,1
confocalDT:
IFS2406-2,5/VAC
interferoMETER:
IMP-TH70
confocalDT:
IFS2405-0,3
IFS2405-1
IFS2406-3
IFS2406-10
IFD2411-x
More precision with two-sided thickness measurements
With JMA-Thickness:
Measures exactly the opposite position
Without JMA-Thickness:
Measurement error with tilted target
Without JMA-Thickness:
Incorrect thickness measurement with vibrations
Without JMA-Thickness:
Sensors positioned incorrectly thickness measurement
possible
With JMA-Thickness:
Sensors are one optical axis –
provides stability even with vibrating objects
With JMA-Thickness:
Optimal positioning support object visible for both sensors
.5 mm
Allen wrench 2.25 screw with hexagon socket 1.
Scope supply
JMA-xx
JMP mounting plate
hexagon screwdriver 1. This prevents measurements offset and reliable
measurement result achieved with the highest possible precision. After installation into the machine, the plate can removed,
if necessary. This means that the measuring points are arranged absolutely
congruent each other that the sensors are positioned exactly on
an optical axis. This simplifies
installation and the measuring system can put into operation more
quickly.
When delivered, the two mounting adapters are pre-mounted on
a mounting plate and aligned with one another.39
Accessories

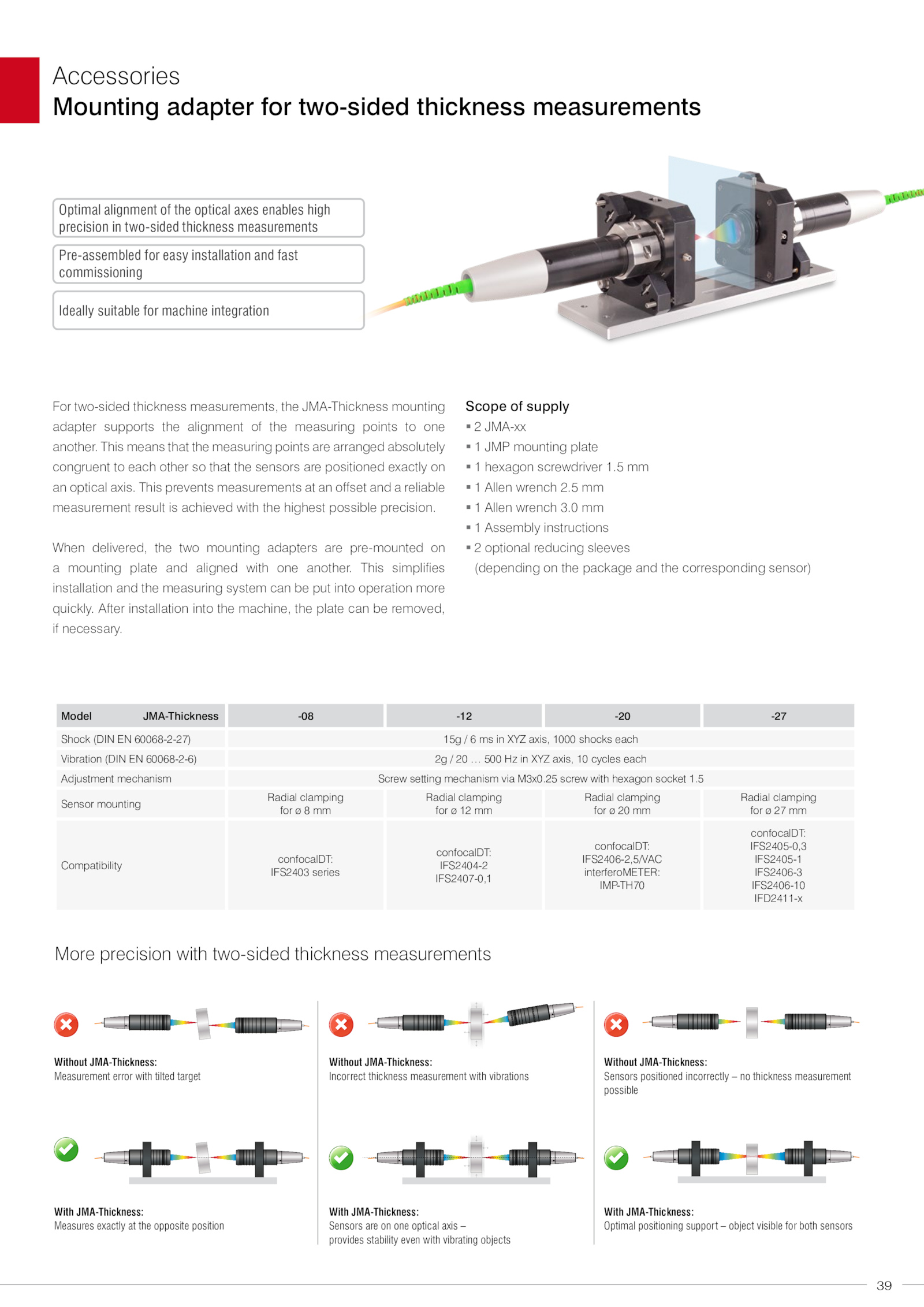

Mounting adapter for two-sided thickness measurements
Optimal alignment the optical axes enables high
precision two-sided thickness measurements
Pre-assembled for easy installation and fast
commissioning
Ideally suitable for machine integration
For two-sided thickness measurements, the JMA-Thickness mounting
adapter supports the alignment the measuring points one
another
