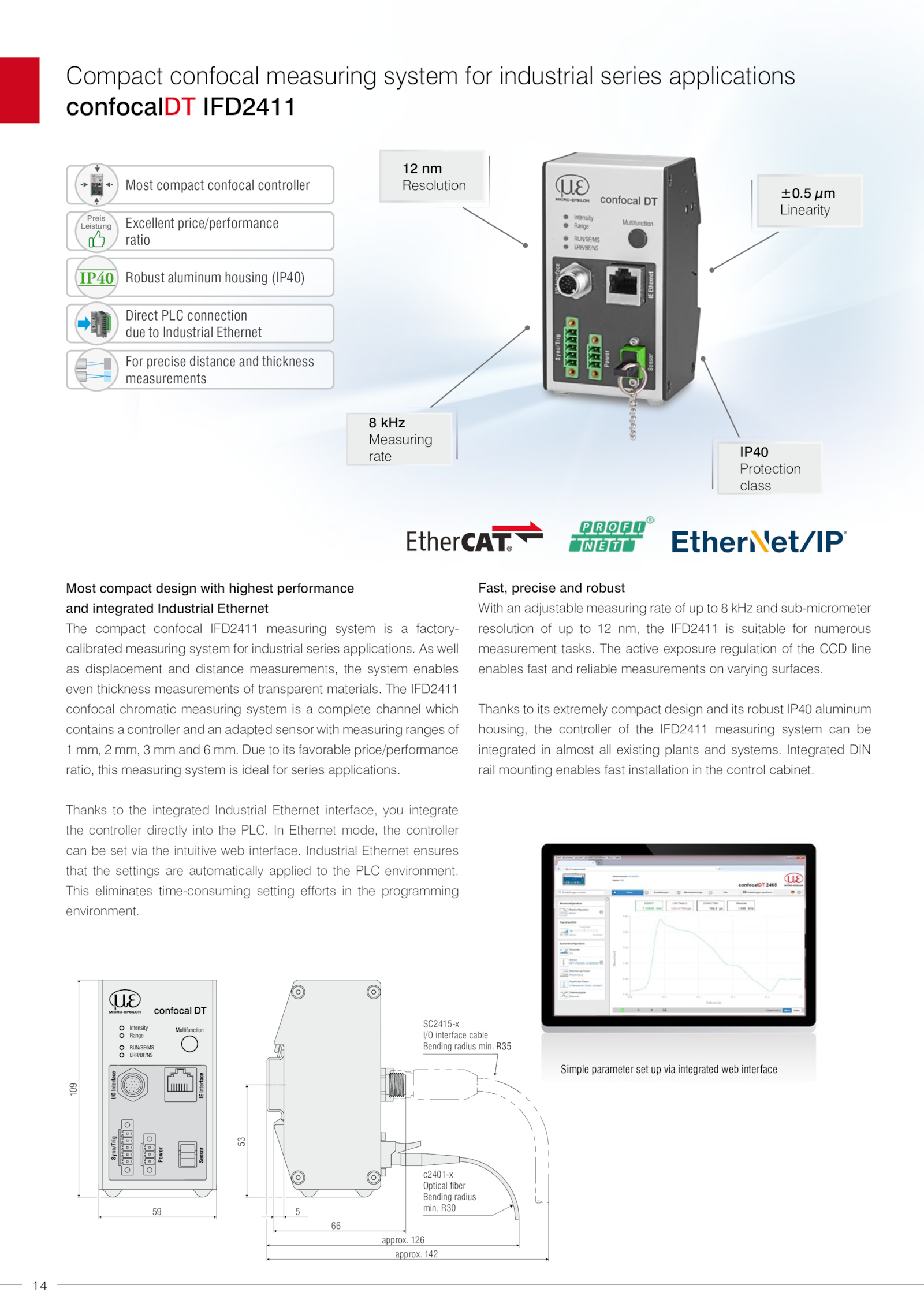

Compact confocal measuring system for industrial series applications
confocalDT IFD2411
Most compact confocal controller
Excellent price/performance
ratio
Preis
Leistung
Robust aluminum housing (IP40)
IP40
Direct PLC connection
due Industrial Ethernet
For precise distance and thickness
measurements
12 nm
Resolution
8 kHz
Measuring
rate
±0. The IFD2411
confocal chromatic measuring system complete channel which
contains controller and adapted sensor with measuring ranges of
1 mm, mm, and mm. Due its favorable price/performance
ratio, this measuring system ideal for series applications.5 µm
Linearity
IP40
Protection
class
Most compact design with highest performance
and integrated Industrial Ethernet
The compact confocal IFD2411 measuring system factory-
calibrated measuring system for industrial series applications. 142
5
59
109
53
Simple parameter set via integrated web interface
. Integrated DIN
rail mounting enables fast installation the control cabinet.
Thanks its extremely compact design and its robust IP40 aluminum
housing, the controller the IFD2411 measuring system can be
integrated almost all existing plants and systems. Ethernet mode, the controller
can set via the intuitive web interface.
Fast, precise and robust
With adjustable measuring rate kHz and sub-micrometer
resolution nm, the IFD2411 suitable for numerous
measurement tasks. well
as displacement and distance measurements, the system enables
even thickness measurements transparent materials. 126
approx.
Thanks the integrated Industrial Ethernet interface, you integrate
the controller directly into the PLC. Industrial Ethernet ensures
that the settings are automatically applied the PLC environment. R30
SC2415-x
I/O interface cable
Bending radius min. R35
66
approx. The active exposure regulation the CCD line
enables fast and reliable measurements varying surfaces.
c2401-x
Optical fiber
Bending radius
min.
This eliminates time-consuming setting efforts the programming
environment
