System design
confocalDT

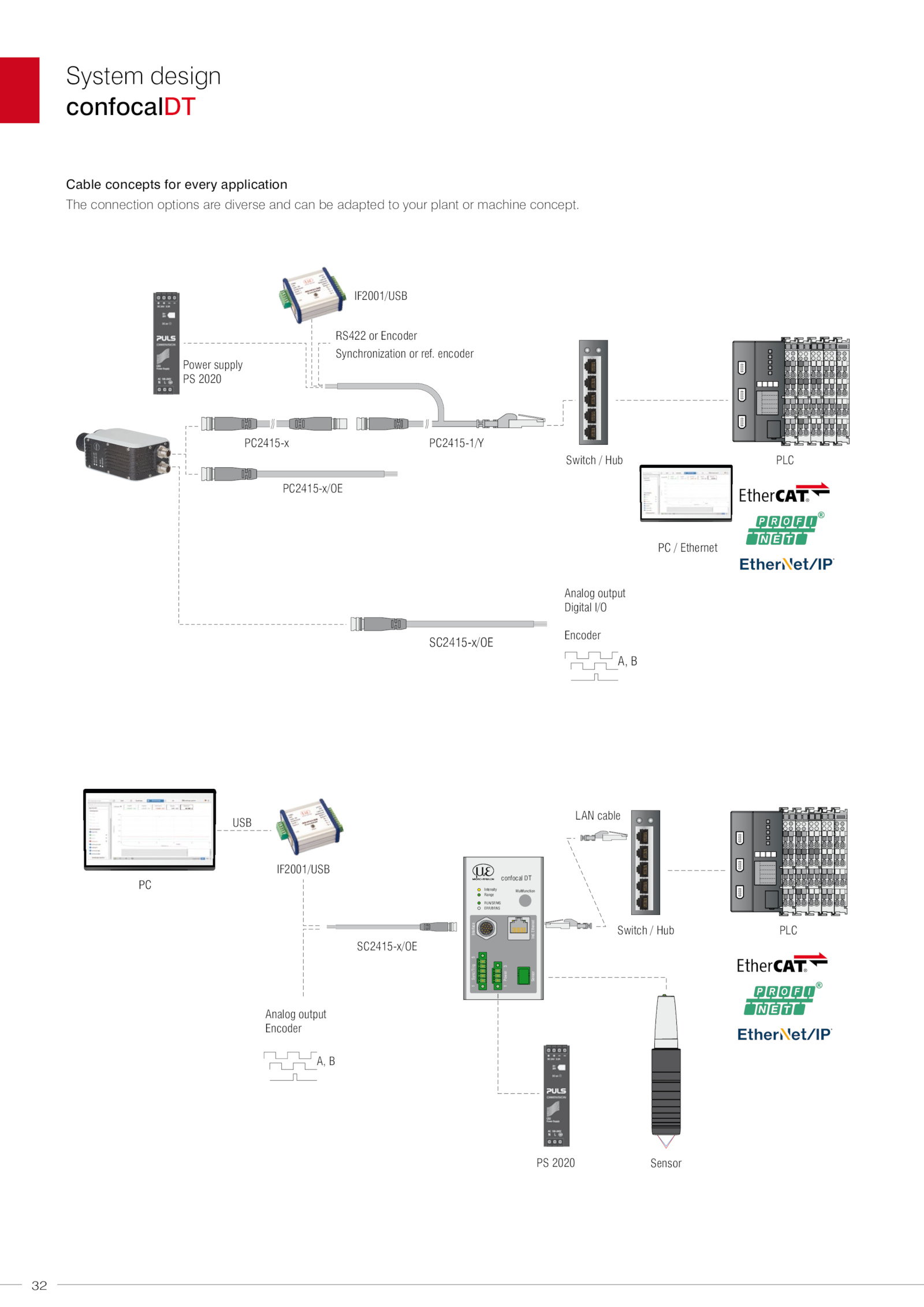

Cable concepts for every application
The connection options are diverse and can adapted your plant machine concept.
Power supply
PS 2020
PC2415-1/Y
PC2415-x
RS422 Encoder
Synchronization ref. encoder
PC2415-x/OE
B
A
B
A
Switch Hub PLC
PC Ethernet
SC2415-x/OE
Analog output
Digital I/O
Encoder
A, B
IF2001/USB
Intensity Multifunction
1
Power
3
Sensor
1
Sync/Trig
5
Interface
Ind.
Ethernet
confocal DT
Range
RUN/SF/MS
ERR/BF/NS
Sensor
IF2001/USB
USB
SC2415-x/OE
B
A
B
A
Switch Hub
LAN cable
PLC
PC
Analog output
Encoder
A, B
PS 2020
