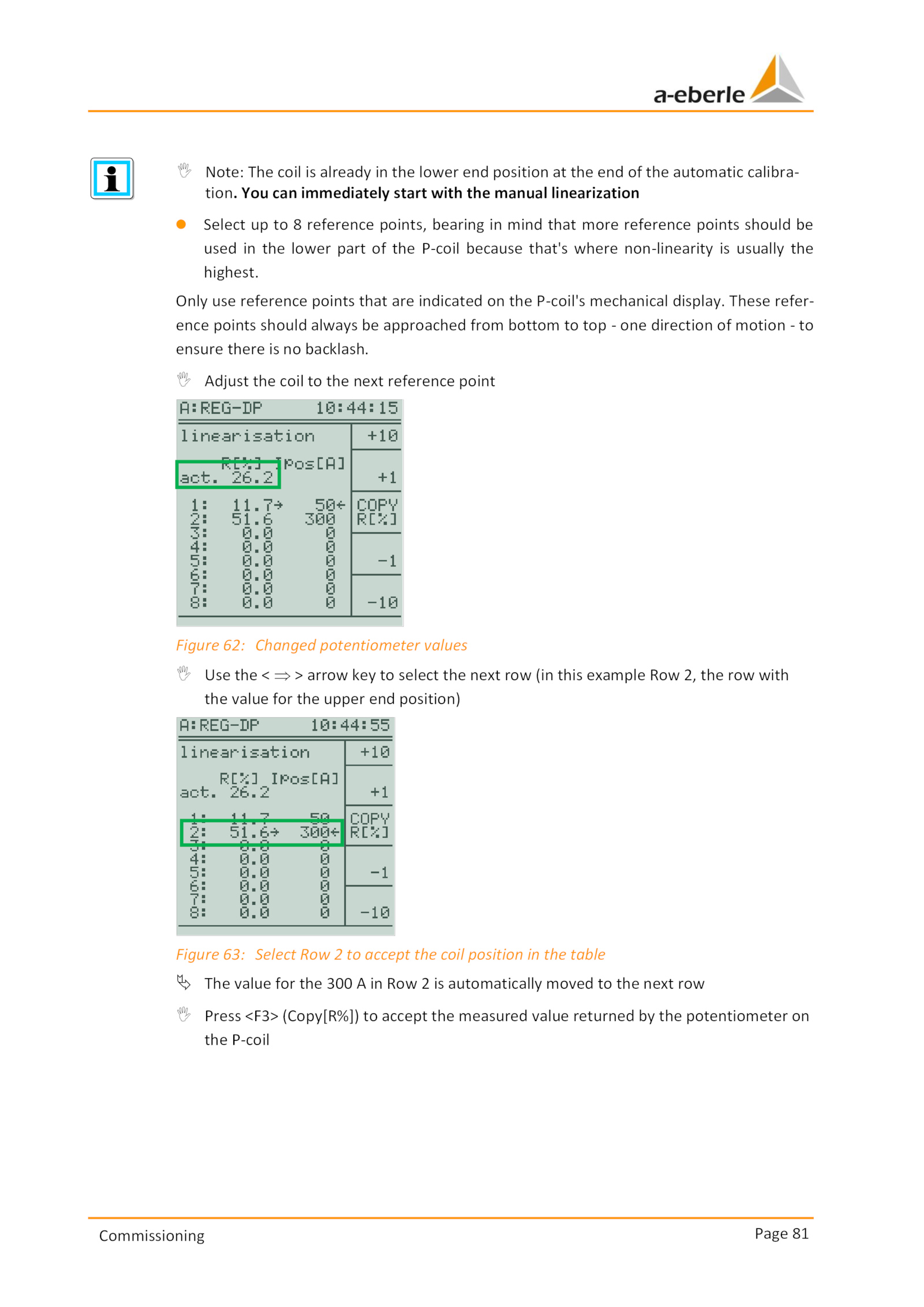

Page 81
Commissioning
Note: The coil already the lower end position the end the automatic calibra-
tion. You can immediately start with the manual linearization
0 Select reference points, bearing mind that more reference points should be
used the lower part the P-coil because that's where non-linearity usually the
highest. These refer-
ence points should always approached from bottom top one direction motion to
ensure there backlash.
Only use reference points that are indicated the P-coil's mechanical display.
Adjust the coil the next reference point
Figure 62: Changed potentiometer values
Use the arrow key select the next row (in this example Row the row with
the value for the upper end position)
Figure 63: Select Row accept the coil position the table
The value for the 300 Row automatically moved the next row
Press <F3> (Copy[R%]) accept the measured value returned the potentiometer on
the P-coil
