Operating Instructions for the Petersen-Coil Regulator

Vydal: EBERLE Controls GmbH

Strana 46 z 272

Jak získat tento dokument?






Poznámky redaktora

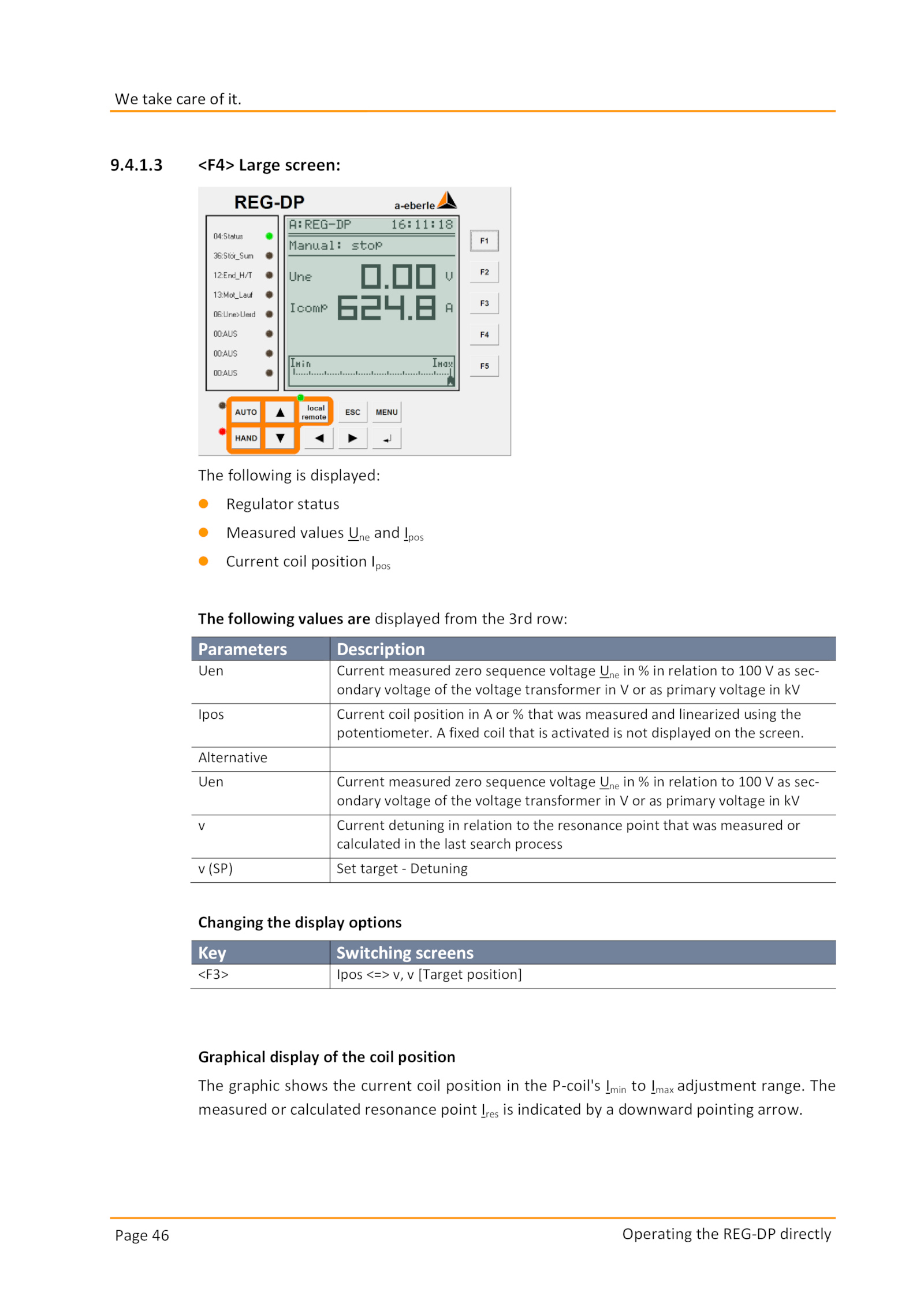

9.Page Operating the REG-DP directly We take care it. The measured calculated resonance point Ires indicated downward pointing arrow.1. fixed coil that activated not displayed the screen. .4. Alternative Uen Current measured zero sequence voltage Une relation 100 sec- ondary voltage the voltage transformer primary voltage kV v Current detuning relation the resonance point that was measured or calculated the last search process v (SP) Set target Detuning Changing the display options Key Switching screens <F3> Ipos <=> [Target position] Graphical display the coil position The graphic shows the current coil position the P-coil's Imin Imax adjustment range.3 <F4> Large screen: The following displayed: 0 Regulator status 0 Measured values Une and Ipos 0 Current coil position Ipos The following values are displayed from the 3rd row: Parameters Description Uen Current measured zero sequence voltage Une relation 100 sec- ondary voltage the voltage transformer primary voltage kV Ipos Current coil position that was measured and linearized using the potentiometer
