v Current detuning relation the resonance point that was measured or
calculated the last search process
Iw Calculated active current component across the faulty section when a
low impedance earth fault occurs.1.1 <F2> Resonance curve:

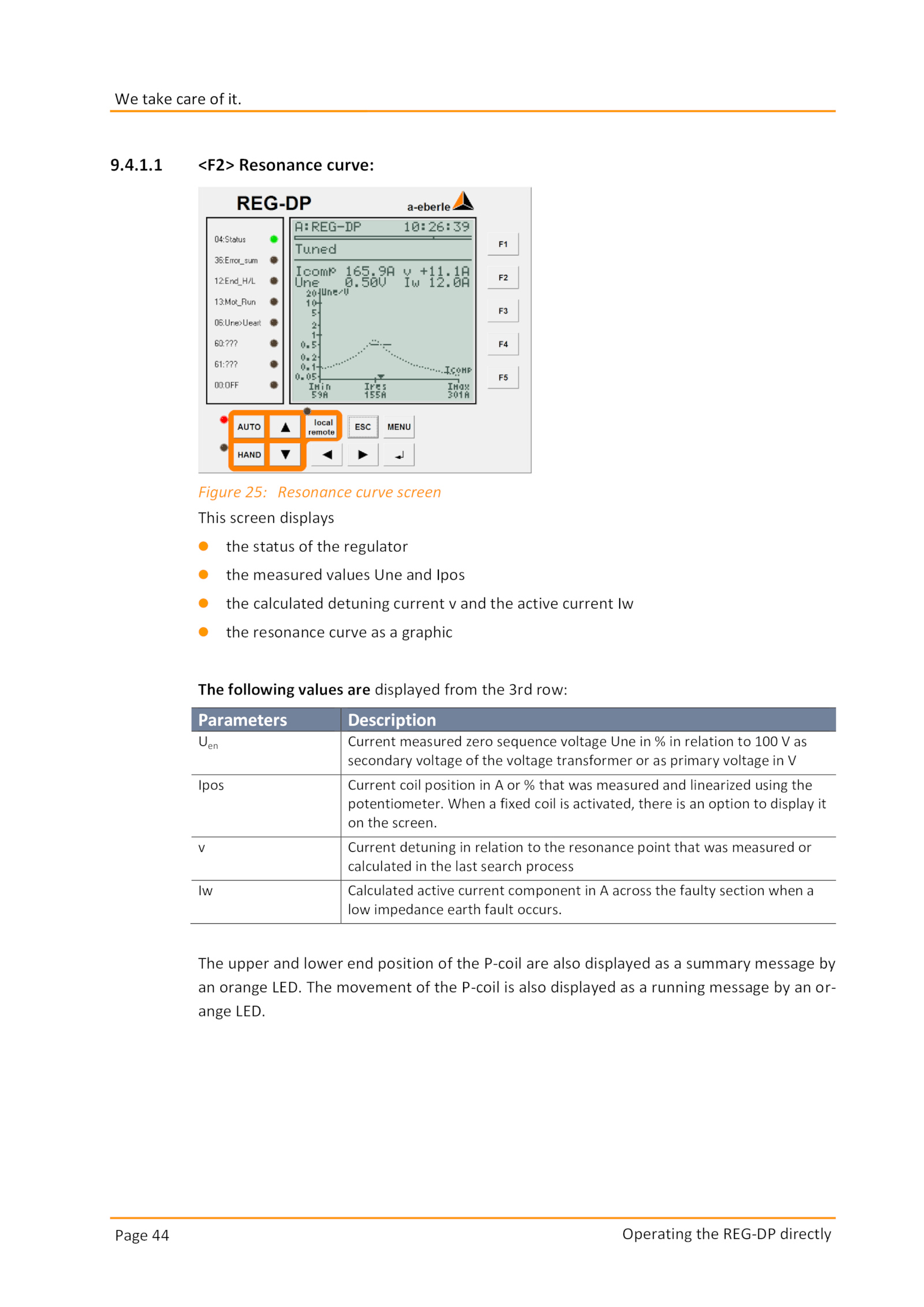

Figure 25: Resonance curve screen
This screen displays
0 the status the regulator
0 the measured values Une and Ipos
0 the calculated detuning current and the active current Iw
0 the resonance curve graphic
The following values are displayed from the 3rd row:
Parameters Description
Uen Current measured zero sequence voltage Une relation 100 as
secondary voltage the voltage transformer primary voltage V
Ipos Current coil position that was measured and linearized using the
potentiometer.
.4. When fixed coil activated, there option display it
on the screen.
The upper and lower end position the P-coil are also displayed summary message by
an orange LED.Page Operating the REG-DP directly
We take care it. The movement the P-coil also displayed running message or-
ange LED.
9
