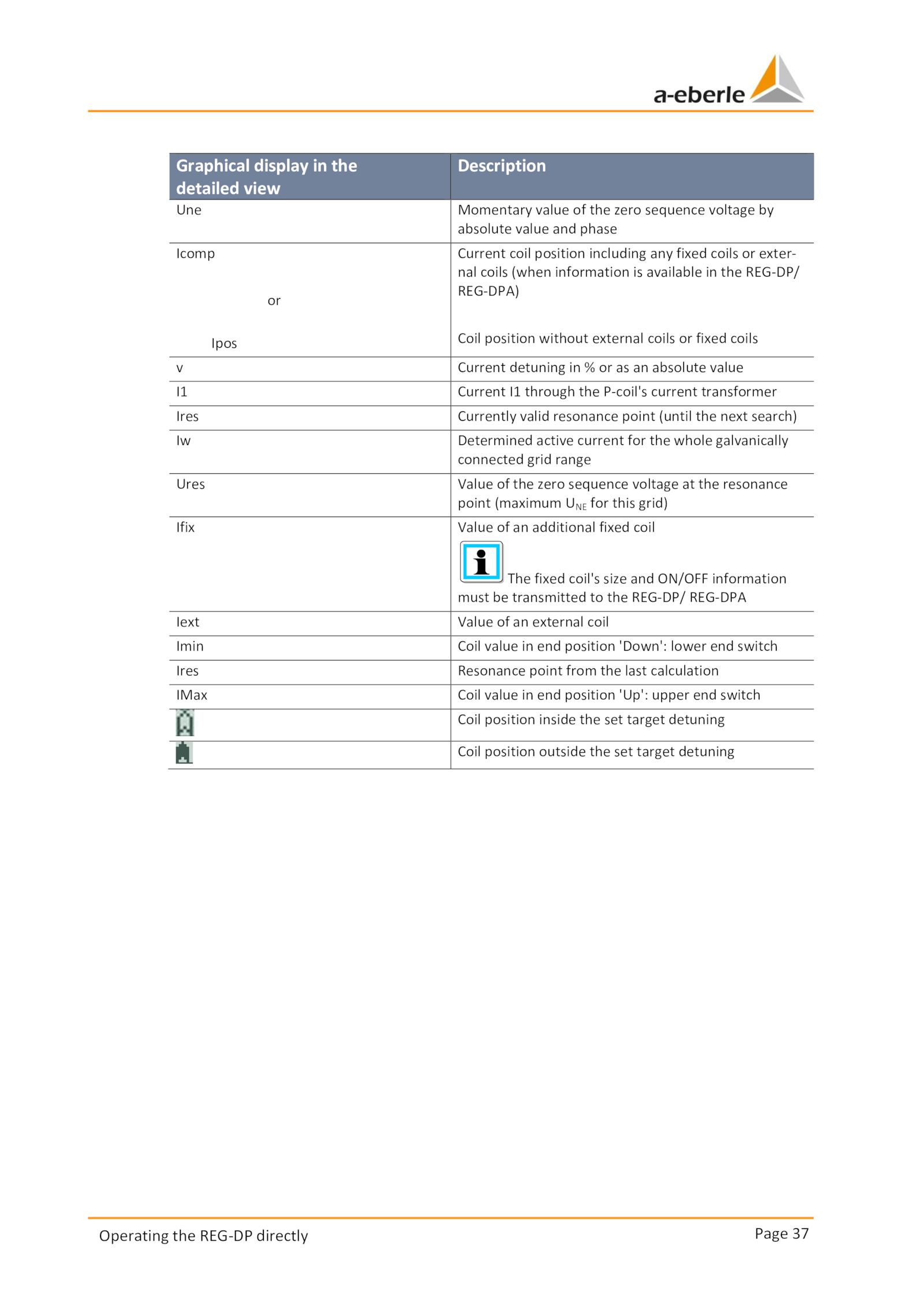

Page 37
Operating the REG-DP directly
Graphical display the
detailed view
Description
Une Momentary value the zero sequence voltage by
absolute value and phase
Icomp
or
Ipos
Current coil position including any fixed coils exter-
nal coils (when information available the REG-DP/
REG-DPA)
Coil position without external coils fixed coils
v Current detuning absolute value
I1 Current through the P-coil's current transformer
Ires Currently valid resonance point (until the next search)
Iw Determined active current for the whole galvanically
connected grid range
Ures Value the zero sequence voltage the resonance
point (maximum UNE for this grid)
Ifix Value additional fixed coil
The fixed coil's size and ON/OFF information
must transmitted the REG-DP/ REG-DPA
Iext Value external coil
Imin Coil value end position 'Down': lower end switch
Ires Resonance point from the last calculation
IMax Coil value end position 'Up': upper end switch
Coil position inside the set target detuning
Coil position outside the set target detuning
