9.1.1 Description the display fields
time
Name the controller
Adress E-LAN
Status-line
LCD-display

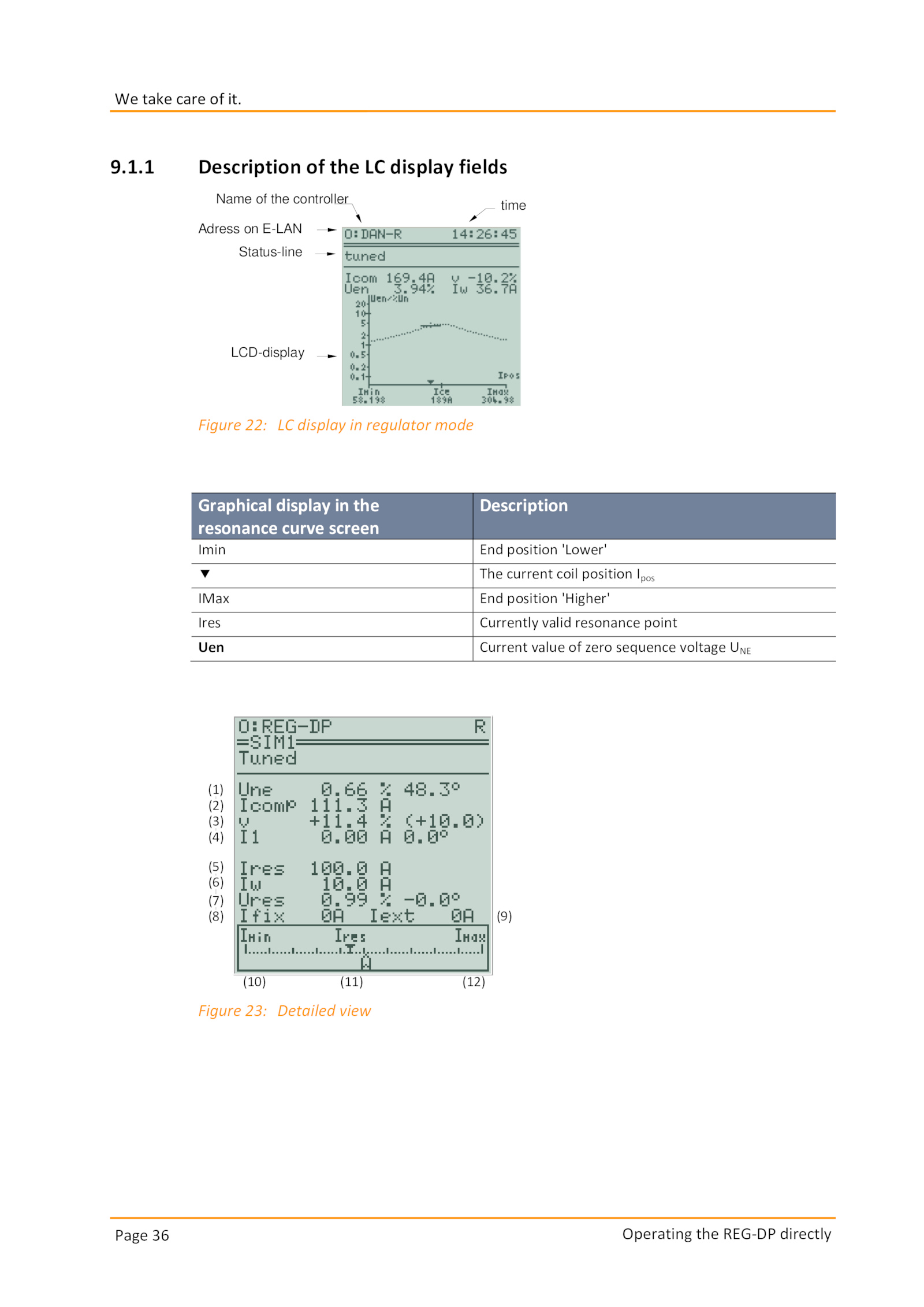

Figure 22: display regulator mode
Graphical display the
resonance curve screen
Description
Imin End position 'Lower'
The current coil position Ipos
IMax End position 'Higher'
Ires Currently valid resonance point
Uen Current value zero sequence voltage UNE
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8) (9)
(10) (11) (12)
Figure 23: Detailed view
