0.Page 247
Commissioning the HPCI

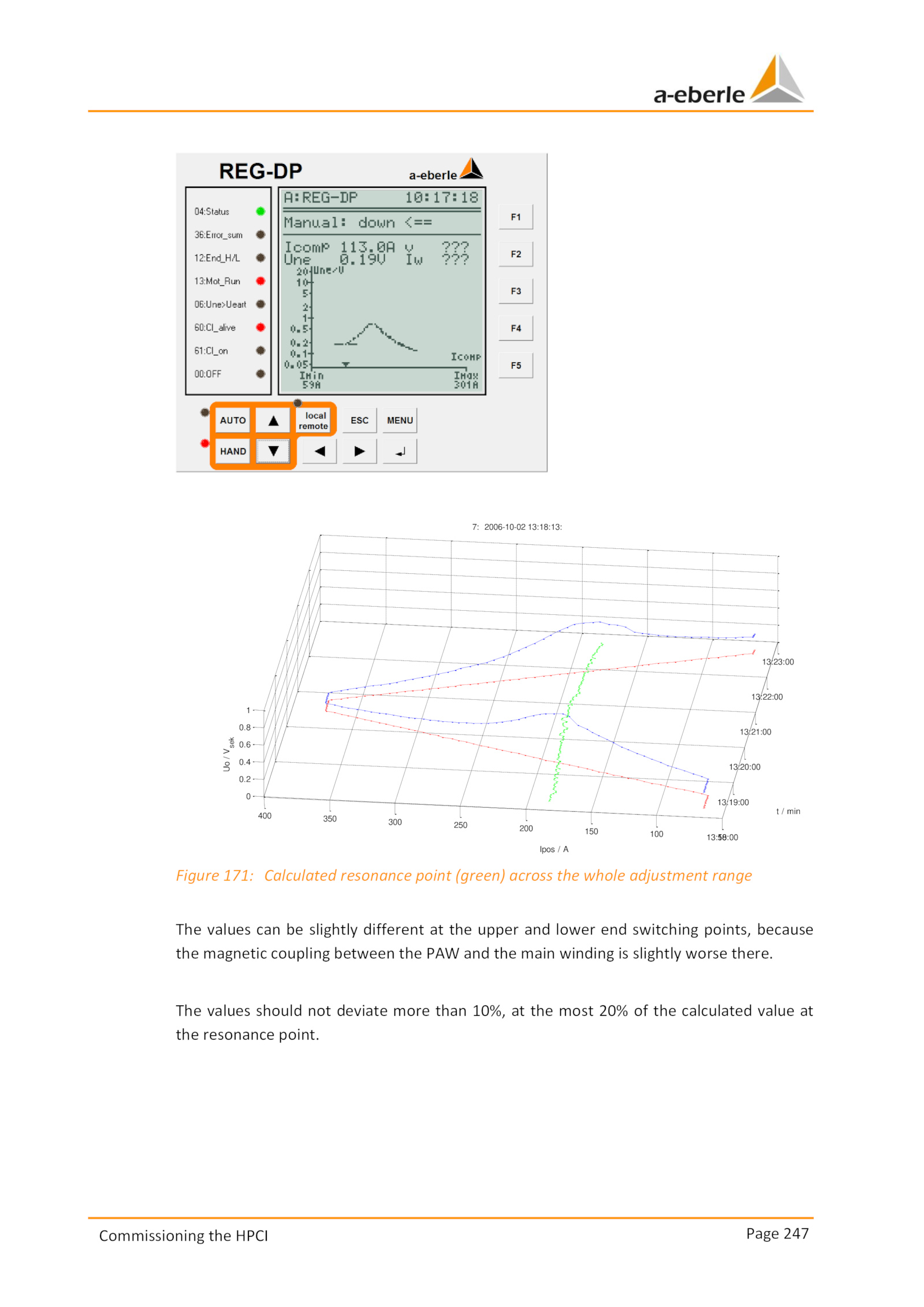

Figure 171: Calculated resonance point (green) across the whole adjustment range
The values can slightly different the upper and lower end switching points, because
the magnetic coupling between the PAW and the main winding slightly worse there.
The values should not deviate more than 10%, the most 20% the calculated value at
the resonance point.2
