3 m
1 m
3 m
Friskluft
Incomming Air
Frischluft
Afkast
Exhaust Air
Fortluft
Udsugning
Extract Air
Abluft
Indblæsning
Supply Air
Zuluft
Afløb

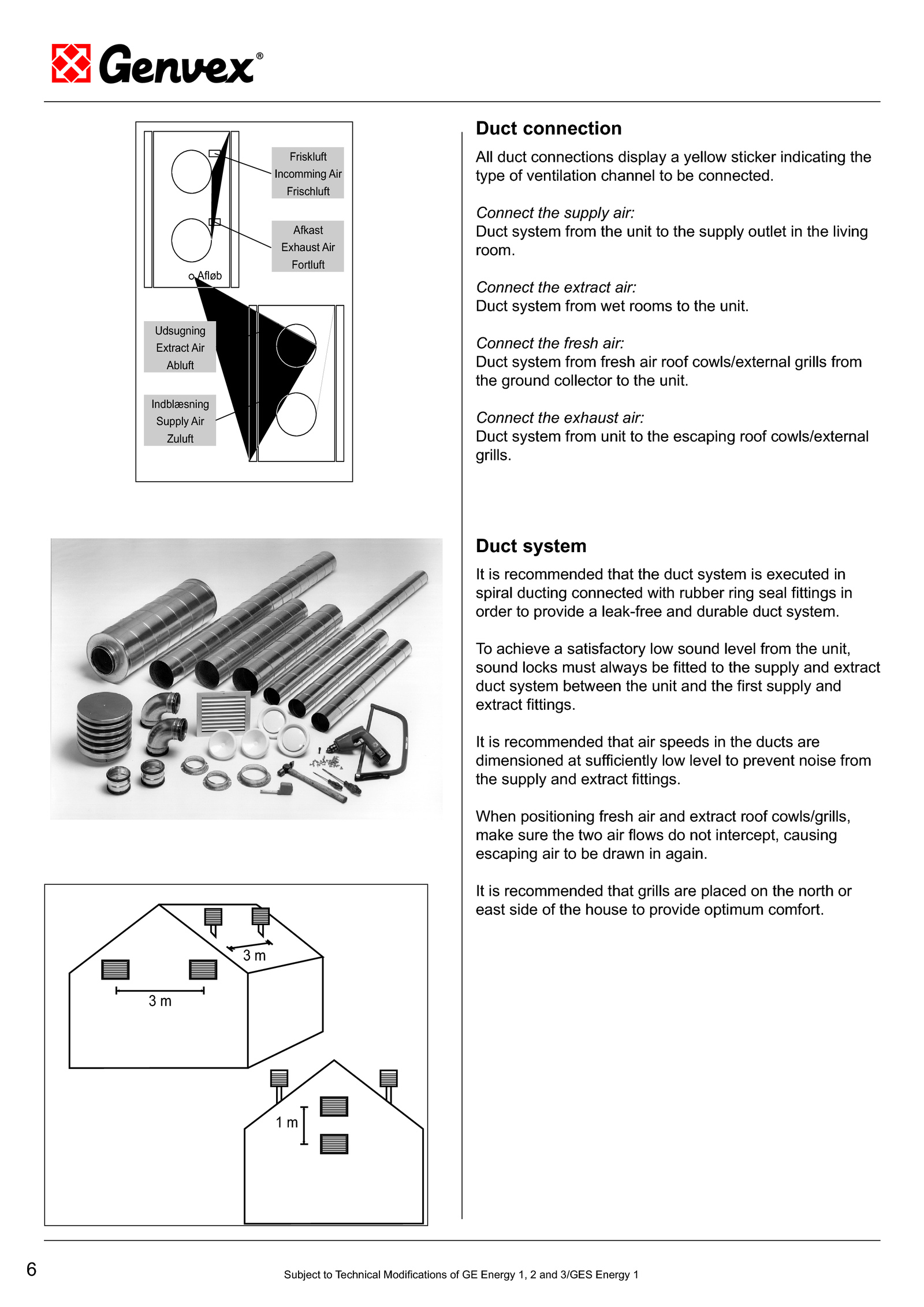

Duct connection
All duct connections display yellow sticker indicating the
type ventilation channel connected.
Connect the extract air:
Duct system from wet rooms the unit.
.
It recommended that grills are placed the north or
east side the house provide optimum comfort.
Connect the supply air:
Duct system from the unit the supply outlet the living
room.
It recommended that air speeds the ducts are
dimensioned sufficiently low level prevent noise from
the supply and extract fittings.
Connect the exhaust air:
Duct system from unit the escaping roof cowls/external
grills.
To achieve satisfactory low sound level from the unit,
sound locks must always fitted the supply and extract
duct system between the unit and the first supply and
extract fittings.
When positioning fresh air and extract roof cowls/grills,
make sure the two air flows not intercept, causing
escaping air drawn again.
Duct system
It recommended that the duct system executed in
spiral ducting connected with rubber ring seal fittings in
order provide leak-free and durable duct system.
Connect the fresh air:
Duct system from fresh air roof cowls/external grills from
the ground collector the unit
