• 12-pulse supply and machine converters
minimise distortion the supply voltage
and heating losses the rotor due to
harmonics
• matching transformer the converter
output
• changeover switchgear
Optional redundant components:
• thyristors per arm thyristor
bridge
• separate exciter converter for starting
• Cooling ancillaries:
Air-cooling: redundant fans
Water cooling: redundant pump
15
Left: Solid-state starter with
12-pulse converters and
matching transformer at
the output
Right: Solid-state starter
with 6-pulse converters for
the rated motor voltage
.ST

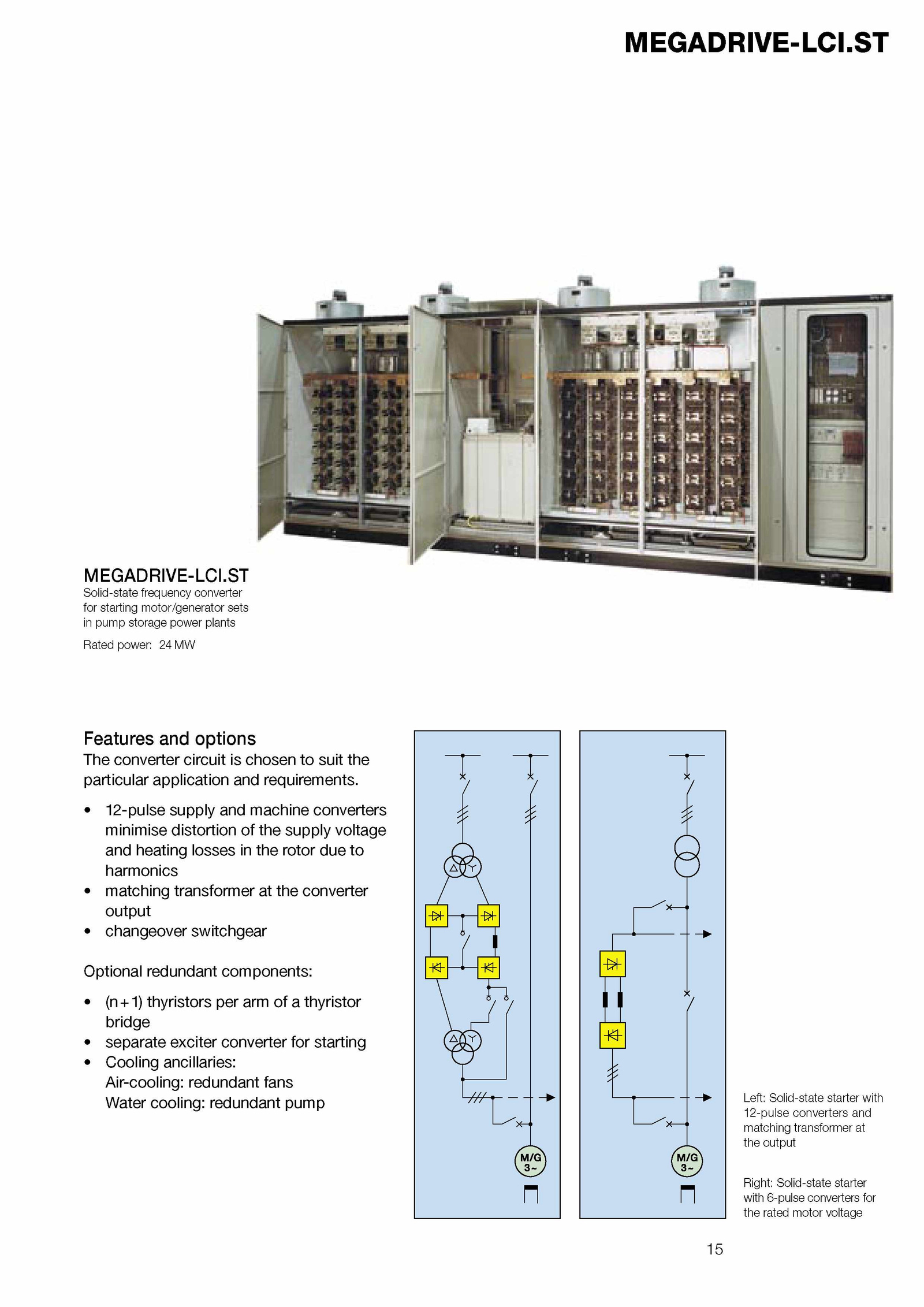

Solid-state frequency converter
for starting motor/generator sets
in pump storage power plants
Rated power: MW
Features and options
The converter circuit chosen suit the
particular application and requirements.ST
MEGADRIVE-LCI.MEGADRIVE-LCI
