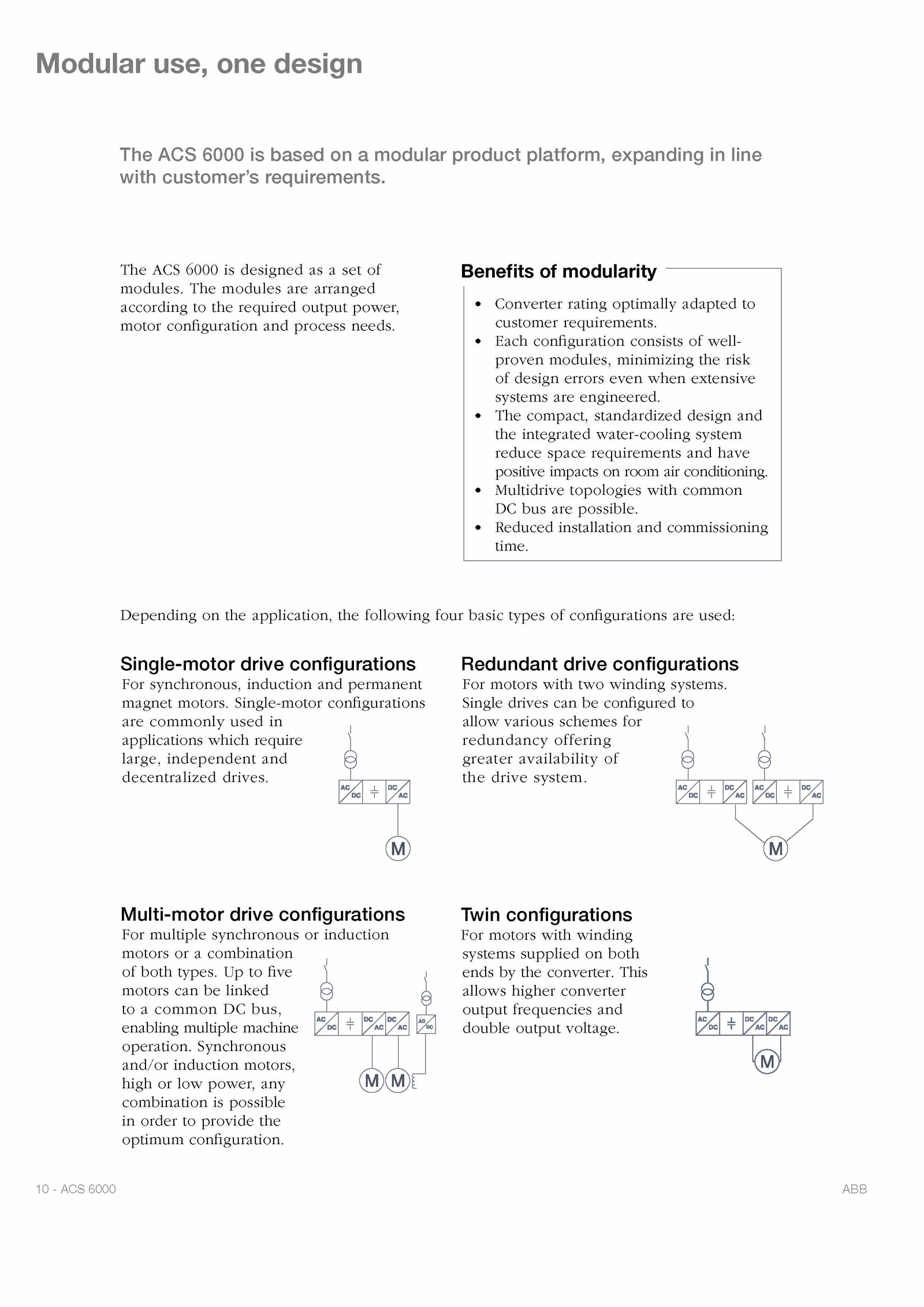

• Each configuration consists well- proven modules, minimizing the risk of design errors even when extensive systems are engineered. This allows higher converter output frequencies and double output voltage. Benefits modularity • Converter rating optimally adapted to customer requirements. Depending the application, the following four basic types configurations are used: Single-motor drive configurations For synchronous, induction and permanent magnet motors.Modular use, one design The ACS 6000 based modular product platform, expanding line with customer’s requirements. Synchronous and/or induction motors, high low power, any combination possible in order provide the optimum configuration. • The compact, standardized design and the integrated water-cooling system reduce space requirements and have positive impacts room air conditioning. The modules are arranged according the required output power, motor configuration and process needs. Single drives can configured to allow various schemes for redundancy offering greater availability of the drive system . 10 ACS 6000 ABB . Redundant drive configurations For motors with two winding systems. Single-motor configurations are com only used in applications which require large, independent and decentralized drives. • Multidrive topologies with common DC bus are possible. • Reduced installation and commissioning time. Multi-motor drive configurations For multiple synchronous induction motors combination of both types. The ACS 6000 designed set of modules. five motors can linked to com s, enabling multiple machine operation. Twin configurations For motors with winding systems supplied both ends the converter
