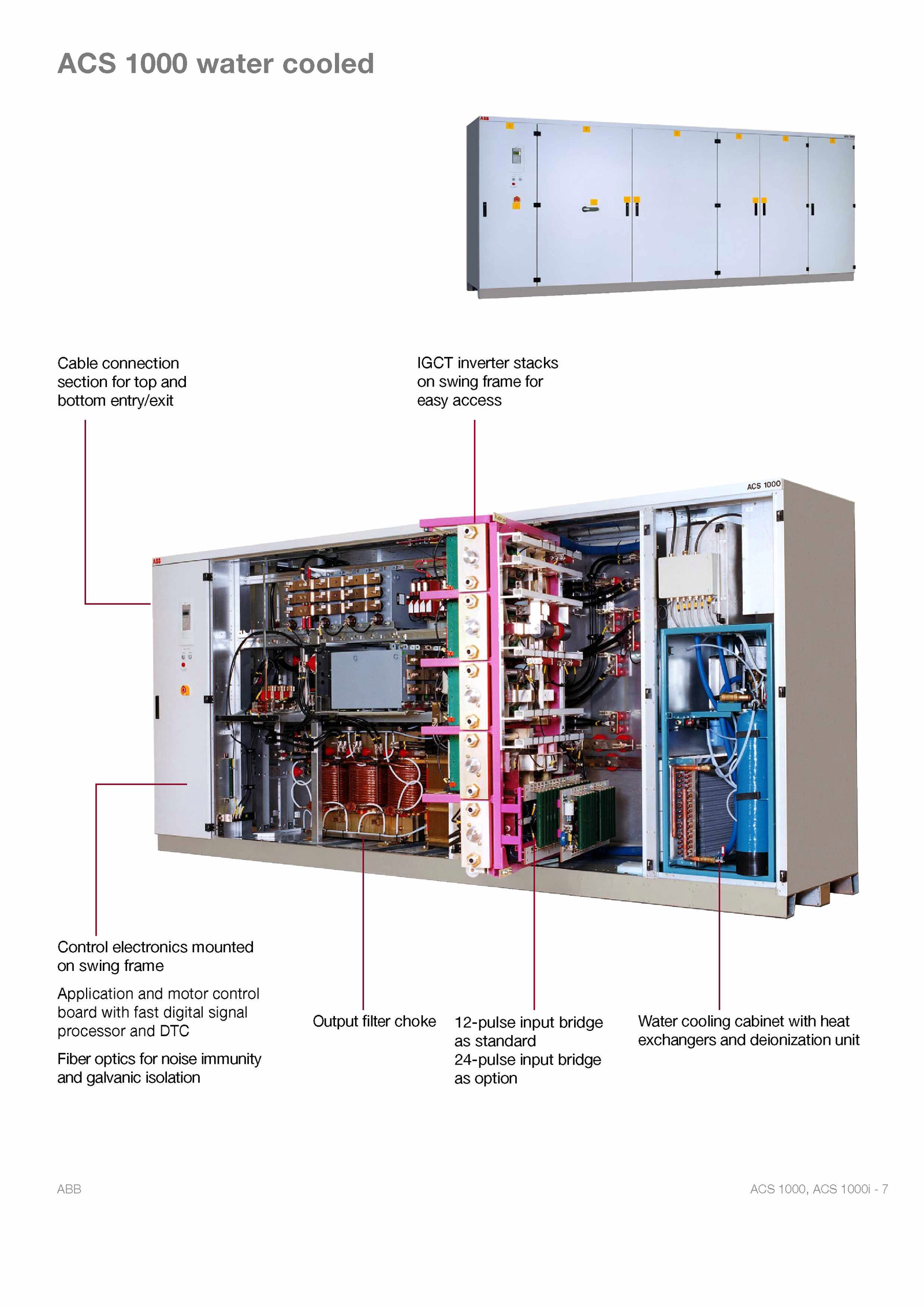

ACS 1000 water cooled
Cable connection
section for top and
bottom entry/exit
IGCT inverter stacks
on swing frame for
easy access
Control electronics mounted
on swing frame
Application and motor control
board with fast digital signal
processor and DTC
Fiber optics for noise immunity
and galvanic isolation
Output filter choke 12-pulse input bridge
as standard
24-pulse input bridge
as option
Water cooling cabinet with heat
exchangers and deionization unit
